Specifications
power source :
Electric
process :
essential oil distillation equipment
place of origin :
China
brand name :
Kinetic
voltage :
220V/380V according to client's local voltage
power(w) :
different as per your capacity
dimension(l*w*h) :
different as per your capacity
warranty :
1 Year
After-sales Service Provided :
Online support, Engineers available to service machinery overseas
Application :
suitable for all kinds of aromatic plants
Type :
distillation, small scale essential oil distillation machine
purity of oil :
very pure
Usage :
essential oil or hydrolat
Oil yield :
different as per your raw material
Material :
SS304, SS316
Key word :
essential oil filling machine
Capacity :
100L
Advantage :
portable and removable
Certification :
CE ISO SGS
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops
Condition :
New
Weight :
different as per your capacity
Packaging Details :
Poly wood package for sea freight .
ylang essential oil extraction nutmeg frankincense essential oil distiller machine
Port :
shanghai
Supply Ability :
700 Set/Sets per Month Ginger essential oil processing machine
Price :
CN¥56,358.12-92,485.12/sets
Description

ylang essential oil extraction nutmeg frankincense essential oil distiller machine

Product introduction

KINETIC brand,essential oil steam distillation,advanced and Continuously improving .We had specialized in essential oil extracting technology and equipment for more than 30 years,serviced for thousands of customers all over the world.we hope to bring customers extraordinary experience and sincerely hope to serve you.

100L Capacity Ylang Essential Oil Extraction Nutmeg Frankincense Essential Oil Distiller Machine for Different Capacities

Application of essential oil distillation equipment:

This essential oil distillation equipment is popular,famous,advanced and with top quality in production of Chinese medicines,health products,biological drugs,cosmetics and food .This essential oil Distill equipment uses technology and chemical separation,can extract plant components efficiently by steam distillation , have good effect in collecting essential oil from plants.

100L Capacity Ylang Essential Oil Extraction Nutmeg Frankincense Essential Oil Distiller Machine for Different Capacities

Main advantage of essential oil distillation equipment

(1)By steam-distillation to reach the extraction of essential oils.
(2)Easy operation. One people can operate this machine easily .
(3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100℃ high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be ore faster.
(4)Compact structure.It covers only about 1.5 square meter.

100L Capacity Ylang Essential Oil Extraction Nutmeg Frankincense Essential Oil Distiller Machine for Different Capacities

Oil quality

100L Capacity Ylang Essential Oil Extraction Nutmeg Frankincense Essential Oil Distiller Machine for Different Capacities

ModelLSZL-0.01
Distillation kettle volume L100
Kettle inside design pressure Mpa0.09
Heating area m20.03
C ondenser system m2 (condenser +cooler)0.87
Feed port diameter(mm)196
Oil-water separator(fermentor)L8
Equipment floor area(mm)Length950
Width650
Height2100
E vaporation capacity (kg/h)10


Machine Structure

The device consists of distillation kettle, material basket, jacket heating layer, insulation layer, demister, condensing tower,re-distillation column, rectifier, oil-water separator, Electric steam

boiler, filter and other related pipelines composition.

1, Distillation equipment are made of S30408 stainless steel, equipment, surface polishing Ra ≤ 0.6μm, outer surface matte treatment Ra ≤ 0.8μm, to ensure that no health dead ends, meet GMP requirements.

2, Include control box, manhole, cleaning ball, the water inlet, depending on the light mouth, sight glass, spare mouth, pressure gauge interface, thermometer interface, return port, outlet, through steam mouth and other related fittings.

100L Capacity Ylang Essential Oil Extraction Nutmeg Frankincense Essential Oil Distiller Machine for Different Capacities

Flow Chart

100L Capacity Ylang Essential Oil Extraction Nutmeg Frankincense Essential Oil Distiller Machine for Different Capacities

ModelMain parameters

100L

1, Distillation kettle: Max volume 150L, effective volume 100L, material basket volume 80L, use jacket heating and steam direct heating, heat exchange area more 1m2

Kettle inside: design pressure: 0.09Mpa, working pressure: normal pressure; design temperature:120℃,work temperature≤100℃.Working medium:water;

Jacket layer inside: Material Aluminium silicate, thickness 50mm

Slag discharge door:Manual slag door, DN100;

Insulation layer: Material Aluminium silicate, thickness 50mm

2, Demister: Size Φ102×500, clamping band quick connect installation, demister to facilitate cleaning.Meet the GMP requirements.

3, Condensing tower: Vertical condenser. Heat transfer area is greater than 2m2.

Pipeline: designed pressure: normal pressure;working pressure: normal

Pressure; design temperature: 100℃, work temperature≤100℃.

Working medium:Secondary steam. Length: Φ25×2;

Shell: designed pressure: 0.3Mpa,working pressure: normal pressure;

design temperature: 80℃,work temperature: 15~30℃.

Working medium: cooling water.

4,Pure dew storage tank: 304 stainless steel production, volume 25L.

5, Oil-water separator: the special oil-water separator, stainless steel

tank, glass as the cup, tank volume is 30L.

6, Filter: 120 mesh filter, flow 2.0m3 / h, material for the S30408.

7, Electric steam boiler: 380v, 50Hz, adjustable 6-18kw, steam

temperature: 120℃/100℃, steam production: 26kg/h,

working pressure: 0.4 ~ 0.6MPa, cable cross-sectional area: 10m2,

water pressure: 0.4MPa.

8, Accessories: S30408 stainless steel bracket, a thermometer, a pressure gauge, a mirror.

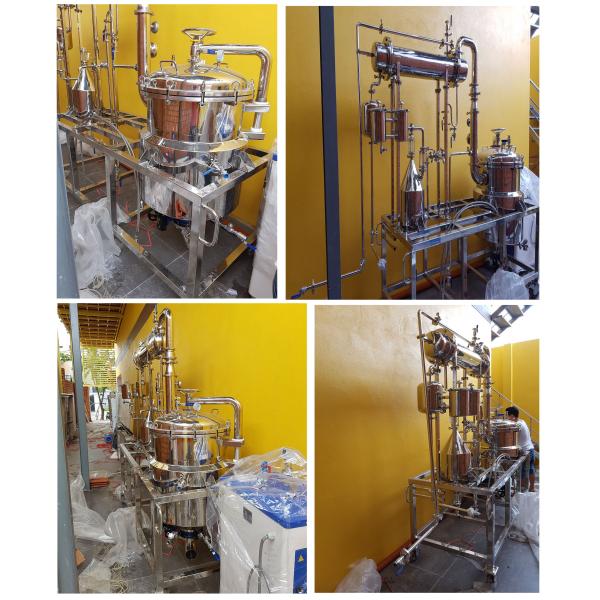

Detailed show
100L Capacity Ylang Essential Oil Extraction Nutmeg Frankincense Essential Oil Distiller Machine for Different Capacities

Raw material

FlowersRose; jasmine; lavender; chamomile; ylang ylang; geranium; neroli;
clary sage;achillea millefolium; osmanthus; peony; marigold;l aurel;
LeavesTea tree; eucalyptus; mint; patchouli; juniperberry; cypress; pine needles;
spearmint; basil.
RootsGinseng; ginger; angelica; garlic; vetivert; angelica root; mugwort;
borneol camphor.
GrassesRosemary; verbena; lemongrass; melissa; nardostachys; tarragon; caraway;
dill; valerian; houttuynia; wintergreen; evening primrose.
WoodSandalwood; cedar wood; rosewood; Birch; holly; camphor;
melaleuca; sassafras.
ResinsFrankincense; myrrh; benzoin; fir tree; amyris; Elemi
BarksCinnamon.
CitusBergamot; grapefruit; lemon; orange; lime; tangerine
SeedsCloves; almonds; cardamom; carrot seed; pomegranates; pepper;
capsicum ; fennel.

100L Capacity Ylang Essential Oil Extraction Nutmeg Frankincense Essential Oil Distiller Machine for Different Capacities

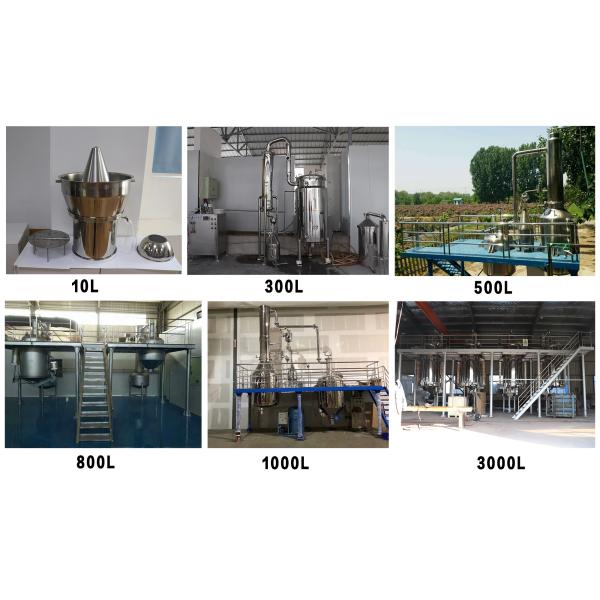

Other model

100L Capacity Ylang Essential Oil Extraction Nutmeg Frankincense Essential Oil Distiller Machine for Different Capacities

Packing and Delivering

100L Capacity Ylang Essential Oil Extraction Nutmeg Frankincense Essential Oil Distiller Machine for Different Capacities

Our customers

100L Capacity Ylang Essential Oil Extraction Nutmeg Frankincense Essential Oil Distiller Machine for Different Capacities

Our service

100L Capacity Ylang Essential Oil Extraction Nutmeg Frankincense Essential Oil Distiller Machine for Different Capacities

Certification

100L Capacity Ylang Essential Oil Extraction Nutmeg Frankincense Essential Oil Distiller Machine for Different Capacities
