Specifications
condition :
New
usage :
Cotton Seed Oil
type :
Cold & Hot Pressing Machine
automatic grade :
Automatic
production capacity :
98%-100%
place of origin :
China
brand name :
Kinetic
voltage :
380V/50HZ
dimension(l*w*h) :
2850*1850*3272mm
weight :
5000kg
warranty :
1 Year
key selling points :
Energy saving
Color :
Clients' Requirements
Raw material :
Soybean, Oil Seeds, Flax Seed etc.
Material :
Carbon Steel Q235 or Stainess Steel
Capacity :
8-12Tons/24hrs
Function :
Making Edible Oil
Name :
Screw Oil Press Machine
Product name :
Oli Press Machine
Application :
Screw Oil Expeller
Advantage :
Energy Saving, High Oil Yield
Item :
Industrial Oil Extractor
After Warranty Service :
Video technical support, Online support
Local Service Location :
None
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location :
None
Marketing Type :
Hot Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
motor, Engine
Certification :
CE,ISO
Packaging Details :
Plywood, international standard trade packing
sunflower oil machine south africa vegetable oil extraction machines cotton seed oil press machine germany
Port :
Qingdao,Shanghai,Wuhan
Supply Ability :
10 Set/Sets per Month flax seed oil press machine
Price :
CN¥65,028.60-108,381.00/sets
Description
Screw Oil Expeller for Oil Seeds Sunflower Oil Machine South Africa Vegetable Oil Extraction Machines Cotton Seed Oil Press Machine Germany
Product Description

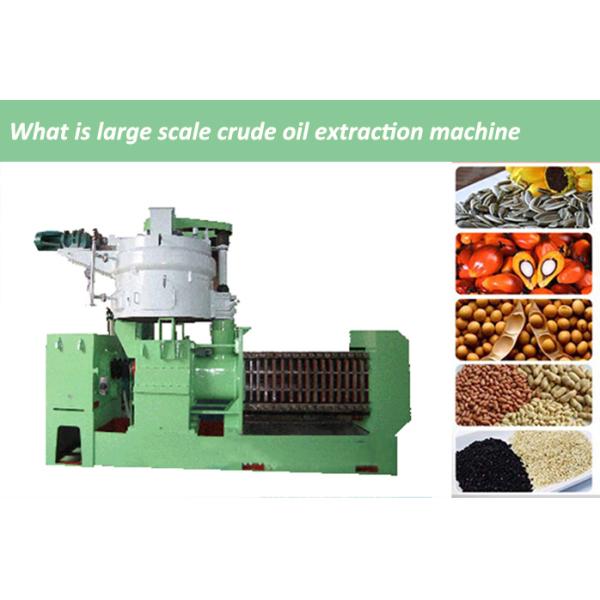

Large scale crude oil extraction machine is mainly used in the middle and large scale oil mill plants for vegetable and biodiesel oil processing. These large oil presses are generally divided into two kinds: oil press for hot pressing, and low temperature oil press for cold pressing. The large scale oil press extraction machines we supply is suitable for extraction of vegetable oils from oil bearing seeds and nuts, such as rapeseeds, grounnut, sesame seeds, cottonseeds, soybean seeds, corn germ, copra, sunflower seeds, etc.
Screw Oil Expeller for Oil Seeds Sunflower Oil Machine South Africa Vegetable Oil Extraction Machines Cotton Seed Oil Press Machine Germany
1. Magnetic separation: Clearing the iron impurity which might be in the seed. Since during the process, the iron impurity will be harmful to the machines.
2. Cleaning: This parts have different size cleaning sieves toseparate the different impurities. Through this part, most of the impurities are removed out of oil seeds.
3. Crusher: Because of the big size of oil seeds, the oil seeds are necessary to be crushed to small pieces.
4. Cooker: This machine can adjust the moisture content of the oil seeds. It’s also good for the pressing and oil extraction process.
5. Pressing: This machine is used to extract oil out of oil seeds.Finally,the crude oil needs to be refined to get refining oil, after degumming, deacidification, decoloration, dewaxing,deodorization.
Crude cotton oil → degumming ,deacidification→ decolorization →deodorization → refined cotton oil.

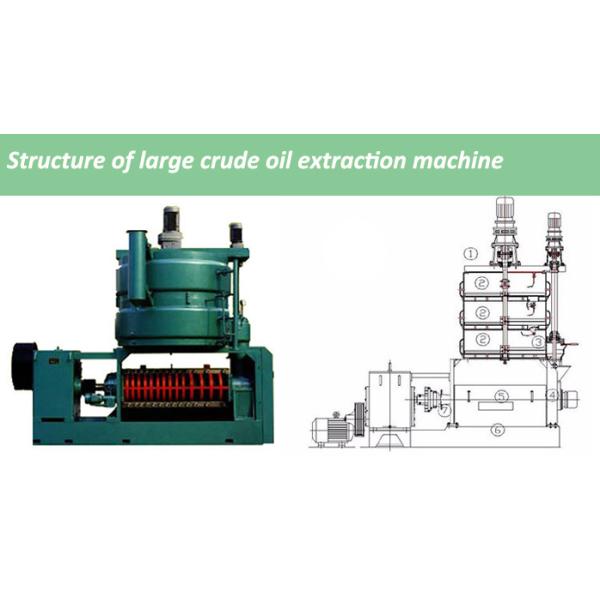

Product Structure
Screw Oil Expeller for Oil Seeds Sunflower Oil Machine South Africa Vegetable Oil Extraction Machines Cotton Seed Oil Press Machine Germany
Main Parts Of The Automatic Oil Press Machine:
1.screw shaft
2.feeder
3.pressing cage
4.oil pan
5.squeezing bolt
6.vacuum oil filter system
7.electric control system
8.heating ring

Operate Processing Of The Automatic Oil Press Machine:
1.stir-fring the seed
2.feed in the oil seed
3.pressing the seed in the pressing chest
4.oil drip on the oil pan from the squeezing bolt
5.then oil inflow the vacuum oil filter pan by the vacuum system
6.then pure oil come out of the filter
7.ready

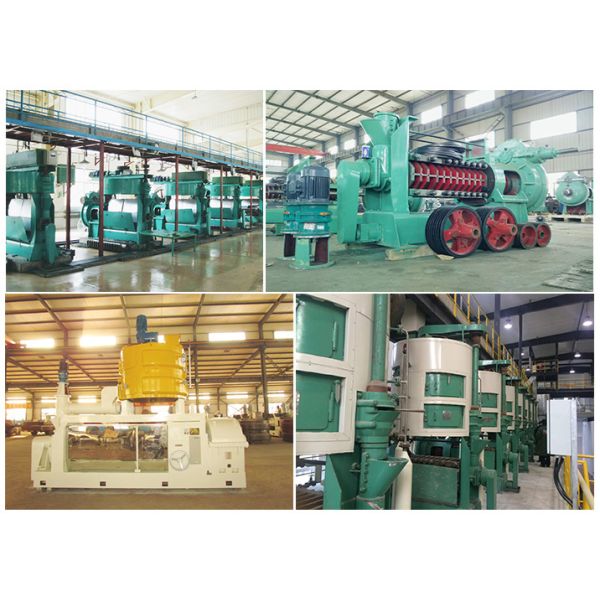

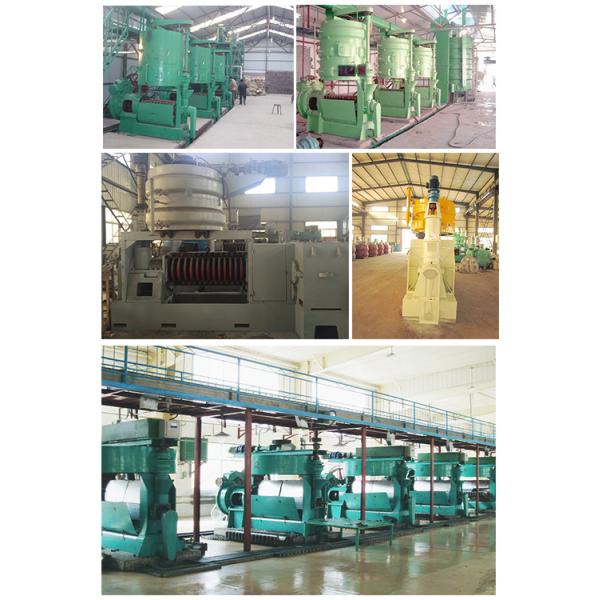

Product Show
Screw Oil Expeller for Oil Seeds Sunflower Oil Machine South Africa Vegetable Oil Extraction Machines Cotton Seed Oil Press Machine Germany
Screw Oil Expeller for Oil Seeds Sunflower Oil Machine South Africa Vegetable Oil Extraction Machines Cotton Seed Oil Press Machine Germany
Screw Oil Expeller for Oil Seeds Sunflower Oil Machine South Africa Vegetable Oil Extraction Machines Cotton Seed Oil Press Machine Germany
Specification
The large screw crude oil extraction machine (oil expeller) is designed to use physical mechanical pressing way to press oil out from the oil seeds. Single machine capacity 10-200TPD.

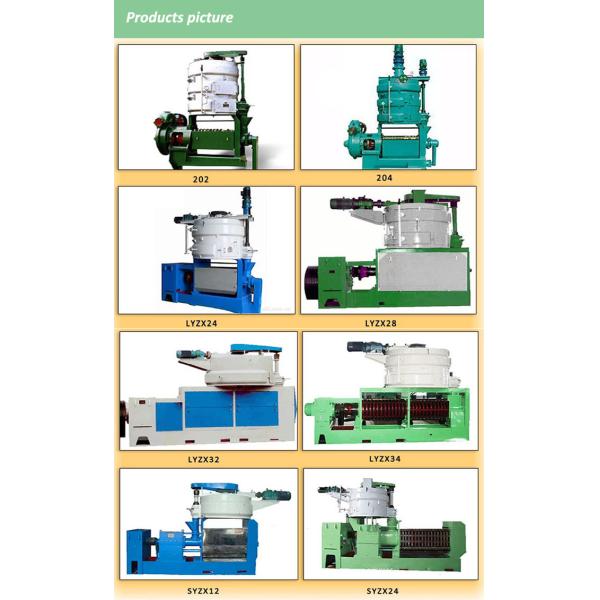

Model
Capacity
oil content in cake
Motor power(kw)
202
40-50 TPD
less than 13%
30
204
75-80 TPD
15-18%
30
LYZX24
20-25 TPD
10-19%
30+5.5+3
LYZX28
40-60 TPD
15-19%
45+11+1.5
LYZX32
80-100 TPD
15-19%
90+.5+1.5
LYZX34
150-180 TPD
11-15%
160
SYZX12
4-6 TPD
4-6.5%
18.5+1.1
SYZX24
Hot pressing 80-100 TPD
10-17%
55+7.5
Cold pressing 40-50 TPD
5-7%
Our Advantages
1. Energy Saving:The electric power can be reduced by 40% under the same output. For example, the machine can save 6 kilowatt at an average of one hour. In that case, it could save about 30 RMB per day.
2. Labor Saving:60% labor can be saved under the same output. One or two person can organize the production. It can save about 40 RMB of labor cost every day.
3. Widely Usage:The machine is multi-function. It can process more than 20 kinds of oil crops, such as, peanut, linseed, sesame,rapeseeds, sunflower, cottonseeds, soybean, etc.
4. Oil Pure:Vaccum filter can filter the residue and ensure the oil quality. The oil can meet the standard of health quarantine.
5. Small Area Covering: 10 ~ 20 m2can meet the production needs.
Screw Oil Expeller for Oil Seeds Sunflower Oil Machine South Africa Vegetable Oil Extraction Machines Cotton Seed Oil Press Machine Germany
Screw Oil Expeller for Oil Seeds Sunflower Oil Machine South Africa Vegetable Oil Extraction Machines Cotton Seed Oil Press Machine Germany
1.Large processing capacity
2.Combined Steaming & Cooking
3.Lower energy consumption
4.Automatic and Continuous Operation
5.Flexible production
6.Higher quality oil and cake & Steady oil yield
7.Perfect Construction, Simple Control and Durable service
Screw Oil Expeller for Oil Seeds Sunflower Oil Machine South Africa Vegetable Oil Extraction Machines Cotton Seed Oil Press Machine Germany
Packing & Delivery
Screw Oil Expeller for Oil Seeds Sunflower Oil Machine South Africa Vegetable Oil Extraction Machines Cotton Seed Oil Press Machine Germany
Company Profile
Screw Oil Expeller for Oil Seeds Sunflower Oil Machine South Africa Vegetable Oil Extraction Machines Cotton Seed Oil Press Machine Germany
Screw Oil Expeller for Oil Seeds Sunflower Oil Machine South Africa Vegetable Oil Extraction Machines Cotton Seed Oil Press Machine Germany
Screw Oil Expeller for Oil Seeds Sunflower Oil Machine South Africa Vegetable Oil Extraction Machines Cotton Seed Oil Press Machine Germany
Screw Oil Expeller for Oil Seeds Sunflower Oil Machine South Africa Vegetable Oil Extraction Machines Cotton Seed Oil Press Machine Germany
FAQ
Q1: What is the Material?
A1: Stainless steel or carbon steel.
Q2: When can I get the price?
A2: Within 24 hours, if urgent, please directly call us.
Q3: Whether the machine price can be more discount?
A3: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately
give you a little discount.
Q4: How to ask quotation?
A4: Please note us what tpye of raw seeds , and how many tons of raw seeds you want to treat per day, then we will send you
quotation as soon as we can.
Q5:Does the screw oil press need to be heated?
A5:Yes, it does. Preheat with dry oil cake for 30 minutes before feeding seeds normally.
Q6: How many people are required to operate this screw oil press?
A6: 1-2 people can operate.
