3KG Thailand Coconut Oil Cold Press Machine Manual Oil Expeller Small Manual Hydraulic Oil Press 98%-100%

Specifications

max capacity :

2kg/h

condition :

New

usage :

Sesame Oil,peanut oil,soybean oil

type :

Cold & Hot Pressing Machine

automatic grade :

Automatic

production capacity :

98%-100%

place of origin :

China

brand name :

Kinetic

voltage :

380V/50HZ

dimension(l*w*h) :

270*260*350*60mm

weight :

3KG

warranty :

1 Year

key selling points :

Easy to Operate

oil type :

Flax Seed Oil, Soybean Oil, Rap seed oil, Tea Seed Oil, Basil oil, SESAME OIL, Pinenut oil, sunflower seed oil, Almond Oil, walnut oil, Peanut Oil, Coconut Oil, OLIVE OIL

Name :

manual oil press machine

Raw material :

walnut,sesame,tea seed,sunflower seed,peanut ect

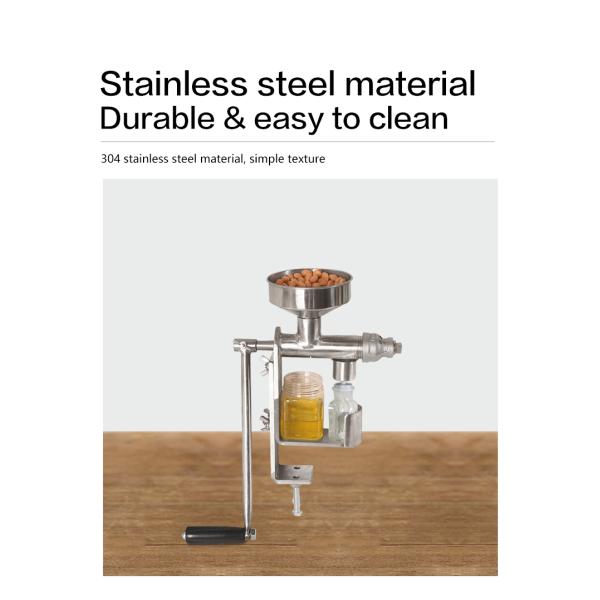

Material :

Stainless Steel 304

Function :

Making Edible Oil

Color :

Custom-made

Advantage :

Energy Saving

Product capacity :

1-2kg/h

Warranty :

12 Months

Package size :

42*8*32cm

Automatic Grade: :

Manual

After Warranty Service :

Video technical support, Online support

Local Service Location :

None

After-sales Service Provided :

Video technical support, Online support

Applicable Industries :

hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

Showroom Location :

None

Marketing Type :

Hot Product 2019

Machinery Test Report :

Provided

Video outgoing-inspection :

Provided

Warranty of core components :

1 Year

Core Components :

motor

Certification :

CE ISO

Packaging Details :

plywood,international standard trading packing
thailand coconut oil cold press machine manual oil expeller small manual hydraulic oil press

Price :

CN¥650.29/sets 1-1 sets

Description

Products Description

Operation of manual oil extractor :

Make sure no impurities in the material before pressing.

At the beginning of pressing, oil flowing from the terminal adjustment bolt is normal.

Loose the terminal adjustment bolt if the discharged cake is too dry and crank turning resistance is too big.
Tighten the terminal adjustment bolt if the discharged cake contains too much oil residual.

Heating of manual oil extractor :

To guarantee the oil output, the press cage should be heated for about 10 minutes. when the press cage temperature reaches 50-70°C, material can be put into inlet for pressing. The lamp remains heating during pressing as well.

Cleaning of manual small oil press :

Clean the oil press immediately after operation. Otherwise residual in the machine will get hard and affect next operation.

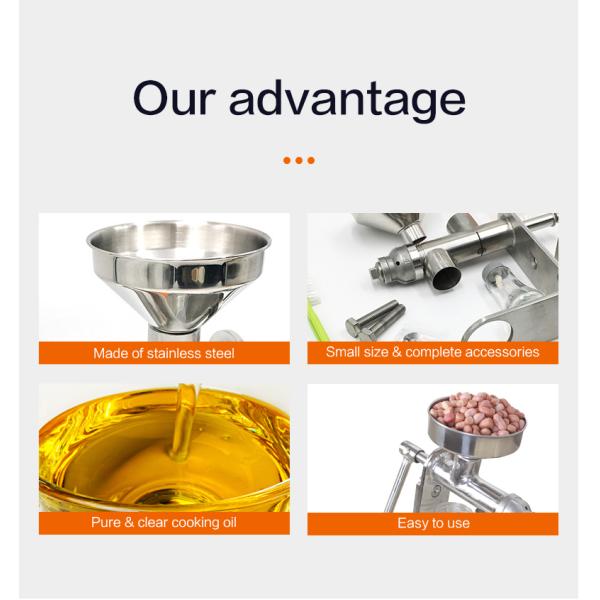

Our Advantages

Application

Suitable for most oil crops with oil content more than 25%, such as peanuts, sunflower seeds, rapeseed, sesame, walnut
kernels,etc.

Details Images

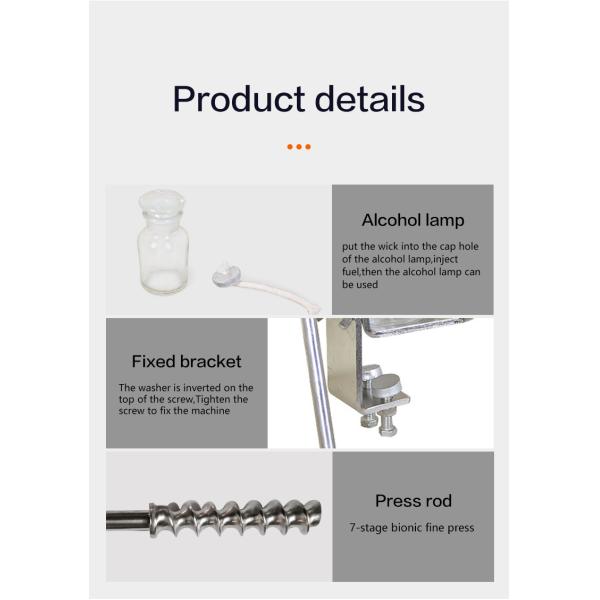

Components of manual oil extractor：

This machine consists of frame, press part, driver part and heating part etc. In view of environmental protection and recycling, material feeding/collecting equipment can be replaced with drink bottle, which is prepared by buyer.

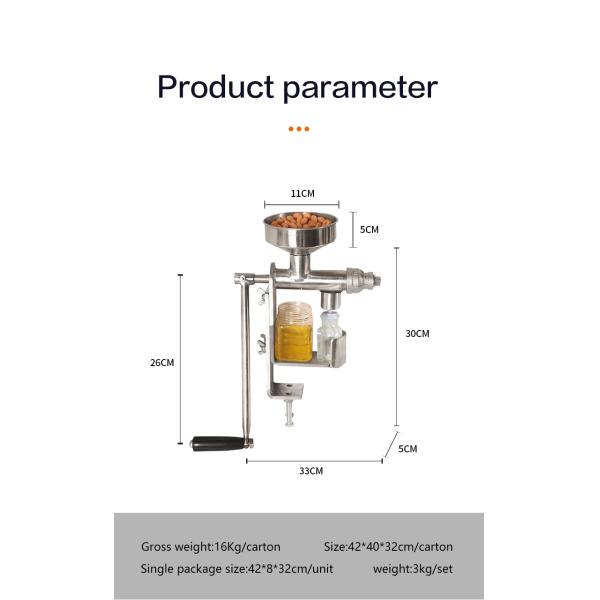

Product Paramenters

Product name	Manual oil press machine
material	Stainless steel 304
weight	3KG
Raw material	peanut,sesame,sunflower,soybean ,walnut ,etc
power	manual

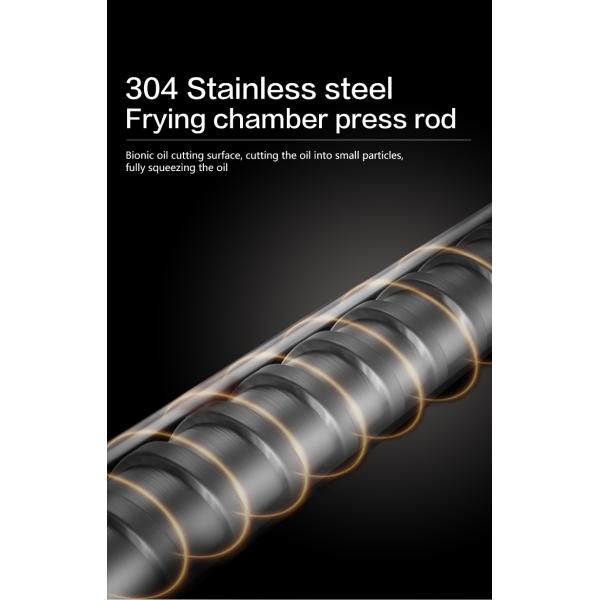

main parts	frame,press cage,screw shaft,crank ,etc
Packing size	270260350*60mm
color	red or at your request

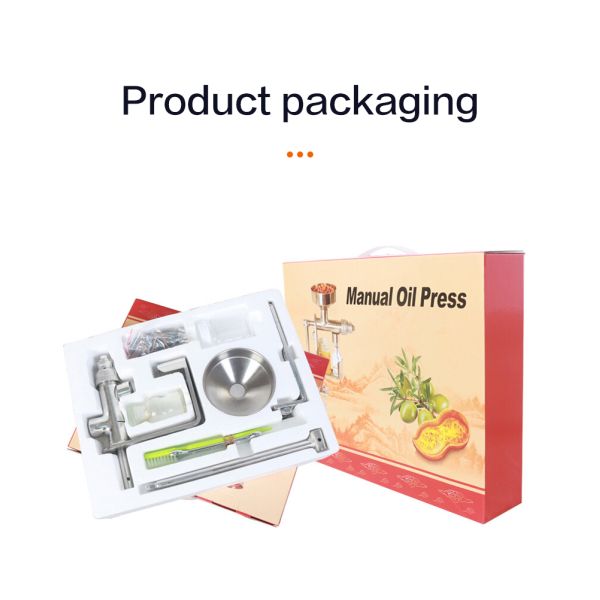

Product packaging

Assembly of manual oil extractor：

Before operation please fix the frame and make sure crank can be turned freely.

Lubricate washer with edible oil and insert on screw shaft from the small end.

Insert screw shaft in press cage.

Screw on press cage cap and screw on terminal adjustment bolt.

Attach crank arm to screw shaft and tighten the bolt.

Fill 80% fuel to the lamp bottle (kerosene or alcohol). Pass a 15cm wick through the washer. Leave 0.5cm of wick outside and put the longer end in the fuel bottle. Place washer at the bottle mouth. Place

the lamp under press cage. Secure the lamp with rubber band.

Recommend Products

Certifications

FAQ

Q1: How is the quality of your Home Use Mini Oil Press Machine/Sunflower Oil Extractor/Vegetable Seeds Oil Press?
A1: Our products are manufactured strictly according to national and international standard, and we take a test on every oil press machine before delivered out. We have got CE certification and all kinds of testing report; if you want please just ask us for it.

Q2: What is the warranty for your Home Use Mini Oil Press Machine/Sunflower Oil Extractor/Vegetable Seeds Oil Press ?
A2: Our products have the high quality, we can offer 12 months warranty. The time for the warranty is much longer than any other similar products.

Q3: Can you manufacture the special products according to customers?
A3: Of course the answer is YES. You can contact with us directly.

Q4: How can costumers be sure they can get the products on time?
A4: If we can not deliver the products during the ordered time, we can give back 100% your money.
