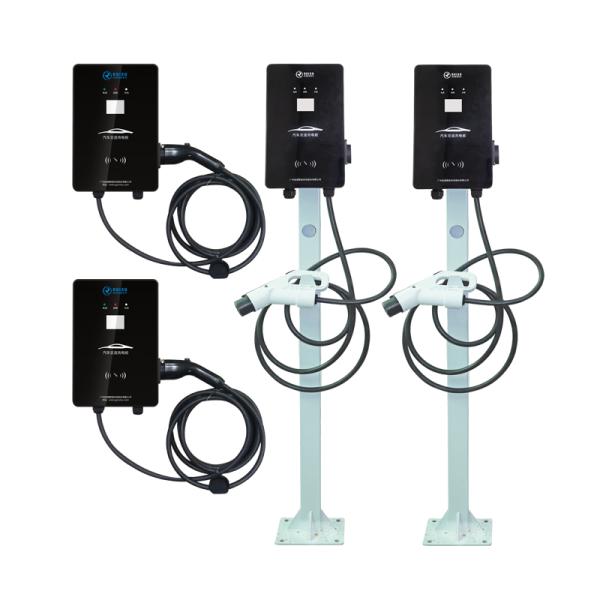

Single Phase AC EV Charger 10KW CCS1 Wall Mounted Lever 2 For Electric Vehicle
Single Phase AC EV Charger 10KW CCS1 Wall Mounted Lever 2 For Electric Vehicle
Specifications
Brand Name :
RUISU
Model Number :
RSAC220-10KW
Certification :
CE ISO
Place of Origin :
GUANGZHOU,CHINA
MOQ :
10
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1500 Pcs Per Month
Delivery Time :
20-30 DAYS
Packaging Details :
（Height*Width*Depth）250*150*400mm
Input Voltage :
Single-phase 215V±10%
Input Currency :
50A
supply frequency :
50/60 Hz
Output Voltage :
Single-phase 215V±10%
Output Power :
10KW
Output Currency :
50A
Size :
250*150*400（Height*Width*Depth）
Charging Gun :
1 gun（J1772）
Cable Length :
5m
Description

Single-Phase 10KW CCS1 Wall-Mounted Lever 2 America Standard AC EV Charger

Specifications:

Product Type 10KW AC Charger (Ameriacan Standard Version)
Product Model RSAC220-10KW
Dimension (H*W*D)(mm)
250*150*400
Height (mm) 1466mm high after mounted on the post
Display Mode LED Display
Input Voltage 220VAC, 1 phase + N+PE
Output Power (KW) 10
Input Frequency (HZ) 45~55Hz
Max. Output Current (A) 50
Length of Charging Gun (m) 5
Electric Leakage Protection (mA) 50
Human-machine Display 4.3" Color Screen
Charging Operation Swiping card / scanning code
Measuring and Accounting Time-sharing accounting
Running Indication Power supply, charging, fault
Heat Dissipation Control Natural cooling
Protection Function Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc
Charging Selection Self-provided, timing, quantitation, fixed fee, appointment etc.
Payment Method RFID card, WeChat Official Account, Alipay
Communication Interface CAN with standard configuration, Ethernet, RS485, RS232, GPRS
Protection Grade / Shell Material Outdoor IP54 / sheet metal shell
Optional Install the bracket when landing hanger
Product Introduction 1. 10KW intelligent AC charger is capable of running status monitoring, fault monitoring, charging measuring and accounting, remote control during charging and other functions;
2. Humanized operation: the charging, accounting and other operations can be realized on phone APP;
3. Reliable material: sheet metal shell is adopted to make it can be used outdoor and resist against complex climate And environment, with the waterproof and dust-proof grade up to IP54;
4. Safe and stable: it's capable of lightning protection, over-load, short-circuit, electric leakage protection;

Single Phase AC EV Charger 10KW CCS1 Wall Mounted Lever 2 For Electric Vehicle

After-sale Service:
1. Two years warranty for the whole body.
2. If any parts break during the period, it's free replacement.
3. Professional technical engineer support for installation&operation and communication connection assistance between your app and our OCPP platform.
Additional Options:
1. Customized cable length.
2. Customized charger connector.
3. Customized Box color and customized logo.

Factory Show

Single Phase AC EV Charger 10KW CCS1 Wall Mounted Lever 2 For Electric Vehicle

R&D and production

Single Phase AC EV Charger 10KW CCS1 Wall Mounted Lever 2 For Electric Vehicle

Produce Department

Single Phase AC EV Charger 10KW CCS1 Wall Mounted Lever 2 For Electric Vehicle

Using Applications

Single Phase AC EV Charger 10KW CCS1 Wall Mounted Lever 2 For Electric Vehicle
