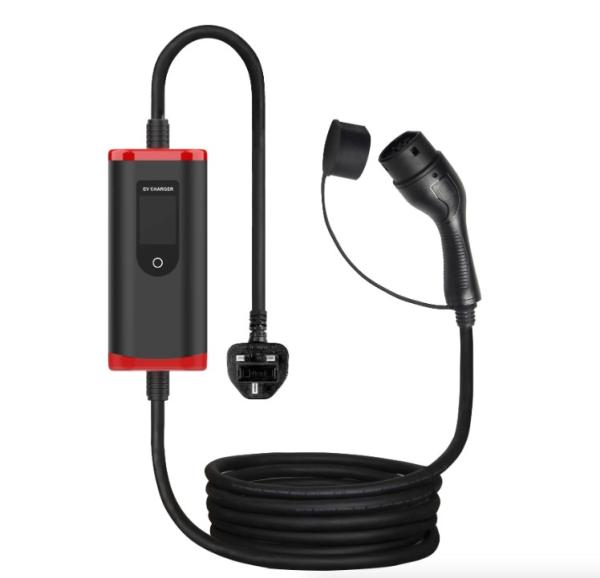

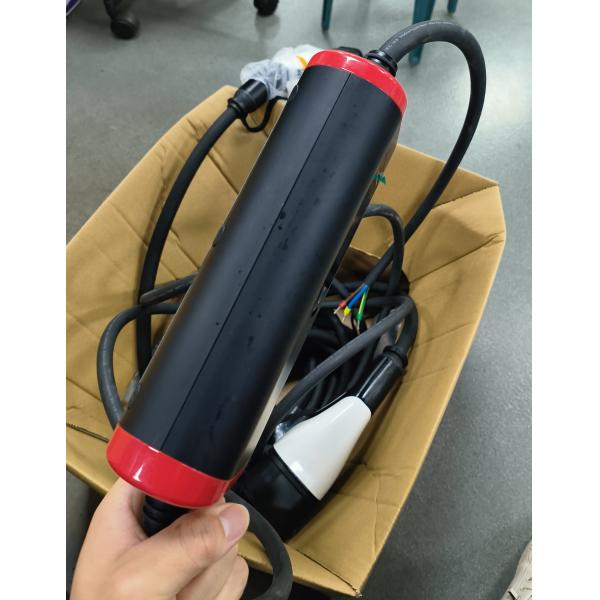

16A 32A 40A Electric Vehicles Charger 3.5kw 7kw 9kw EV Home Charger Portable
16A 32A 40A Electric Vehicles Charger 3.5kw 7kw 9kw EV Home Charger Portable
16A 32A 40A Electric Vehicles Charger 3.5kw 7kw 9kw EV Home Charger Portable
16A 32A 40A Electric Vehicles Charger 3.5kw 7kw 9kw EV Home Charger Portable
16A 32A 40A Electric Vehicles Charger 3.5kw 7kw 9kw EV Home Charger Portable
16A 32A 40A Electric Vehicles Charger 3.5kw 7kw 9kw EV Home Charger Portable
16A 32A 40A Electric Vehicles Charger 3.5kw 7kw 9kw EV Home Charger Portable
16A 32A 40A Electric Vehicles Charger 3.5kw 7kw 9kw EV Home Charger Portable
16A 32A 40A Electric Vehicles Charger 3.5kw 7kw 9kw EV Home Charger Portable
16A 32A 40A Electric Vehicles Charger 3.5kw 7kw 9kw EV Home Charger Portable
Specifications
Brand Name :
HONGJU
Model Number :
HJ-EV-PA-03
Certification :
ETL,TUV,CCC,ROHS,REACH
Place of Origin :
CHINA
MOQ :
200
Price :
To be negotiated
Payment Terms :
T/T
Supply Ability :
100000PCS Per Month
Delivery Time :
30-40 days
Packaging Details :
Each in PE bag, then in Pizza box, then 5 Pizza boxes into 1 master carton Deluxe pack: each in Oxford cloth with zipper & handle, easy for end users to keep
Protection rank :
IP65
LED indicator :
Yellow / Red / Green
Charging Speed :
Fast
Function :
Charging, Discharging
Product Name :
Portable EV Chargers
Protection :
Over-current, Over-voltage, Short-circuit
Description

3.5kw 7kw 9kw Electric Vehicles Charger 16A 32A 40A AC Home Use Portable EV Charge

Certificates & QC
ETL,TUV,CCC,ROHS,REACH
Protection rank
IP65 ICCB
Cable
IP55
LCD display
0.96’’ black and white screen
LED indicator
Yellow / Red / Green
RCD
30m A AC
Input power
110-240V
Charging cable
4.5M Type 1 J1772 (TPE Jacket)
ICCB size
L220XW100XH60(mm)
Start mode
plug & play
Operating temperature
-35℃ to 50℃

  • Both Level 2 and Level 1 EV charging supported - EVPal Portable EV Charger allows you to charge your vehicle at Level 2 fast charging with ajustable current 8/10/13/16/32A, it also allows you to charge your vehicle at level 1 with NMEA 5-15 adaptor when needed; Level 2 charging curent is up to 32Amp 240V, 7 KW Max., 8x faster than a normal 8A level 1 charger;
  • Heavy duty 6 AWG Cables - UL Recognized 6 AWG cable can handle max 32A charing current with no worry, it can reduce the voltage drop on the cable to deliver consistent energy to the vehicle.
  • With carrying bag - Light weight 9.2 lbs, take it in your vehicle with carrying bag, charge your vehicle anywhere anytime;
  • IP65 enclosure - IP65 enables the charger can protect against falling dirt, rain, sleet, snow, windblown dust, splashing water, and hose-directed low pressure water. Operating temperature -22 °F ~122 °F;
  • Easy to use- Easy to operate. Plug the SAE J1772 connector into your vehicle (need a J1772 to Tesla charging adapter (not included) if your vehicle is Tesla), and set up current 8-32A (you can set a delay time 1-8 hrs if needed);

Electrical Protection

Over current protection, Residual current protection, Ground protection, Surge protection

Over/Under voltage protection, Over/Under frequency protection, Over temp protection

16A 32A 40A Electric Vehicles Charger 3.5kw 7kw 9kw EV Home Charger Portable16A 32A 40A Electric Vehicles Charger 3.5kw 7kw 9kw EV Home Charger Portable16A 32A 40A Electric Vehicles Charger 3.5kw 7kw 9kw EV Home Charger Portable

How to make Order
Please send us an email to specify the item, quantity, color or other specification to place an order.
1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.
2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.
FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
