Specifications
Brand Name :
HONGJU
Model Number :
PB-02A-19-RF-APU
Certification :
ROHS,REACH
Place of Origin :
CHINA
MOQ :
100PCS
Payment Terms :
T/T, PAYPAL
Delivery Time :
20-25 days
Packaging Details :
Box Packing
Actuator Type :
Round
Circuit :
NO
IP Rating :
IP67
Material :
Metal
Mounting Type :
Panel Mount
Operating Temperature :
-25℃~+85℃
Description

19mm Metal Push Button Switch,On-Off, Illuminated, Dot Light, Latching Function, 1NO1NC, 5 Pin

HONGJU METAL PUSH BUTTONS PB-02A-19 SERIES

(INSTALLATION SIZE:19MM)

SINCE 1998 20+ YEARS MANUF ACTURE EXPERIENCE FOR METAL PUSH BUTTONS

Place of Origin
Guangdong, China
Brand Name
HongJu
Protection Level
IP65/IP67
Max. Current
5A
Max. Voltage
250vac
Drill hole diameter
19mm
Material
Stainless Steel
Contact Resistance
20m Max
Dielectric Strength
AC 1000V 1 Minute
Operating life
100000 times

About this item

  • Special note: there is a blue protective film on this button. If you need to use it, please tear it apart；Momentary Type: Push & Hold - ON, Release – OFF.

  • Mounting Hole Size: Φ19mm, Switch Rating: 2A / 36V DC / AC, Switch Combanation: 1NO.

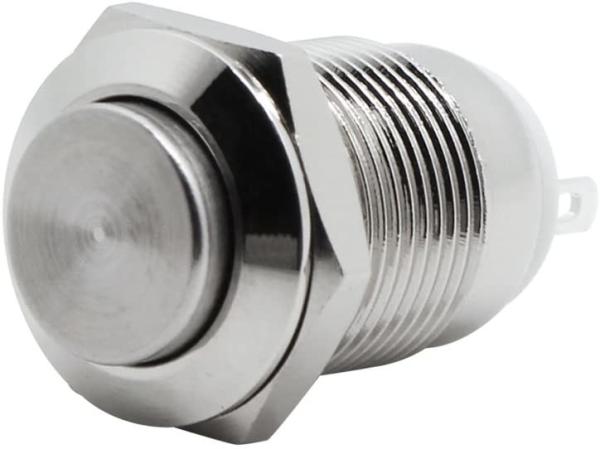

  • Head Shape: High Round;Screw clamp type terminals to make fitting very easy.

  • Enclosure Material: Stainless Steel;High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment. Great for electronmagnetic Starter, relay, Horn Button Switch,car modification, the host computer keys, buttons and instruction button appliances, PC Power Switch or any circuit controls on over 500,000 cycles,Also great for electronic DIY projects.

19mm Latching Metal Push Button Switches On Off Illuminated Dot Light

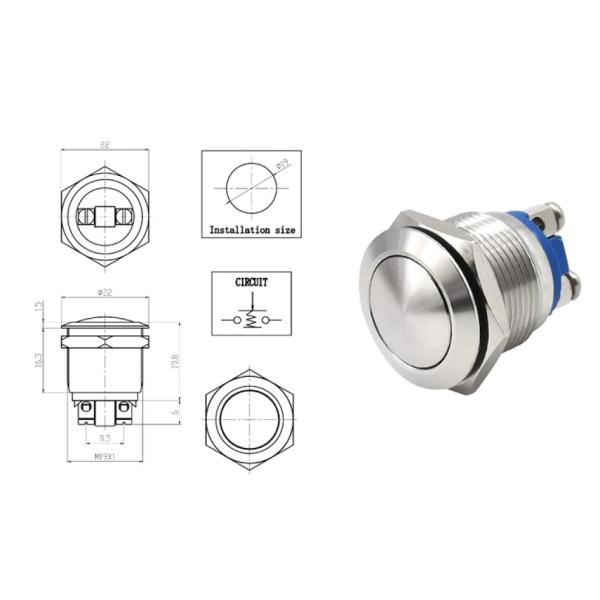

PB-02A-19MR(19-A2)Screw Terminals

19mm Latching Metal Push Button Switches On Off Illuminated Dot Light

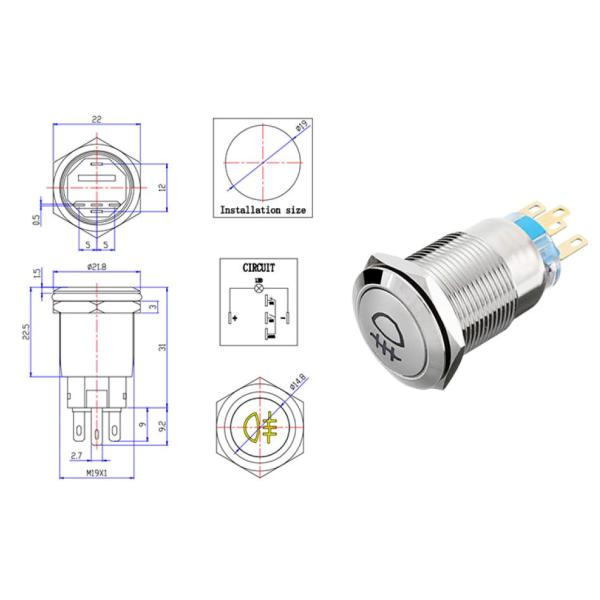

PB-02A-19-MF-AWO(19-C1)Rear Fog Lamp

19mm Latching Metal Push Button Switches On Off Illuminated Dot Light

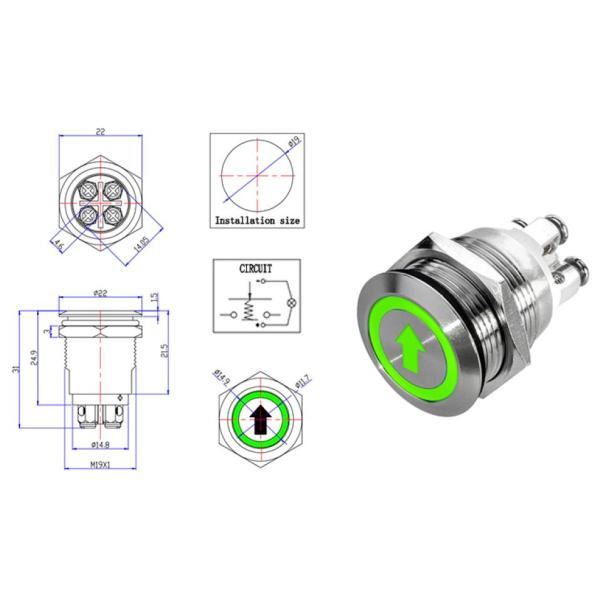

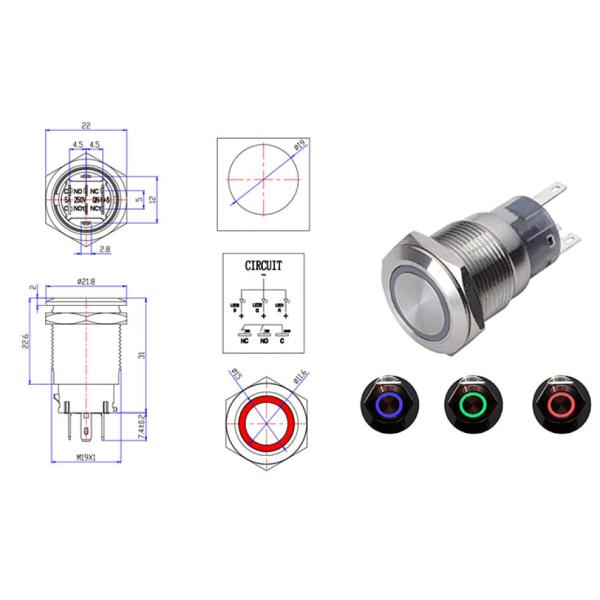

PB-02A-19-MF-BOX(19-H1)Screw Terminals with Ring Type LED

19mm Latching Metal Push Button Switches On Off Illuminated Dot Light

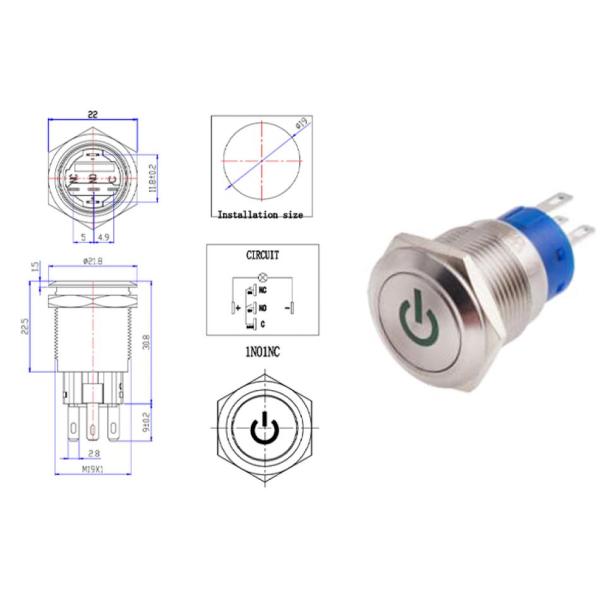

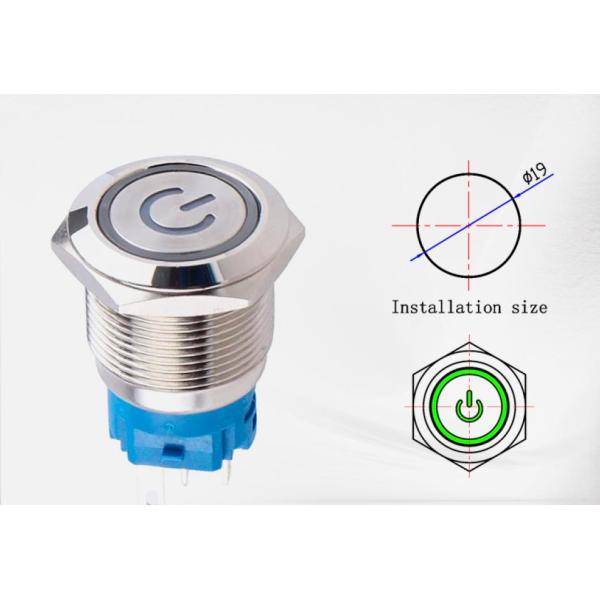

PB-02A-19-MF-XEX(19-C)Power Marks Type LED

19mm Latching Metal Push Button Switches On Off Illuminated Dot Light

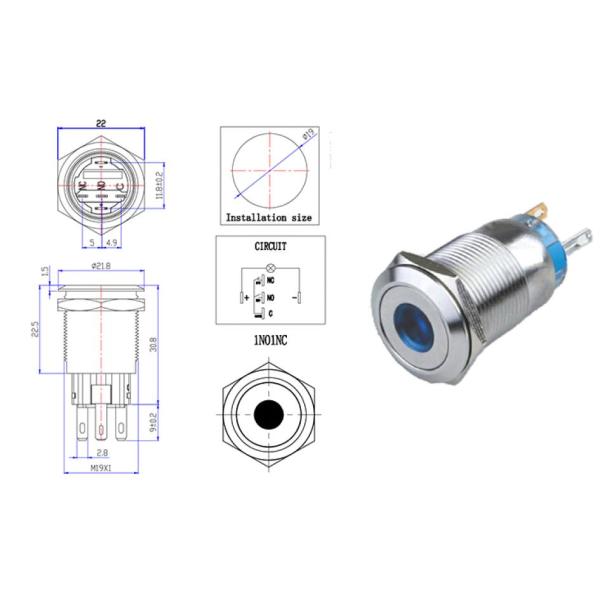

PB-02A-19-MF-XPX(19-C)Dot Type LED

19mm Latching Metal Push Button Switches On Off Illuminated Dot Light

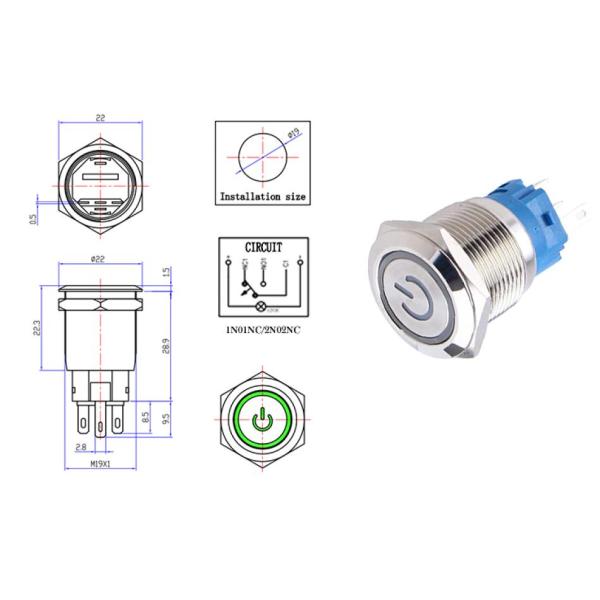

PB-02A-19-MF-XQX(19-C10)Power Marks + Ring Type LED

19mm Latching Metal Push Button Switches On Off Illuminated Dot Light

PB-02A-19-MF-XRGB(19S1)Tri-color RGB Common Cathode

19mm Latching Metal Push Button Switches On Off Illuminated Dot Light

How to make Order

Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.

FAQ

1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

2. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

3. How about your delivery time?

A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

4. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

6.What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
