Maxpower 60kW Rated Power 65kWH Capacity IP55 Protection Mobile EV Charger Portable Charging Station
Maxpower 60kW Rated Power 65kWH Capacity IP55 Protection Mobile EV Charger Portable Charging Station
Maxpower 60kW Rated Power 65kWH Capacity IP55 Protection Mobile EV Charger Portable Charging Station
Maxpower 60kW Rated Power 65kWH Capacity IP55 Protection Mobile EV Charger Portable Charging Station
Maxpower 60kW Rated Power 65kWH Capacity IP55 Protection Mobile EV Charger Portable Charging Station
Maxpower 60kW Rated Power 65kWH Capacity IP55 Protection Mobile EV Charger Portable Charging Station
Specifications
Brand Name :
Mckee Charging Cube
Model Number :
CLF-DC-26kWH
Certification :
CE
Place of Origin :
Luoyang, China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
30 work days
Packaging Details :
Wooden case packaging
Rated Power :
30kW
Capacity :
26kWH
Display screen :
7-inch touch screen
Output voltage range :
DC200V-750V(0-100A)
Charging gun :
GBT/CcS1/CCS2 optional (7m cable length)
Product size :
1300*710*980mm
Weight :
About 490kg
Protection level :
IP55
Description
Maxpower IP54 CCS2 DC 60kW EV Charger Portable Charging Station

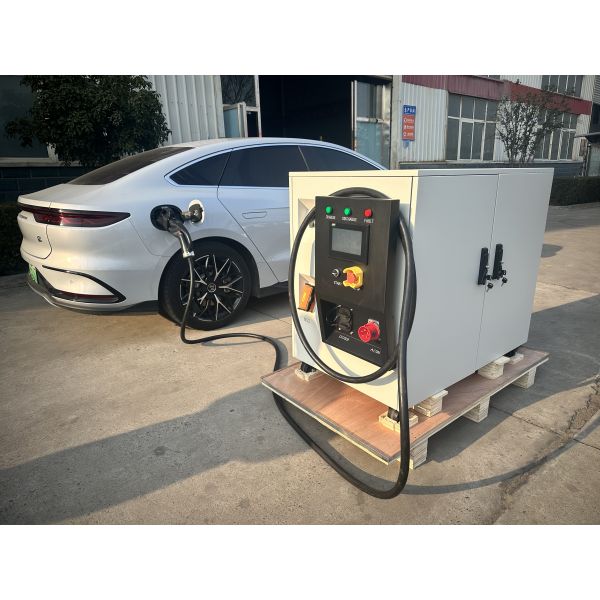

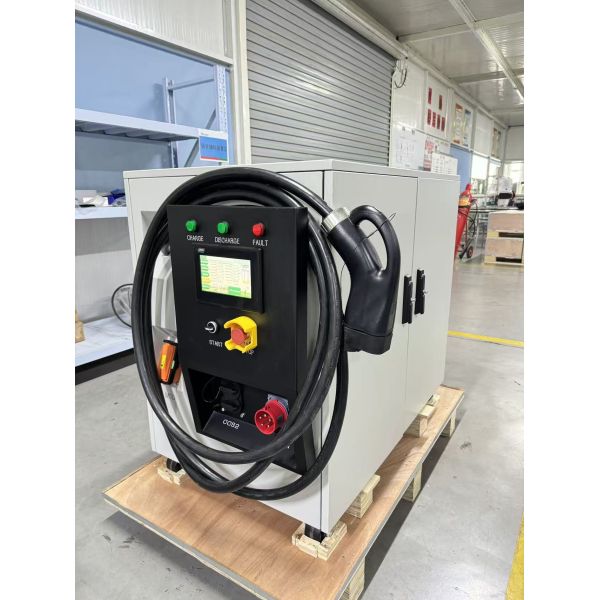

This portable charging system provides emergency charging for electric vehicles, offering short-term power solutions for new energy vehicles. The unit supports both AC and DC charging capabilities with a standard capacity of 26 kWh and output power of 30 kW, with options for custom larger capacities and output power configurations.
Maxpower 60kW Rated Power 65kWH Capacity IP55 Protection Mobile EV Charger Portable Charging Station Maxpower 60kW Rated Power 65kWH Capacity IP55 Protection Mobile EV Charger Portable Charging Station Maxpower 60kW Rated Power 65kWH Capacity IP55 Protection Mobile EV Charger Portable Charging Station Maxpower 60kW Rated Power 65kWH Capacity IP55 Protection Mobile EV Charger Portable Charging Station Maxpower 60kW Rated Power 65kWH Capacity IP55 Protection Mobile EV Charger Portable Charging Station Maxpower 60kW Rated Power 65kWH Capacity IP55 Protection Mobile EV Charger Portable Charging Station Maxpower 60kW Rated Power 65kWH Capacity IP55 Protection Mobile EV Charger Portable Charging Station
Flexible Shared Charging Stack
250A/600A/480-600-720-800-960kW configurations available
Technical Specifications
Parameter Specification
Electric Current 250A / 600A
Input Voltage 327V - 456Vac
Power Complete machine (0-2400A), Single circuit (0-25A), Super-charging (0-600A)
Output Voltage 50V - 1000V
Waterproof Level IP54
Input Frequency 45Hz - 65Hz
Work Temperature -30°C to 85°C (Derated output when temperature exceeds 50°C)
Power Factor ≥ 0.99
Operating Humidity 5% - 95% (No frost condensation)
Peak Efficiency ≥ 95.5%
Elevation ≤ 2000M
Output Routes Max 12 (Compatible with 6/8/10)
Safety Functions Short circuit protection, Leakage protection, Overcurrent protection, Emergency Stop
Material Quality PC Flame retardant
Usage Methods RFID card / Swipe card / GPRS / RS485 / CAN / Ethernet
Line Length 5M / 10M
Network Connection OCPP 1.6 protocol
Main Unit Dimensions 1355 * 995 * 2000 mm (L * W * H)
Terminal Dimensions 325 * 450 * 1430 mm (L * W * H)
Packaging Wooden Case
Key Features
  • Dual charging capability with both AC and DC support
  • IP54 rated for dust and water resistance
  • Wide operating temperature range from -30°C to 85°C
  • Multiple authentication methods including RFID and swipe cards
  • Advanced network connectivity with OCPP 1.6 protocol support
  • Comprehensive safety protection systems
  • High efficiency with ≥95.5% peak performance
  • Flexible power configurations for various applications
