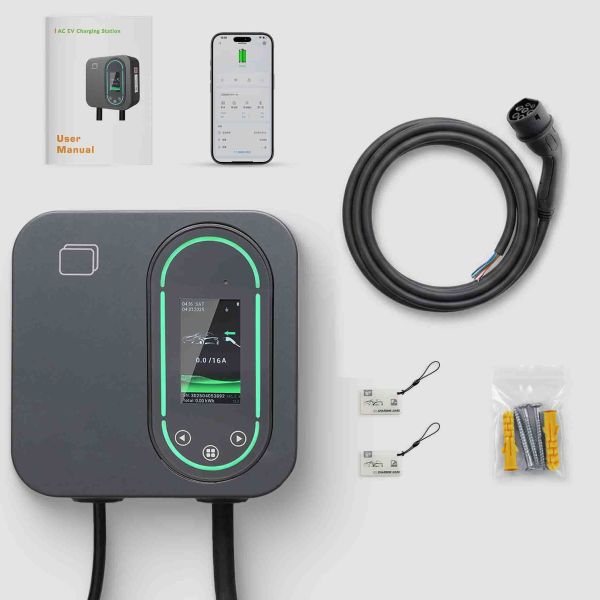

22kW EV Charger Solar Wallbox Station 32A 480V With Dynamic Load Balance Box
22kW EV Charger Solar Wallbox Station 32A 480V With Dynamic Load Balance Box
22kW EV Charger Solar Wallbox Station 32A 480V With Dynamic Load Balance Box
22kW EV Charger Solar Wallbox Station 32A 480V With Dynamic Load Balance Box
22kW EV Charger Solar Wallbox Station 32A 480V With Dynamic Load Balance Box
22kW EV Charger Solar Wallbox Station 32A 480V With Dynamic Load Balance Box
22kW EV Charger Solar Wallbox Station 32A 480V With Dynamic Load Balance Box
22kW EV Charger Solar Wallbox Station 32A 480V With Dynamic Load Balance Box
22kW EV Charger Solar Wallbox Station 32A 480V With Dynamic Load Balance Box
22kW EV Charger Solar Wallbox Station 32A 480V With Dynamic Load Balance Box
Specifications
product name :
22kW AC EV Charging Station
Brand :
ANS
Rated Current: :
32A
Certifications: :
CE, RoHs
Protection level: :
IP67
Application :
AC Home Charging
Connection :
WIFI, Ethernet
Control :
APP, OCPP, Bluetooth
Operating temperature: :
-30℃-+50℃
Warranty :
2 years
Brand Name :
ANS
Model Number :
ANS-AFWB-22kW
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
1000PCS/month
Delivery Time :
20-30days
Packaging Details :
180mm*180mm*70mm
Description
7kW- 22kW Home Charging Wallbox Station with Dynamic Load Balance Box
Product Description
Power Specification
AC Power Input Rating SAE Standard IEC Standard
AC Level 2 1-Phase 3-Phase
240V 220V ± 15% 380V ± 15%
AC Power Output Rating 3.5kW/16A 3.5kW/16A 11kW/16A
7kW/32A 7kW/32A 22kW/32A
10kW/40A N/A N/A
Rated Frequency 50/60Hz 50/60Hz 50/60Hz
Connector Type SAE J1772 (Type 1) IEC 62196-2 (Type 2)
User Interface & Control
Charging Control Plug and Play, RFID Card or App
Display Screen 3.0-inch LCD Screen
Voice Prompt (Optional) Voice guide of the charging process in English
Indicators LCD display-Power/Connect/Charging/Fault
External Communication Wi-Fi, bluetooth
OCPP Protocol (Optional) 1.6 or 2.0.1
Environmental
Storage Temperature -40 to 75℃ (-40 to 167℉) ambient
Operating Temperature -30 to 55℃ (-22 to 131℉) ambient
Operating Humidity Up to 95% non-condensing
Altitude ≤2000m
Protection
Protection Ratings IP 65 RCD Type B
Over Voltage Protection Yes Under Voltage Protection Yes
Over Load Protection Yes Short Circuit Protection Yes
Earth Leakage Protection Yes Ground Protection Yes
Over-temp Protection Yes Surge Protection Yes
Wallbox Mechanical
Dimension (H x W x D, mm) 180mm*180mm*70mm
Weight 1-phase＜6kg; 3-phase＜8kg
Charging Cable Length 5m or Customize Length
Product Detail
22kW EV Charger Solar Wallbox Station 32A 480V With Dynamic Load Balance Box
EM3-Box
LCD display
22kW EV Charger Solar Wallbox Station 32A 480V With Dynamic Load Balance Box
Features
  • OCPP, WIFI, Bluetooth, dynamic load balance
  • Each wallbox EV charger comes with its APP
  • Total 10 Lauguages, including French, German, Russian, etc., the language also supports customization
  • Type A+DC6mA makes charging more safer
  • compatible with solar system
  • Each EV charging station is with emergency stop botton
  • Standby power consumption<5W save much energy
  • 180mm*180mm*70mm small design makes anywhere is possible
FAQ

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery or others let's discuss

Q3. What is your terms of delivery?

A: FOB, CFR, CIF, DDU, EXW

Q4. How about your delivery time?

A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample for beginning testing.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
