Specifications
Brand Name :
ANS
Model Number :
EVX03B
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100000PCS/month
Delivery Time :
20-30days
Packaging Details :
15.7*15*3.15(in)
Product name :
Adjustable Current EV Charging Cable
Input/Output voltage :
AC 110V/230V
Key Feature :
IP67
Feature :
Adjustable Current
Power :
3.7kw
Description

Product Overview

This adjustable current EV charging cable offers flexible charging control for various power environments. Based on the EVX03B architecture, it allows users to select charging current between 6A and 16A through touch-button operation before starting the charging process.

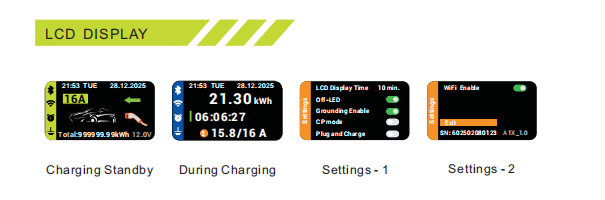

The LCD screen clearly displays selected current, voltage, charging power, energy consumption, and charging time. This flexibility makes it suitable for households with limited circuit capacity.


The integrated IC-CPD module provides protection against over-voltage, under-voltage, overload, short circuit, leakage, and over-temperature conditions, ensuring safe charging performance.

Key Features

  • 6A–16A adjustable current

  • Touch-button configuration

  • LCD real-time monitoring

  • Multiple safety protections

  • IP67-rated enclosure

Applications

Flexible residential charging, circuit-limited homes, mobile EV charging.

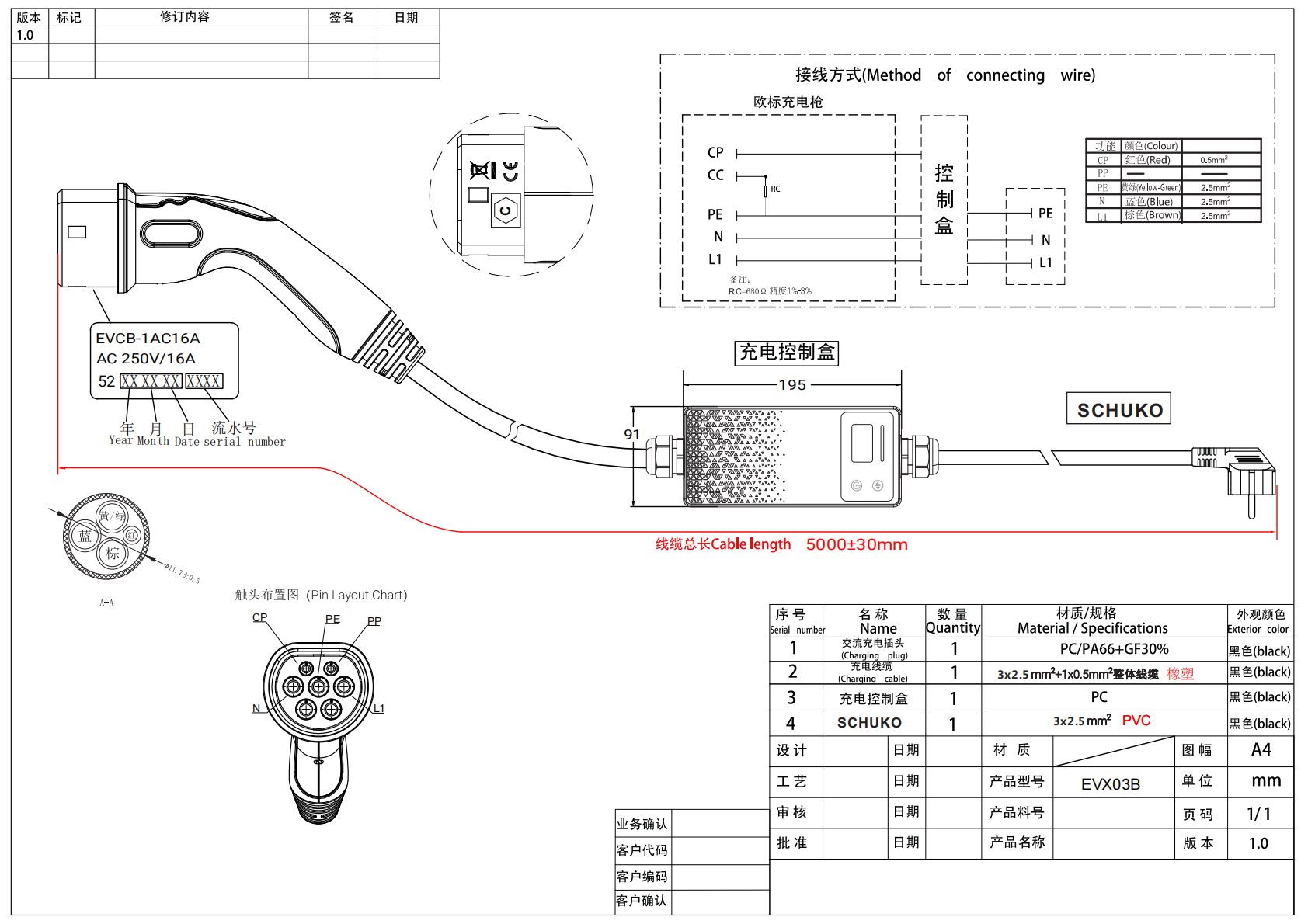

Charger Drawing


Adjustable Current Portable EV Charger with Touch Control and IP67 Rated Enclosure


Adjustable Current Portable EV Charger with Touch Control and IP67 Rated Enclosure

Charging time, Consumption(kWh)

Charging voltage /current/ power, Total electricity(kWh),Temperature

Current adjustable from 6A to 16Ain steps of 1A

Delay charging setting
The screen and LED can automatically turn off according to the set time


Optional


Appointment forcharging (based on data and time on the APP)

APP remote control (Bluetooth and WlFl)

Chargingmode (APP/Plug and Play)

View charging records on the APP

Product Model: EVX03B – Specifications

Category Item Specification
Electrical Parameters Input / Output Voltage AC 110V / 230V

Input Frequency 50 / 60 Hz

Max. Output Power 1-Phase up to 3.68 kW (230V, 16A)

Max. Output Current 16A for 1-Phase

Standard EN IEC 62752:2024

Certificate CE, RoHS
Protection Over Voltage Protection Yes

Under Voltage Protection Yes

Over Load Protection Yes

Short Circuit Protection Yes

Leakage Protection Yes

Over-Temp Protection Yes
Function & Accessory LED Indicators Yes

LCD Screen 1.47-inch

RCD Type A (Type B optional)

Current Adjustment Yes

WiFi / Bluetooth Optional

Relay Adhesion Detection Yes

RFID Manageable No
Working Environment Protection Degree IP67

Operation Temperature -30℃ ~ +55℃

Relative Humidity ≤95% RH

Operating Elevation Limit ≤2000 m

Cooling Natural Air Cooling

Standby Power Consumption < 1 W
Mechanical Parameters Charging Cable 5 m (Standard configuration)

Control Box H × W × D = 195 × 91 × 49 mm

Weight ≤ 3.0 kg

Colour Black

Material PC (Flame retardant, UV resistant)



How to install​


Packaging

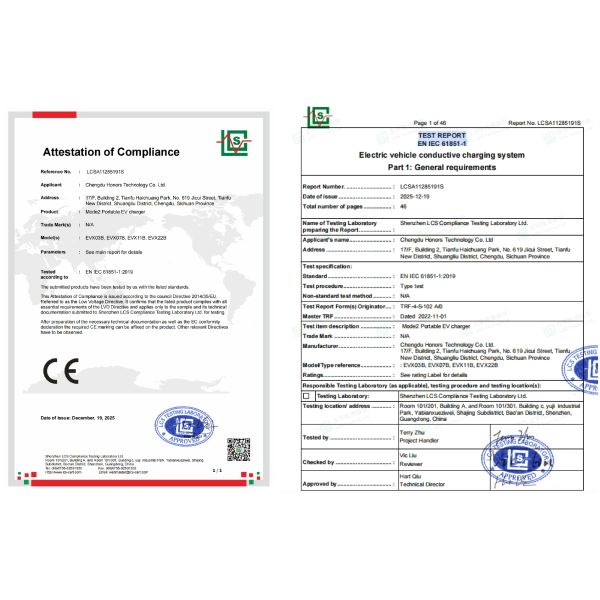

Certification
