3.7kW IP67 CE and RoHS Certified Portable EV Charger with IC-CPD Mode 2 Functionality
3.7kW IP67 CE and RoHS Certified Portable EV Charger with IC-CPD Mode 2 Functionality
3.7kW IP67 CE and RoHS Certified Portable EV Charger with IC-CPD Mode 2 Functionality
3.7kW IP67 CE and RoHS Certified Portable EV Charger with IC-CPD Mode 2 Functionality
3.7kW IP67 CE and RoHS Certified Portable EV Charger with IC-CPD Mode 2 Functionality
3.7kW IP67 CE and RoHS Certified Portable EV Charger with IC-CPD Mode 2 Functionality
3.7kW IP67 CE and RoHS Certified Portable EV Charger with IC-CPD Mode 2 Functionality
3.7kW IP67 CE and RoHS Certified Portable EV Charger with IC-CPD Mode 2 Functionality
Specifications
Brand Name :
ANS
Model Number :
EVX03B
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100000PCS/month
Delivery Time :
20-30days
Packaging Details :
15.7*15*3.15(in)
Product name :
IC-CPD Portable EV Charger
Key Feature :
IC-CPD
Type :
Mode 2 EV charger
Weiht :
3kg
Protection :
IP67
Power :
3.7kw
Description

3.7kW IP67 CE and RoHS Certified Portable EV Charger with IC-CPD Mode 2 Functionality

Charging time, Consumption(kWh)

Charging voltage /current/ power, Total electricity(kWh),Temperature

Current adjustable from 6A to 16Ain steps of 1A

Delay charging setting
The screen and LED can automatically turn off according to the set time


Optional


Appointment forcharging (based on data and time on the APP)

APP remote control (Bluetooth and WlFl)

Chargingmode (APP/Plug and Play)

View charging records on the APP

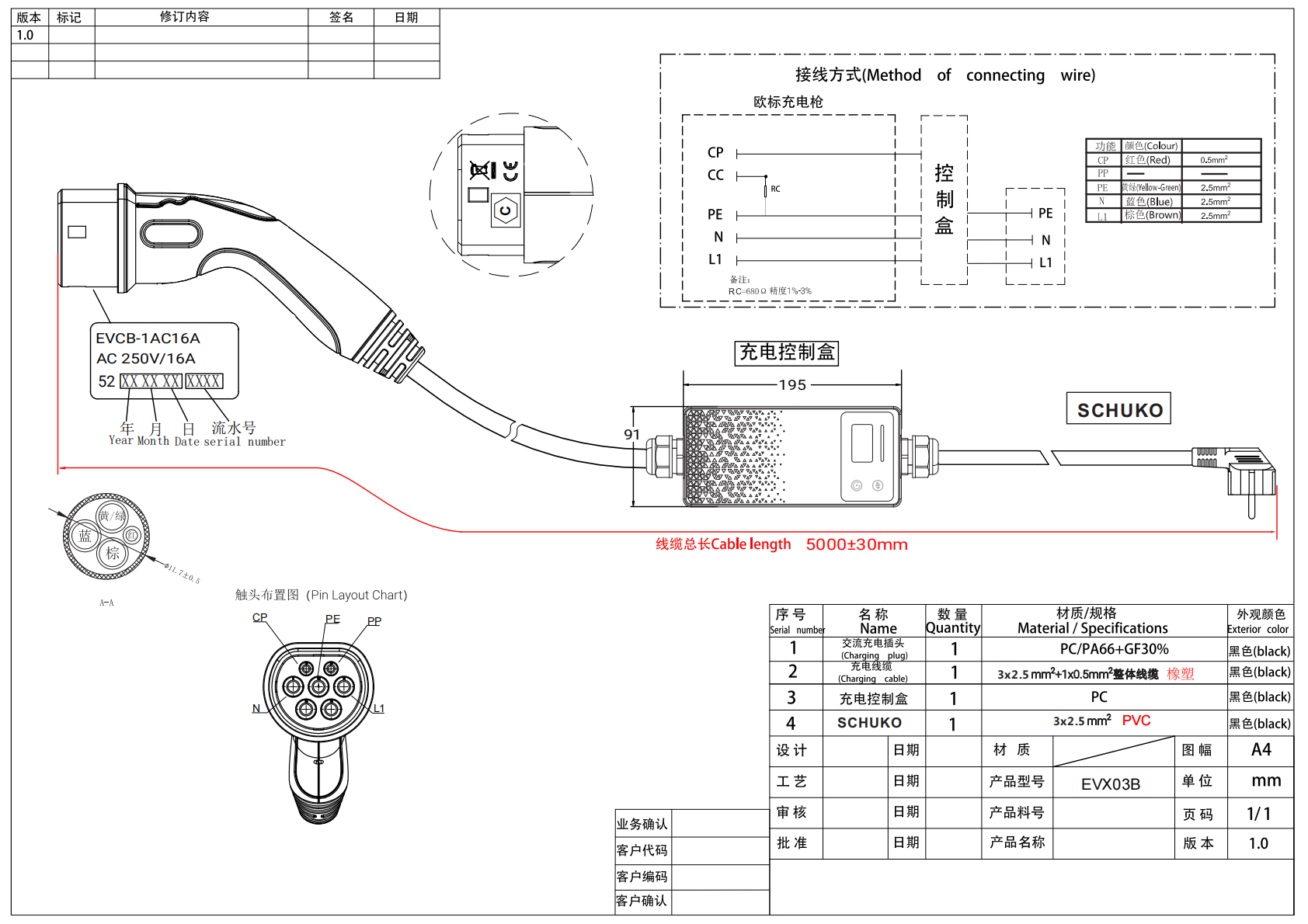

Charger Drawing

3.7kW IP67 CE and RoHS Certified Portable EV Charger with IC-CPD Mode 2 Functionality

Product Model: EVX03B – Specifications

Category Item Specification
Electrical Parameters Input / Output Voltage AC 110V / 230V

Input Frequency 50 / 60 Hz

Max. Output Power 1-Phase up to 3.68 kW (230V, 16A)

Max. Output Current 16A for 1-Phase

Standard EN IEC 62752:2024

Certificate CE, RoHS
Protection Over Voltage Protection Yes

Under Voltage Protection Yes

Over Load Protection Yes

Short Circuit Protection Yes

Leakage Protection Yes

Over-Temp Protection Yes
Function & Accessory LED Indicators Yes

LCD Screen 1.47-inch

RCD Type A (Type B optional)

Current Adjustment Yes

WiFi / Bluetooth Optional

Relay Adhesion Detection Yes

RFID Manageable No
Working Environment Protection Degree IP67

Operation Temperature -30℃ ~ +55℃

Relative Humidity ≤95% RH

Operating Elevation Limit ≤2000 m

Cooling Natural Air Cooling

Standby Power Consumption < 1 W
Mechanical Parameters Charging Cable 5 m (Standard configuration)

Control Box H × W × D = 195 × 91 × 49 mm

Weight ≤ 3.0 kg

Colour Black

Material PC (Flame retardant, UV resistant)



How to install​

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.


Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.
