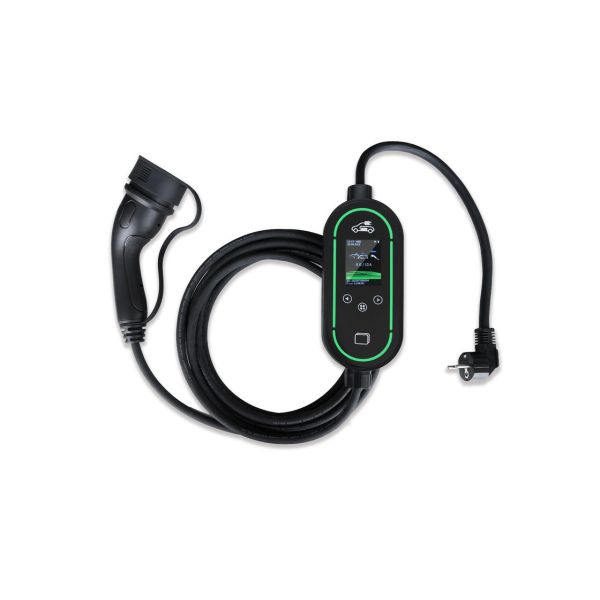

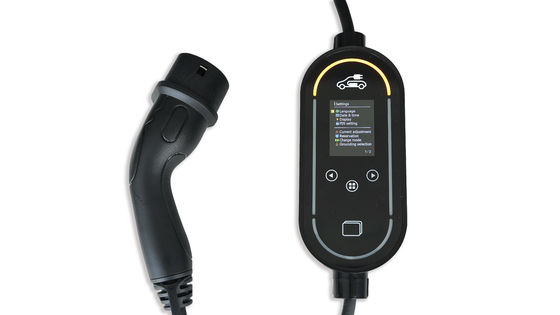

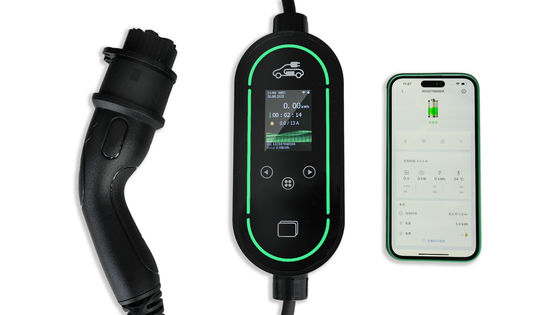

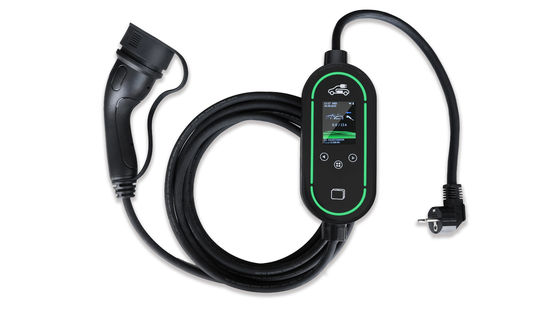

AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control
AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control
Specifications
Brand Name :
ANS
Model Number :
11KW
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
10000pcs/month
Delivery Time :
5-8days
Packaging Details :
Box
Key Feature :
2.4 Inch LCE Sreen
WIFI :
2.5GHz
Protection :
IP67
Cable Colour :
Black Or Customization
Description
Product Description
AC110V/230V 11kW Portable EV Charger with WiFi IP67/ APP Control
3 Phase 11kw Portable Home EV Charger With CE Certification

This high-performance portable EV charger delivers reliable charging with advanced features for home and on-the-go use.

Key Features
  • Date and time tracking with charging history (up to 30 records)
  • Multi-national language selection
  • Adjustable current from 6A to 16A in 1A increments
  • Scheduled charging appointments (weekly/time-based)
  • Auto screen/LED shutoff based on timer settings
  • APP remote control via Bluetooth and WiFi
  • Multiple charging modes (RFID/APP/Password/Plug and Play)
  • Advanced load control with adjustable phase number and current (ModBus TCP)
Technical Specifications
Product Model EVB03B
Input/Output Voltage AC 110V/230V
Input Frequency 50/60Hz
Max. Output Power 1-Phase up to 3.7kW (@230V 16A)
Max. Output Current 16A for 1-Phase
Standard IEC 62752:2016/COR1:2019
Certification CE, RoHS
Protection Features
  • Over-voltage protection
  • Under-voltage protection
  • Overload protection
  • Short circuit protection
  • Leakage protection
  • Over-temperature protection
  • Lightning protection
Functionality & Accessories
  • LED indicators
  • 2.4-inch LED screen
  • Type B RCD (AC 30mA+DC 6mA)
  • Current adjustment
  • Relay adhesion detection
  • RFID management
  • WiFi/Bluetooth (WiFi 2.4GHz)
Environmental Specifications
  • IP67 protection rating
  • Operating temperature: -30℃ to 55℃
  • Relative humidity ≤95%RH
  • Operating elevation limit ≤2000m
  • Natural air cooling
  • Standby power consumption <3W
Physical Parameters
  • 5m charging cable (standard)
  • Control box dimensions: 200×90×52mm (H×W×D)
  • Weight ≤3kg
  • Black color
  • PC material (flame retardant, UV resistant)


AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control
  • AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control

  • AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control
  • AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control
  • AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control

AC110V/230V 3kW Portable EV Charger with WiFi 2.4GHz and IP67 Protection

Brand Name: ANS
Model Number: EVB03B
MOQ: 1
Packaging Details: 15.7*15*3.15(in)
Payment Terms: L/C, T/T, Western Union

Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
AC 3kw Portable EV Charger
Type:
Portable Car Charger
Weiht:
3kg
WIFI:
2.5GHz
Key Feature:
2.4 Inch LCE Sreen
Cable Colour:
Black Or Customization
Protection:
IP67
Certification:
CE
Supply Ability:
100000PCS/month
Highlight:

3kW Portable EV Charger

,

AC110V/230V Electric Vehicle Charger

,

WiFi 2.4GHz EV Charging Cable

Product Description
AC110V/230V 3kW Portable EV Charger with WiFi 2.4GHz IP67
3 Phase 11kw Portable Home EV Charger With CE Certification

This high-performance portable EV charger delivers reliable charging with advanced features for home and on-the-go use.

Key Features
  • Date and time tracking with charging history (up to 30 records)
  • Multi-national language selection
  • Adjustable current from 6A to 16A in 1A increments
  • Scheduled charging appointments (weekly/time-based)
  • Auto screen/LED shutoff based on timer settings
  • APP remote control via Bluetooth and WiFi
  • Multiple charging modes (RFID/APP/Password/Plug and Play)
  • Advanced load control with adjustable phase number and current (ModBus TCP)
Technical Specifications
Product Model EVB03B
Input/Output Voltage AC 110V/230V
Input Frequency 50/60Hz
Max. Output Power 1-Phase up to 3.7kW (@230V 16A)
Max. Output Current 16A for 1-Phase
Standard IEC 62752:2016/COR1:2019
Certification CE, RoHS
Protection Features
  • Over voltage protection
  • Under voltage protection
  • Over load protection
  • Short circuit protection
  • Leakage protection
  • Over-temperature protection
  • Lightning protection
Functionality & Accessories
  • LED indicators
  • 2.4-inch LED screen
  • Type B RCD (AC 30mA+DC 6mA)
  • Current adjustment
  • Relay adhesion detection
  • RFID management
  • WiFi/Bluetooth (WiFi 2.4GHz)
Environmental Specifications
  • IP67 protection rating
  • Operating temperature: -30℃ to 55℃
  • Relative humidity ≤95%RH
  • Operating elevation limit ≤2000m
  • Natural air cooling
  • Standby power consumption <3W
Physical Parameters
  • 5m charging cable (standard)
  • Control box dimensions: 200×90×52mm (H×W×D)
  • Weight ≤3kg
  • Black color
  • PC material (flame retardant, UV resistant)
AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control
Control Box Functions
  • Leakage protection
  • Over-voltage or Low-voltage protection
  • Over-load protection
  • Lightning protection
  • Over-heat protection
  • Adjustable current: 8A, 10A, 13A, 16A
Installation Guide
AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control
  1. Position the wall bracket and mark the top screw holes
  2. Drill holes, insert expansion plugs, and secure the bracket
  3. Mount the device into the bracket and secure with screws
Installation Examples
AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control
Packaging
AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control
Certifications
AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control
Exhibition Showcase
AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control
International Visitors
AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control
