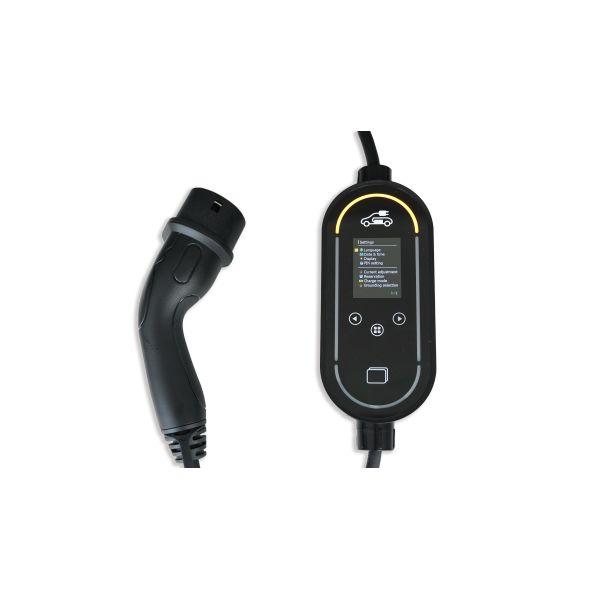

3.68kW 16A Smart Home EV Charger WiFi and Bluetooth Enabled LCD Display
3.68kW 16A Smart Home EV Charger WiFi and Bluetooth Enabled LCD Display
3.68kW 16A Smart Home EV Charger WiFi and Bluetooth Enabled LCD Display
3.68kW 16A Smart Home EV Charger WiFi and Bluetooth Enabled LCD Display
3.68kW 16A Smart Home EV Charger WiFi and Bluetooth Enabled LCD Display
3.68kW 16A Smart Home EV Charger WiFi and Bluetooth Enabled LCD Display
Specifications
Brand Name :
ANS
Model Number :
EVB03B
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000PCS/month
Delivery Time :
20-30days
Packaging Details :
15.7*15*3.15(in)
Product name :
Smart Home EV Charger
Type :
Portable Car charger
Weiht :
3kg
WIFI :
2.5GHz
Key Feature :
2.4 inch LCE Sreen
Cable Colour :
Black or Customization
Protection :
IP67
Description

3.68kW 16A Smart Home EV Charger WiFi and Bluetooth Enabled LCD Display

Description:


The EVB03B is a smart electric vehicle charger designed for home use, offering seamless integration with your smart home ecosystem. With built-in WiFi and Bluetooth, you can control charging schedules, monitor energy consumption, and adjust settings remotely via a dedicated app. The charger supports current adjustment from 6A to 16A, allowing you to optimize charging speed based on your electrical system’s capacity. The 2.4-inch LCD display shows real-time data such as voltage, current, power, and charging history. It also supports multiple languages, making it user-friendly for international households. Complying with international safety standards, the EVB03B ensures reliable and secure operation in diverse environments.

Core Points:

  • WiFi & Bluetooth for remote control via mobile app

  • Adjustable current from 6A to 16A

  • LCD screen with multi-language support

  • Compliant with IEC 62752, CE, RoHS

Specificaiton

Product Model EVB03B
Input/Output voltage AC 110V/230V
Input frequency 50/60Hz
Max.output power 1 - Phase up to 3.7kW(@230V 16A)
Max.output current 16A for 1 - Phase
Standard IEC 62752:2016/COR1:2019
Certificate CE,RoHS
Protection
Over voltage protection Yes
Under voltage protection Yes
Over load protection Yes
Short circuit protection Yes
Leakage protection Yes
Over - temp protection Yes
Lightning protection Yes
Function and Accessory
LED indicators Yes
Led screen 2.4-inch
RCD Type B((AC 30mA+DC 6mA)
Current adjustment Yes
Relay adhesion detection Yes
RFID manageable Yes
WIFI/Bluetooth Yes(WIFI 2.4GHz)
Working environment
Protection degree IP 67
Operation temperature -30℃ - 55℃
Relative humidity ≤95%RH
Operating elevation limit ≤2000m
Cooling Natural air cooling
Standby power consumption <3W
Mechanical parameters
Charging cable 5m (Standard configuration)
Control box H×W×D = 200mm×90mm×52mm
Weight ≤3kg
Colour Black
Material PC(Flame retardant, UV resistant)


3.68kW 16A Smart Home EV Charger WiFi and Bluetooth Enabled LCD Display

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

How to install​

3.68kW 16A Smart Home EV Charger WiFi and Bluetooth Enabled LCD Display

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.


Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.
