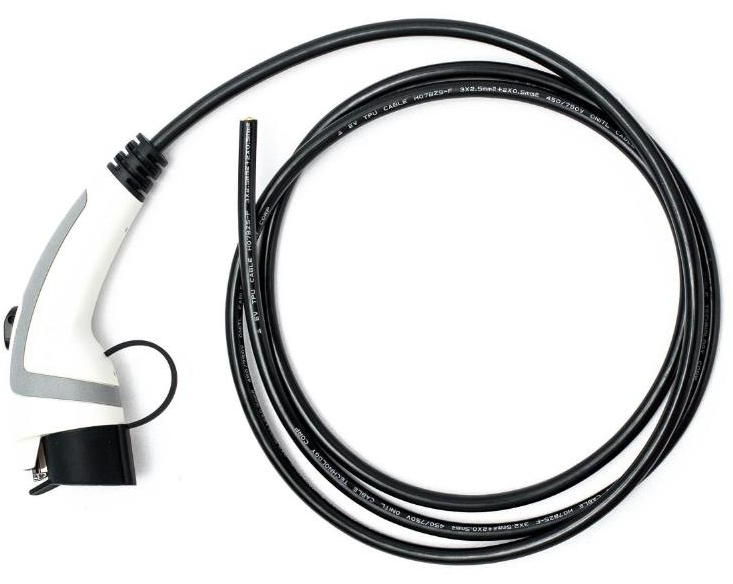

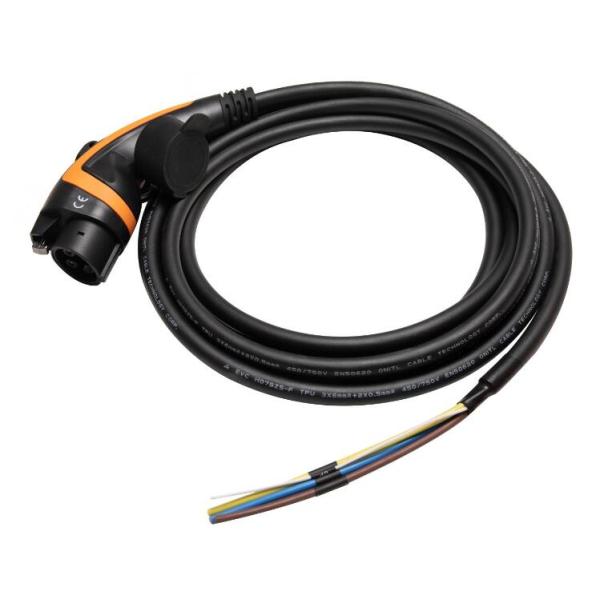

SAE J1772 Type 1 EV Charging Cable 30feet Waterproof IP55 Type 1 EV Connector
SAE J1772 Type 1 EV Charging Cable 30feet Waterproof IP55 Type 1 EV Connector
SAE J1772 Type 1 EV Charging Cable 30feet Waterproof IP55 Type 1 EV Connector
SAE J1772 Type 1 EV Charging Cable 30feet Waterproof IP55 Type 1 EV Connector
Specifications
Brand Name :
ANS
Model Number :
ANS-T1-7kW
Certification :
TUV,CE
Place of Origin :
China
MOQ :
1pc
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000cs a week
Delivery Time :
20-30days
Packaging Details :
standard exported package
product name :
Type 1 EV Connector
amps :
32A
voltage :
250V
Power :
7kW
standard :
SAE J1772 -2012
model :
level 2 US charging plug
logo :
support customzation
cable length :
25feet，30feet
Description

SAE J1772 Type 1 EV Charging Cables 32A 250V 7kW Waterproof IP55 with TPU Materials Type 1 EV Connector

Features:

  • Conform to the provisions and requirements of SAEJ1772-2012,IEC 62196-2 20162-l
  • Using riveting pressure process with none screw ,have a beautiful appearance.Hand-held design conform tothe ergonomic principle , plug conveniently
  • XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending lifeand wear resistance of cable.
  • Excellent protection performance, protection grade achieved lP55 ( working condition )
  • Adopted double color coating technology, personalized custom a variety of colors (Orange, blue, green.,grey)

Mechanical properties

  • Mechanical life : no-load plug in/pull out> 10000 times
  • Coupled insertion force: >45N<80N

Electrical Performance

  • Rated current : 16A,20A, 32A
  • Operation voltage: 240V
  • lnsulation resistance: >1000MQ(DC50Ov)
  • Terminall temperature rise :<50K
  • withstand voltage : 2000V

Environmental performance
Operating temperature:-30℃~+50°C

Applied Materials

  • Case Material: Thermoplastic,flame retardant grade UL94v-o
  • Contact Resistance:0.5mQ Max
  • Contact bush: Copper alloy,silver plating

Rated Current:
32Amp
Operating Voltage
AC 120V / AC 240V
Insulation Resisitance
>1000MΩ(DC500V)
Withstand Voltage
2000V
Contact Pin
Copper alloy, Silver
Working temperature
-30°C ~+50°C
Flame Retardant Grade
UL94 V-0
Contact Resistance:
0.5mΩ Max
Waterproof
IP54
Certificate
CE,TUV Approved

SAE J1772 Type 1 EV Charging Cable 30feet Waterproof IP55 Type 1 EV Connector

SAE J1772 Type 1 EV Charging Cable 30feet Waterproof IP55 Type 1 EV Connector

Certification: UL,CE

SAE J1772 Type 1 EV Charging Cable 30feet Waterproof IP55 Type 1 EV Connector

SAE J1772 Type 1 EV Charging Cable 30feet Waterproof IP55 Type 1 EV Connector
