Specifications
product name :
AC EV charging station
Rated Current: :
32A
Certifications: :
TUV
Protection level: :
IP65
Application :
AC Home Charging
Brand :
ANS
Stardard :
IEC62196-3
Warranty :
2years
Material :
TPU
Operating temperature: :
-30℃-+50℃
Brand Name :
ANS
Model Number :
ANSMD-EVS1
Certification :
TUV
Place of Origin :
china
MOQ :
1
Price :
USD330
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100000PCS/month
Delivery Time :
20-30days
Packaging Details :
15.7*15*3.15(in)
Description

Single Phase 32A 7KW Wallbox Type 2 EV Charger Station Electric Vehicle Car AC EV Charging Station with 5M Cable

Product Description
Power Specification
AC Power Input RatingSAE StandardIEC Standard
AC Level 21-Phase3-Phase
240V220V ± 15%380V ± 15%
AC Power Output Rating3.5kW/16A3.5kW/16A11kW/16A
7kW/32A7kW/32A22kW/32A
10kW/40AN/AN/A
Rated Frequency50/60Hz50/60Hz50/60Hz
Connector TypeSAE J1772 (Type 1)IEC 62196-2 (Type 2)
User Interface & Control
Charging ControlPlug and Play, RFID Card, or App
Display Screen3.0-inch LCD Screen
Voice Prompt (Optional)Voice guide for the charging process in English
IndicatorsLCD display-Power/Connect/Charging/Fault
External CommunicationWi-Fi, Bluetooth
OCPP Protocol (Optional)1.6 or 2.0.1
Environmental
Storage Temperature-40 to 75℃ (-40 to 167℉) ambient
Operating Temperature-30 to 55℃ (-22 to 131℉) ambient
Operating HumidityUp to 95% non-condensing
Altitude≤2000m
Protection
Protection RatingsIP 65RCDType B
Over Voltage ProtectionYesUnder Voltage ProtectionYes
Over Load ProtectionYesShort Circuit ProtectionYes
Earth Leakage ProtectionYesGround ProtectionYes
Over-temp ProtectionYesSurge ProtectionYes
Wallbox Mechanical
Dimension (H x W x D, mm)180mm*180mm*70mm
Weight1-phase<6kg; 3-phase<8kg
Charging Cable Length5m or Customize Length
Product Detail

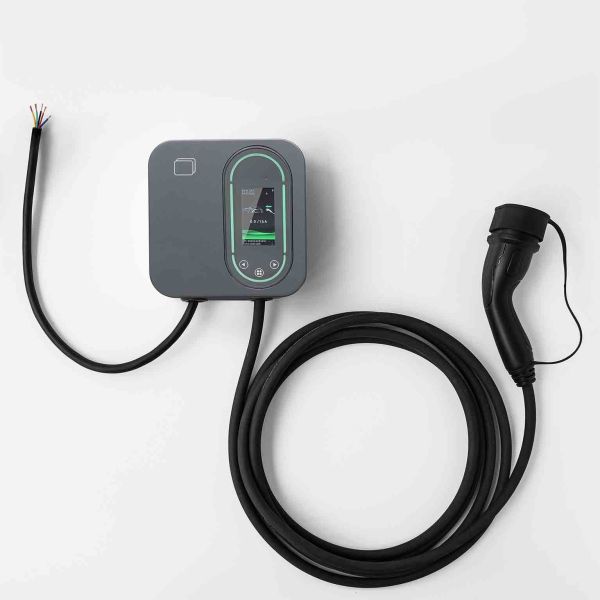

UL94 V-0 IP67 Electric Vehicle Charging Station

UL94 V-0 IP67 Electric Vehicle Charging Station

Features
  • OCPP, WIFI, Bluetooth, dynamic load balance
  • Each wallbox EV charger comes with its APP
  • Total 10 Languages, including French, German, Russian, etc., the language also supports customization
  • Type A+DC6mA makes charging more safer
  • compatible with solar system
  • Each EV charging station is with emergency stop botton
  • Standby power consumption<5W save much energy
  • 180mm*180mm*70mm small design makes anywhere is possible
FAQ
  1. Q1. What is your terms of packing?
    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
  2. Q2. What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
  3. Q3. What is your terms of delivery?
    A: FOB, CFR, CIF, DDU.
  4. Q4. How about your delivery time?
    A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
  5. Q5. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
  6. Q6. What is your sample policy?
    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
  7. Q7. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery
  8. Q8: How do you make our business long-term and good relationship?
    A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
