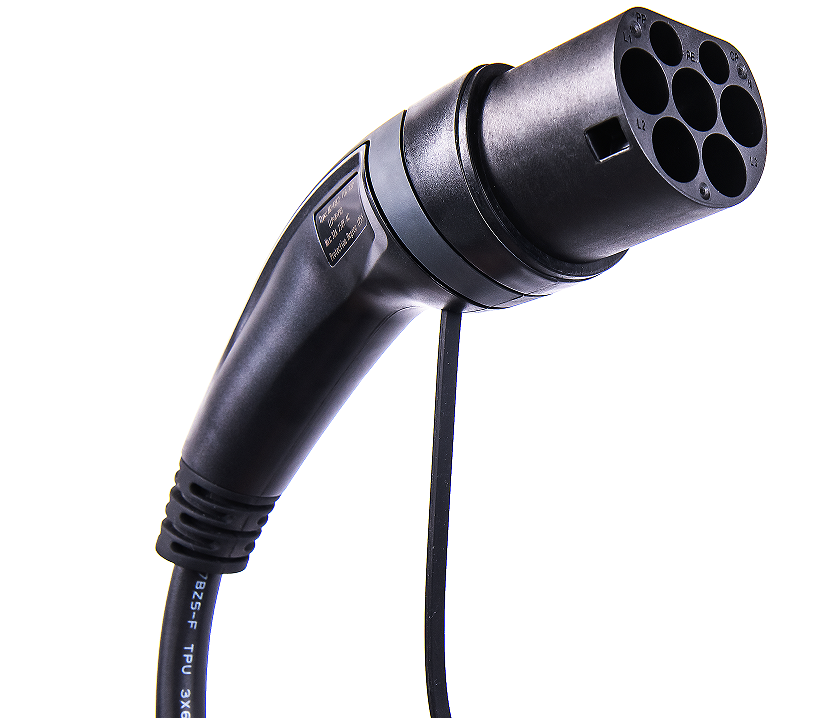

Type 1 To Type 2 IP67 Electric Car Charging Cable With SAE J1772 Spring Cable
Type 1 To Type 2 IP67 Electric Car Charging Cable With SAE J1772 Spring Cable
Type 1 To Type 2 IP67 Electric Car Charging Cable With SAE J1772 Spring Cable
Type 1 To Type 2 IP67 Electric Car Charging Cable With SAE J1772 Spring Cable
Type 1 To Type 2 IP67 Electric Car Charging Cable With SAE J1772 Spring Cable
Type 1 To Type 2 IP67 Electric Car Charging Cable With SAE J1772 Spring Cable
Type 1 To Type 2 IP67 Electric Car Charging Cable With SAE J1772 Spring Cable
Type 1 To Type 2 IP67 Electric Car Charging Cable With SAE J1772 Spring Cable
Type 1 To Type 2 IP67 Electric Car Charging Cable With SAE J1772 Spring Cable
Type 1 To Type 2 IP67 Electric Car Charging Cable With SAE J1772 Spring Cable
Specifications
Brand Name :
ANS
Model Number :
ANSAG-T2-T2-32-ST
Certification :
TUV
Place of Origin :
china
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000PCS/month
Delivery Time :
20-30days
Packaging Details :
15.7*15*3.15(in)
Product name :
32A Type 1 to Type 2 EV Charging Cable
Brand :
ANS
Material :
TPU
Rated Current: :
32A
Stardard :
IEC 62196-2
Protection level: :
IP67
Warranty :
2years
Certifications: :
TUV
Color :
black&grey
Description

32A Spring Cable SAE J1772 to IEC 62196-2 EV Plug Connector Type 1 to Type 2 EV Charging Cable

Product Description

Input & Output

Input voltage/Output voltage

100~250V AC

Max. output current

32A 1Phase

Input frequency

47~63Hz

Charging interface type

Type1-Type 2

Max. output power

7kW

Protection

Over voltage protection

yes

Earth leakage protection

yes

Under voltage protection

yes

Over-temp protection

yes

Over load protection

yes

Lightning protection

yes

Short circuit protection

yes

Function and Accessory

Ethernet/WIFI/4G/Bluetooth

No

Cable gauge
3x6+2x0.5mm2

Plug type

Type 1-Type2 male&female

Plug material

Thermoplastics

Length

5 meters or customization

Cable material

TPU

Working environment

Waterproof Protection degree

IP55

Maximum altitude

<2000m

Environment temperature

-40℃ ~ +50℃

Cooling

Natural air cooling

Relative humidity

0-95% non-condensing

Standby power consumpiton

<8W

Package

Dimension (W/H/D)

40/38/8cm

Weight

4KG

Certificate

CE, TUV,

Product Detail

Feature of Type1-Type 2 Ev Charging Cables

Mechanical life: unloading and inserting >10,000 times

Impact resistance: 1m height drop and 2 tons vehicle overpressure operation

Insulation resistance: >1000Ω (DC500V)

Withstanding voltage: 2500V

Contact impedance: 0.5mΩ Max

Pin temperature rise: <50K

EV charging cable with charging plug and connector, type 1 to type 2, 1 phase

Vehicle side (EV): 32A 1 phase Type 1 Connector, screw type, for charging your EV up to 7.2 kW.

Infrastructure side (EVCS): 32A 1-phase Type 2 charging plug

Compliance standard: IEC/EN 62196-1/2:2016

Attractive, ergonomic hand-held design for easy plugging and unplugging

Working length of 5 m, made of thermoplastic material. Protection class IP55, flame retardant, pressure, wear and impact resistant.

Type 1 To Type 2 IP67 Electric Car Charging Cable With SAE J1772 Spring Cable

Type 1 To Type 2 IP67 Electric Car Charging Cable With SAE J1772 Spring Cable

Producing&Packing

Type 1 To Type 2 IP67 Electric Car Charging Cable With SAE J1772 Spring Cable

Certification

Type 1 To Type 2 IP67 Electric Car Charging Cable With SAE J1772 Spring Cable
