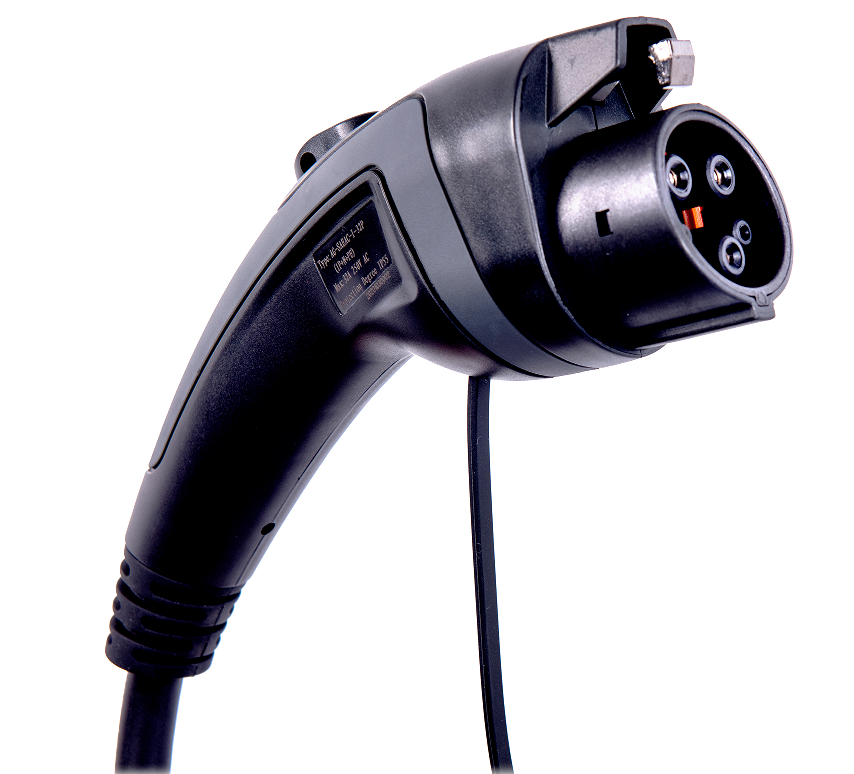

IP67 Spring Cable SAE J1772 Type 1 to Type 2 EV Charging Cable for Mode 3 Charging
IP67 Spring Cable SAE J1772 Type 1 to Type 2 EV Charging Cable for Mode 3 Charging
IP67 Spring Cable SAE J1772 Type 1 to Type 2 EV Charging Cable for Mode 3 Charging
IP67 Spring Cable SAE J1772 Type 1 to Type 2 EV Charging Cable for Mode 3 Charging
IP67 Spring Cable SAE J1772 Type 1 to Type 2 EV Charging Cable for Mode 3 Charging
IP67 Spring Cable SAE J1772 Type 1 to Type 2 EV Charging Cable for Mode 3 Charging
IP67 Spring Cable SAE J1772 Type 1 to Type 2 EV Charging Cable for Mode 3 Charging
IP67 Spring Cable SAE J1772 Type 1 to Type 2 EV Charging Cable for Mode 3 Charging
IP67 Spring Cable SAE J1772 Type 1 to Type 2 EV Charging Cable for Mode 3 Charging
IP67 Spring Cable SAE J1772 Type 1 to Type 2 EV Charging Cable for Mode 3 Charging
Specifications
Brand :
ANS
Stardard :
IEC 62196-2
Color :
black&grey
Brand Name :
ANS
Model Number :
ANSAG-T2-T2-32-ST
Certification :
TUV
Place of Origin :
china
MOQ :
1
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100000PCS/month
Delivery Time :
20-30days
Packaging Details :
15.7*15*3.15(in)
Protection level: :
IP67
Certifications: :
TUV
Warranty :
2years
Material :
TPU
Product name :
32A Type 1 to Type 2 EV Charging Cable
Rated Current: :
32A
Description
Product Overview

32A Spring Cable SAE J1772 to IEC 62196-2 EV Plug Connector — Type 1 to Type 2 EV Charging Cable. Designed for reliable, high-performance charging with a durable spring cable and ergonomic connectors.

Input & Output Specifications
Input / Output Voltage 100~250V AC Max. Output Current 32A, 1 Phase
Input Frequency 47~63Hz Charging Interface Type Type 1 – Type 2
Max. Output Power 7kW
Protection Features
Over Voltage Protection Yes Earth Leakage Protection Yes
Under Voltage Protection Yes Over-Temp Protection Yes
Over Load Protection Yes Lightning Protection Yes
Short Circuit Protection Yes
Function & Accessories
Ethernet / WiFi / 4G / Bluetooth No Cable Gauge 3*6 + 2*0.5mm²
Plug Type Type 1 – Type 2, Male & Female Plug Material Thermoplastics
Length 5 meters or customization Cable Material TPU
Working Environment
Waterproof Protection Degree IP55 Maximum Altitude <2000m
Environment Temperature -40℃ ~ +50℃ Cooling Natural Air Cooling
Relative Humidity 0–95% non-condensing Standby Power Consumption <8W
Package Information
Dimension (W/H/D) 40 / 38 / 8 cm Weight 4 KG
Certificate CE, TUV
Product Detail & Features
Key Features of Type 1 – Type 2 EV Charging Cables
  • Mechanical life: unloading and inserting >10,000 times
  • Impact resistance: 1m height drop and 2 tons vehicle overpressure operation
  • Insulation resistance: >1000Ω (DC500V)
  • Withstanding voltage: 2500V
  • Contact impedance: 0.5mΩ Max
  • Pin temperature rise: <50K
  • EV charging cable with charging plug and connector, Type 1 to Type 2, 1 phase
  • Vehicle side (EV): 32A 1-phase Type 1 Connector, screw type, for charging your EV up to 7.2 kW
  • Infrastructure side (EVCS): 32A 1-phase Type 2 charging plug
  • Compliance standard: IEC/EN 62196-1/2:2016
  • Attractive, ergonomic hand-held design for easy plugging and unplugging
  • Working length of 5 m, made of thermoplastic material. Protection class IP55, flame retardant, pressure, wear and impact resistant
Product Images
IP67 Spring Cable SAE J1772 Type 1 to Type 2 EV Charging Cable for Mode 3 Charging IP67 Spring Cable SAE J1772 Type 1 to Type 2 EV Charging Cable for Mode 3 Charging IP67 Spring Cable SAE J1772 Type 1 to Type 2 EV Charging Cable for Mode 3 Charging
Producing & Packing
IP67 Spring Cable SAE J1772 Type 1 to Type 2 EV Charging Cable for Mode 3 Charging
Certification
IP67 Spring Cable SAE J1772 Type 1 to Type 2 EV Charging Cable for Mode 3 Charging
