32A 250V Type 2 EV Charging Cables Easy Assemble Type 2 Female Plug
32A 250V Type 2 EV Charging Cables Easy Assemble Type 2 Female Plug
32A 250V Type 2 EV Charging Cables Easy Assemble Type 2 Female Plug
32A 250V Type 2 EV Charging Cables Easy Assemble Type 2 Female Plug
32A 250V Type 2 EV Charging Cables Easy Assemble Type 2 Female Plug
32A 250V Type 2 EV Charging Cables Easy Assemble Type 2 Female Plug
Specifications
Brand Name :
ANS
Model Number :
ANS-T2-7kW
Certification :
TUV,CE
Place of Origin :
China
MOQ :
1pc
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000cs a week
Delivery Time :
20-30days
Packaging Details :
standard exported package
product name :
Type 2 EV Charging Cables
amps :
32A
voltage :
250V
Power :
7kW
phase :
1 phase
model :
Type 2 EV Charging Plug
logo :
support customzation
cable length :
without Cables
Description

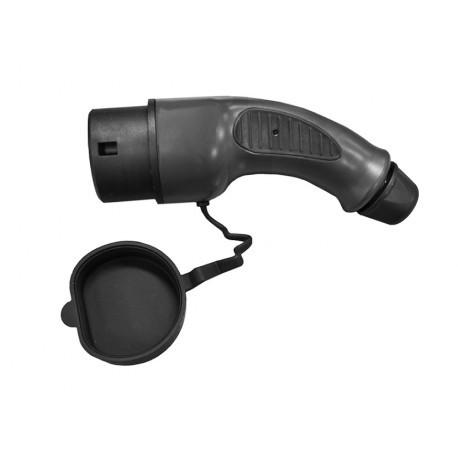

AC Fast Charging Plug IEC 62196 Type 2 EV Plug 32A 250V Easy Assemble Type 2 EV Charging Cables

Rated Current: 32A
Operating Voltage AC 250V
Insulation Resisitance >1000MΩ(DC500V)
Withstand Voltage 2500V
Contact Pin Copper alloy, Silver
Working temperature -30°C ~+50°C
Flame Retardant Grade UL94 V-0
Contact Resistance: 0.5mΩ Max
Waterproof IP54
Certificate
CE,TUV Approved

Features:

  • Meet IE 62196-2010 standard
  • Excellent protection performance,protection grade IP54(working condition)
  • Nice appearance,hand-held ergonomic design, easy plug

Mechanical properties

  • Mechanical life : no-load plug in/pull out> 10000 times
  • Coupled insertion force: >45N<80N

Electrical Performance

  • Rated current : 32A
  • Operation voltage: 250V
  • lnsulation resistance: >1000MQ(DC50Ov)
  • Terminall temperature rise :<50K
  • withstand voltage : 2000V

Environmental performance
Operating temperature:-30℃~+50°C

Applied Materials

  • Case Material: Thermoplastic,flame retardant grade UL94v-o
  • Contact Resistance:0.5mQ Max
  • Contact bush: Copper alloy,silver plating

32A 250V Type 2 EV Charging Cables Easy Assemble Type 2 Female Plug

32A 250V Type 2 EV Charging Cables Easy Assemble Type 2 Female Plug

Certification: UL,CE

32A 250V Type 2 EV Charging Cables Easy Assemble Type 2 Female Plug

32A 250V Type 2 EV Charging Cables Easy Assemble Type 2 Female Plug
