Intelligent Commercial EV Charging Station Type 2 OCPP2.0 22kW 32A
Intelligent Commercial EV Charging Station Type 2 OCPP2.0 22kW 32A
Intelligent Commercial EV Charging Station Type 2 OCPP2.0 22kW 32A
Intelligent Commercial EV Charging Station Type 2 OCPP2.0 22kW 32A
Specifications
Brand Name :
ANS
Model Number :
ANS-PT2AC22kW
Certification :
TUV/CE/UL/RoHS/REACH
Place of Origin :
China
MOQ :
5pcs
Price :
USD300-500
Payment Terms :
T/T, Western Union,Paypal, L/C
Supply Ability :
600pcs/day
Delivery Time :
10-30days
Packaging Details :
Carton box. Carton size: 43*43*21cm
Product Name :
ev charging stations
Cable Length :
5M or customized
Rated Current :
32A
Rated Power :
22kW
Rated Voltage :
480V
Rated Frequency :
50/60Hz
Charging Control :
Plug and Charge, Start/stop touch button, RFID Card or Mobile APP
Connector Type :
IEC62196 Type 2
External Communication :
RS485
Description

Intelligent Commercial OCPP2.0 22kW 32A 3phase Type 2 Ev Charging Stations

Features:

11/22kW Multipurpose Wallbox, intelligent and flexible for various applications: fleets, retail, workplace

  • Flexible authentication

RFID, mobile APP, plug & charge.

  • MID energy meter (external connection from RS485)

More precise metering, comply with the most demanding billing requirements.

  • 4G communication (optional)

A variety of communication interfaces ensure the charger can be connected to the background system.

  • LCD display

The 3.5 inch screen display the charger status, charging power, etc.

Power Specification

Model Number:H2

AC Power Input Rating: 380VAC(3-Phase)

Rated Frequency: 50/60Hz

Output Current: 32A/16A

Output Power: 22kW/11kW

Connector: Type 5m charge cable

Protection

IP Code: IP55

Leakage Protection: AC 30mA+DC 6mA

Electrical Protection: Over/Under Voltage Protection, Over Load Protection, Short Circuit Protection, Earth Leakage Protection, Ground Protection, Over-temp Protection, Surge Protection

User Interface&Control

Charging Control Plug and Charge, Start&stop touch button, RFID Card or Mobile APP
LCD Display 4.3’‘(optional)
Internet Connection Wi-Fi (LAN optional)
External Communication RS485
OCPP Protocol(optional)

OCPP 1.6

Environmental
Storage Temperature: -40 to 75℃ ambient
Operating Temperature: -30 to 55℃ ambient
Operating Humidity: Up to 95% non-condensing
Altitude: ≤2000m
Cooling Method: Natural Cooling

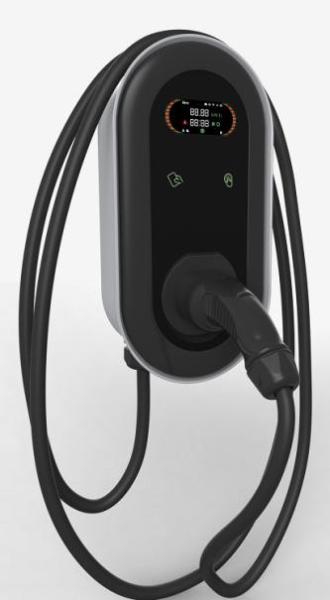

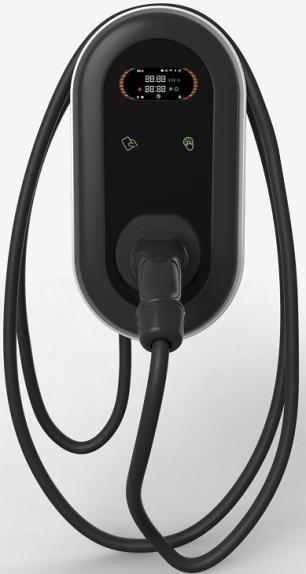

Product pictures

Intelligent Commercial EV Charging Station Type 2 OCPP2.0 22kW 32A

Certification

Intelligent Commercial EV Charging Station Type 2 OCPP2.0 22kW 32A
