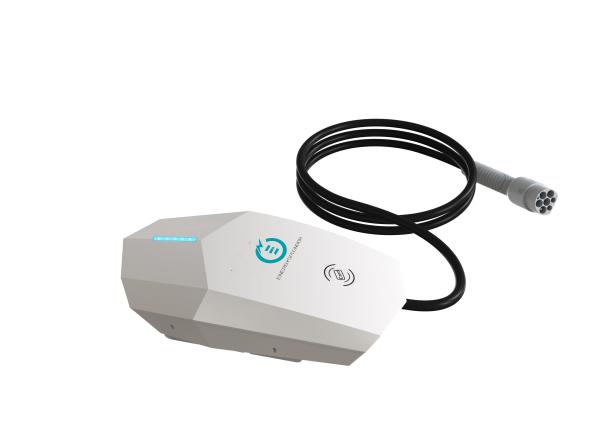

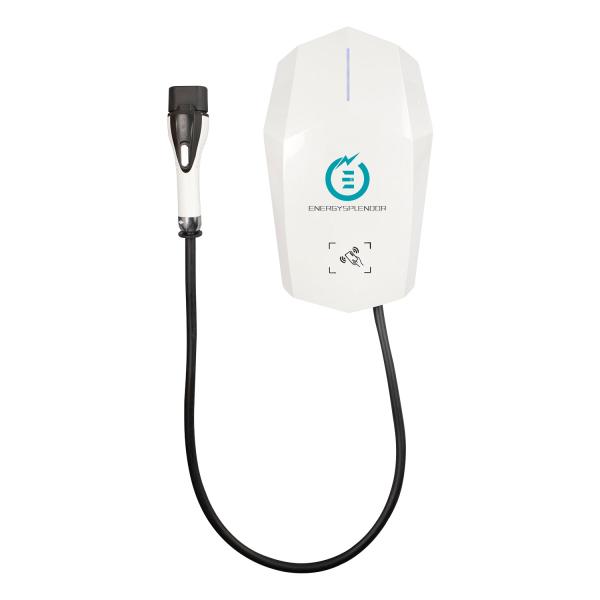

7KW 11KW 22KW Single Phase Home AC EV Charger Level 2 EVSE Offline No Billing
7KW 11KW 22KW Single Phase Home AC EV Charger Level 2 EVSE Offline No Billing
7KW 11KW 22KW Single Phase Home AC EV Charger Level 2 EVSE Offline No Billing
7KW 11KW 22KW Single Phase Home AC EV Charger Level 2 EVSE Offline No Billing
7KW 11KW 22KW Single Phase Home AC EV Charger Level 2 EVSE Offline No Billing
7KW 11KW 22KW Single Phase Home AC EV Charger Level 2 EVSE Offline No Billing
Specifications
Brand Name :
Energy splendor
Model Number :
ES-AC-7KW
Certification :
CE
Place of Origin :
Zhejiang, China
MOQ :
1
Price :
$340.00/Pieces 1-9 Pieces
Payment Terms :
T/T, L/C
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
7-14 days
Packaging Details :
carton
Product name :
EV Charging Station (WallBox)
Application :
AC charger
Function :
APP Control
Warranty :
2 Year
Voltage :
220V
Color :
White
Rated Output Power :
7KW/11KW/22KW
Control mode :
APP/Turn on/Plug/RFID
Certificate :
CE
Operating model :
Offline no billing
Protective function :
short circuit
Installation method :
Wall-mounted
working environment :
Altitude: ≤2000m
Description
Product Details
Feature:
1. 7kW intelligent AC charging, using an intelligent controller to detect, control, and protect the charging pile, with the functions of running status monitoring, fault monitoring, charging metering and charging, and remote control of the charging process;
2. Humanized operation: The mobile APP performs charging and settlement operations and supports multiple mobile payment methods;
3. Reliable material: It is made of SMC fiberglass, which can withstand the complicated climatic environment, and the waterproof and dustproof grade reaches IP54;
4. Safety and stability: with lightning protection, overload, short circuit, and leakage protection;
5. Strong applicability: It has successfully charged most models.
Energy splendor, which is a professional manufacturer in Green new energy and peripheral products. Mainly manufactures, sells, installs, and services urban Smart LED street light system, intelligent solar lamp control system, LED high power lighting lamp, Low voltage distribution switch control equipment, electric vehicle switching equipment, industrial and commercial photovoltaic power systems etc.
Energy splendor has a perfect quality management system and independent product development capabilities. The company has passed the ISO9001 / ISO14001 / OHSAS18001 three major quality, environment, occupational health and safety certifications.
Our Products have passed TUV, SGS, CB, CE, ROHS and other international safety certifications, and many products have national utility models and invention patents.
At present, Energy splendor have exported to Southeast Asia, Europe, America, Australia and Pacific countries. In recent years, our company is continuously developing emerging countries and regions such as Africa and the Middle East. The quality and service of Energy splendor have also unanimously received and praised by overseas customers.
Looking to the future, Energy splendor people will carry forward the entrepreneurial spirit of modesty, innovation, integrity, passion, dedication, responsibility and gratitude, co-learning, unite as one and share the future. Hope you can join us and we can make a green future.
Protection technology-we promise your safety
DC fault & AC leakage protection: Integrated 30mA Type B RCCB
Overload protection: Circuit breaker(MCB)(in upstream domestic installation, not included in the scope of delivery)
FAQ
Q1:Could you tell me the way of packing?
A: Most of items are packed in cartons, some of big items are packed in Wooden cartons. And then packed in pallet for easy
loading/unloading and transportation.
Q2:Minimum order.
A: one
Q3:What are your main market?
A:Mostly Europe and America, Middle East and Asia.
Q4:How long time to make a sample?
A:1-7 days if we make a new sample for you.
Q5:How long is the lead time:
A: The lead time is 5-40 days,It depends on the quantity purchased.
Q6: How many kinds of payment?
A: We have T/T and L/C etc.
If you need the detailed terms of payment, pls contact us.
Q7: Why is new model expensive than other old models?
A: A new model needs large R&D and mould cost, and the depletion rate is bigger during mould and production. Besides, new model is
low productive but labor costs keep same as old model.
Q8: What certifications do you have?
A:We have Chinese national standard, CE standard available, and could meet American SAE standard and Japanese standard.
Q9: How long is the warranty time?
A: The warranty time is 2 years.
Q10:Can you do without the column?
A:Of course you can hang charging posts on the wall.
Packaging Details
Most of items are packed in cartons, some of big items are packed in Wooden cartons. And then packed in pallet for easy loading/unloading and transportation.
specification
product name
AC EV Charging Station
model
AC7KW
Dimensions (mm)
340*240*110
Human-computer interaction
4.3 inch touch screen
AC power
220Vac±20% ; 50Hz±10% ; L+N+PE
Rated current
32A
Output Power
7KW
working environment
Altitude: ≤2000m; Temperature: -20℃~+50℃;
charging method
Swipe card, scan code
Networking method
2G, 4G, Wifi, applet
Operating model
Offline no billing, offline billing, online billing
Protective function
Overvoltage, undervoltage, overcurrent, short circuit, surge, leakage, etc.
Charging port
GB/T 20234.2-2015
Charging cable length
Standard 3.5 meters (optional)
Protection level
Ip54
Installation method
Wall-mounted or floor-mounted installation, corresponding accessories are required

7KW 11KW 22KW Single Phase Home AC EV Charger Level 2 EVSE Offline No Billing7KW 11KW 22KW Single Phase Home AC EV Charger Level 2 EVSE Offline No Billing
