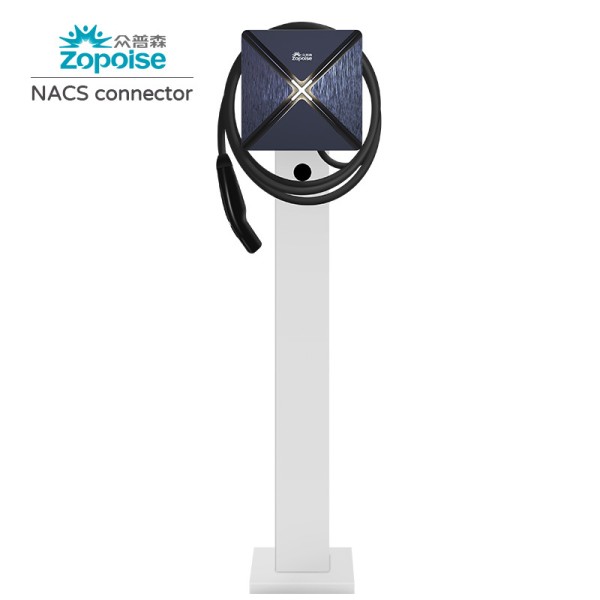

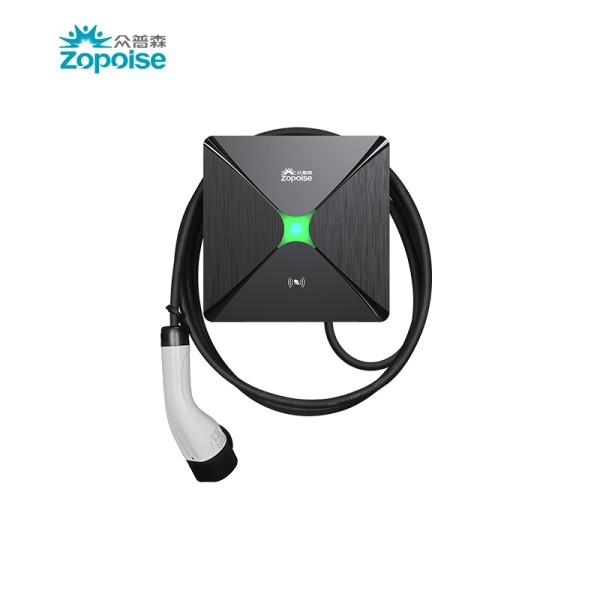

ZB23 Wallbox EV Charger Design With 4.3 Inch Screen Real Time Monitoring
ZB23 Wallbox EV Charger Design With 4.3 Inch Screen Real Time Monitoring
ZB23 Wallbox EV Charger Design With 4.3 Inch Screen Real Time Monitoring
ZB23 Wallbox EV Charger Design With 4.3 Inch Screen Real Time Monitoring
ZB23 Wallbox EV Charger Design With 4.3 Inch Screen Real Time Monitoring
ZB23 Wallbox EV Charger Design With 4.3 Inch Screen Real Time Monitoring
ZB23 Wallbox EV Charger Design With 4.3 Inch Screen Real Time Monitoring
ZB23 Wallbox EV Charger Design With 4.3 Inch Screen Real Time Monitoring
ZB23 Wallbox EV Charger Design With 4.3 Inch Screen Real Time Monitoring
ZB23 Wallbox EV Charger Design With 4.3 Inch Screen Real Time Monitoring
Specifications
Productname :
Wallbox EV Chargers
MOQ :
100 units, can be flexible
Interface Standard :
Type 2
Chargingmode :
Mode 3
Operatingtemperature :
-30°C to 50°C
Plug Type :
Type 2
Installationtype :
Wall-mounted
Station Size :
180x180x85 (mm)
Payment Terms :
T/T
Current :
16A/32A
Led Indicator :
RGB
Supply Ability :
1,000 units per month
Delivery Time :
25~35 days
Output Current :
32A
Installation :
Wall Mounted
Model Number :
ZB23
Brand Name :
OEM/ODM/White-label
Charging Type :
TESLA NACS
Place of Origin :
PRC
Start Mode :
RFID card swipe / APP optional
Ip Degree :
IP65
Application :
Home Use/Commercial Use
Description
ZB23 Electric Vehicle Charger

These are some of our new AC EV charger designs. The internal PCBA motherboards are the same as our regular models – only the exteriors/enclosures are new, and they’re waiting for mold development.

If none of these designs really catch your eye, we can also create a completely new exterior based on your ideas. And yes, we can even rework the PCB main control board of EV chargers if you have specific technical requirements – just tell us what you need.

Key Features

• High compatibility with charging ports and protocols of new energy vehicles

• Multiple intelligent detection with real-time voltage/current monitorin

• Precise battery calculation with comprehensive safety protection

• 3-color LED indicator displays standby, charging, and fault status

• Multiple authorization modes: plug-and-charge, card swipe & APP appointment

• Multiple charging modes including auto full charge and timed charging

• Supports OCPP1.6 protocol, compatible with customer-specified standard OCPP platform

Model

ZB23-X007KXX-X001

ZB23-U09K6XX-X001

ZB23-X011KXX-X001

ZB23-X011KXX-X001

Operating Voltage

AC220V±20%(CN)
AC230V±10%(EU)
AC240V±15%(US)

AC240V±15%(US)

AC380V±20%(CN)
AC400V±10%(EU)
AC240V±15%(US)

AC380V±20%(CN)
AC400V±10%(EU)

Operating Frequency

50/60Hz±1Hz

Rated Power

7kW

9.6kW

11kW

22kW

Operating Current

32A

40A

48A/16A(Three-phase)

32A(Three-phase)

Communication Mode

RFID, WIFI&Bluetooth, 4G, Ethernet

Cable Length

3.5m/5m/7m/7.5m

Operating Temperature

-30~+50°C/5%~95%RH

Overall Dimensions

256mmX256mmX95.5mm

Ingress Protection Grade

IP65

Leakage Protection

Type A+DC6mA(CN)/Type A RCBO AC 30mA +1Δdc 6mA(EU)/CCID20(US)

Certifications & Compliance

• Compliant with ETL & CETL, FCC, TÜVmark, CE and CCC certifications
