400V IEC 62196 OCPP V1.6J Wallbox Commercial EV Charger
400V IEC 62196 OCPP V1.6J Wallbox Commercial EV Charger
400V IEC 62196 OCPP V1.6J Wallbox Commercial EV Charger
400V IEC 62196 OCPP V1.6J Wallbox Commercial EV Charger
400V IEC 62196 OCPP V1.6J Wallbox Commercial EV Charger
400V IEC 62196 OCPP V1.6J Wallbox Commercial EV Charger
Specifications
Brand Name :
ARK
Model Number :
AKEV22
Certification :
CE
Place of Origin :
China
MOQ :
5unit
Price :
750USD/unit
Payment Terms :
T/T
Supply Ability :
500 units per month
Delivery Time :
30 days
Packaging Details :
Carton
Power :
22KW
Input Voltage :
3-phase 400V
Input Current :
32A
Output Voltage :
400V
Output Current :
32A
OCPP :
Yes, V1.6J
Description
Overview
Quick Details
Place of Origin:
Jiangsu, China
Model Number:
AKEV22
Brand Name:
ARK or OEM
Input Voltage Range:
400Vac +/-10%, 3-phase
Input Frequency Range:
50Hz/60Hz
Output Voltage Range:
400Vac +/-10%, 3-phase
Output Current Range:
0 to 32A
Rated Output Power:
22kW
Warranty:
12 Months
Working Humidity:
5%-95%
Working Temperature:
-30° C to +50° C
Efficiency:
>94%

Packaging & Delivery


Selling Units:Single item
Single package size:50X30X20 cm
Single gross weight:14.000 kg

Product Introduction

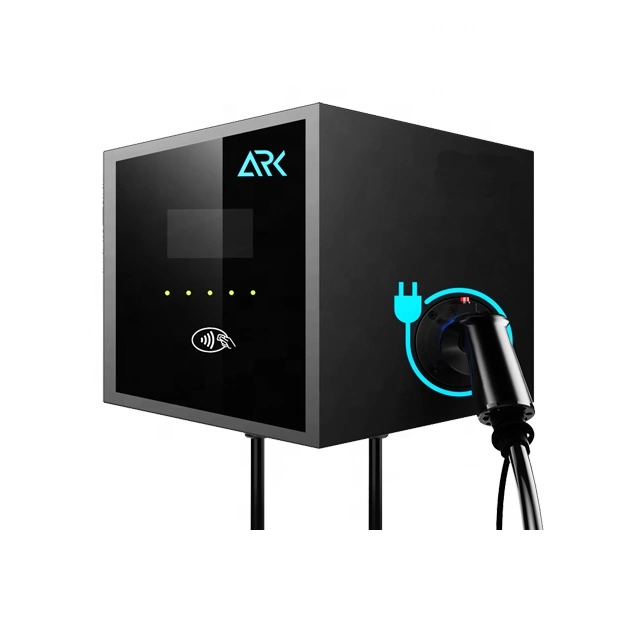

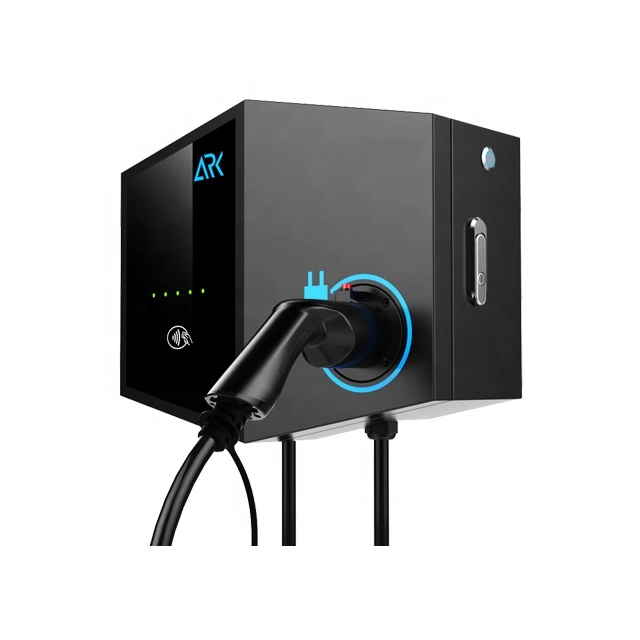

ARK 22kW 32A 3-phase AC Type-2 Wallbox EV Charger with OCPP V1.6J

Ark IEC 61851 Type-2 Socket Output Electric Car Charger Station with 22kW 32A 3-phase Output and OCPP comes up with modern design for commercial and public charging. Embedded with RFID, Ethernet and LTE features makes it best suitable for mall and company charging applications. Compliant with OCPP 1.6J protocol enables it to be connected and operated with global EV charging management platform.

Product Parameters
Specification
Model
AKEV22
Structure
Application scenes
Commercial/Public charging station
Housing material
Metal enclosure
Dimension

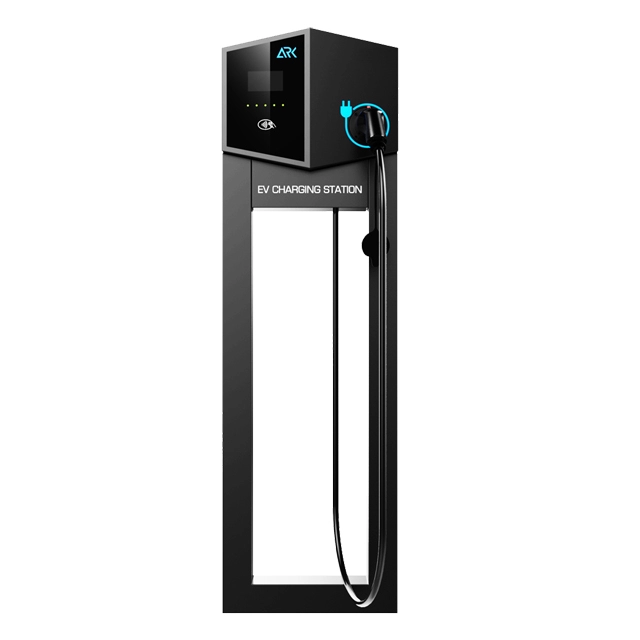

300*450*160mm, 1200*450*160mm (pedestal mount)
Installation method
Wall mounting/Pedestal mounting(optional)
Cable routing
Bottom inlet wiring
Weight
N.W.: 11kg
Outlet type
Type-2 socket or connector
Cable outlets
1
Electrical specifications
input voltage
400Vac +/-10%, 3-phase
Input frequency
50Hz/60Hz
Rated power
22kW
Output voltage
400Vac +/-10%, 3-phase
Output current
32Adc
Efficiency
≥ 95%
Power factor
≥ 0.99
Function design
User interface
RFID, LCD Display
Charging standards
IEC 62196 Type-2
Communication
PWM, Ethernet, LTE, OCPP 1.6J
Environment condition
Application place
Indoor/Outdoor
Working temperature
-30 °C – +50 °C
Working humidity
5% – 95% non-condensation
Altitude
<2000m
Protection grade
IP55
Cooling
Natural cooliing
MTBF
100,000 hours
Safety standards
Compliant with CE, EN 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001
Security design
Over/under voltage protection, overload protection, current leakage protection, grounding
protection, lightening surge protection
Product Details Show
400V IEC 62196 OCPP V1.6J Wallbox Commercial EV Charger
400V IEC 62196 OCPP V1.6J Wallbox Commercial EV Charger
400V IEC 62196 OCPP V1.6J Wallbox Commercial EV Charger
