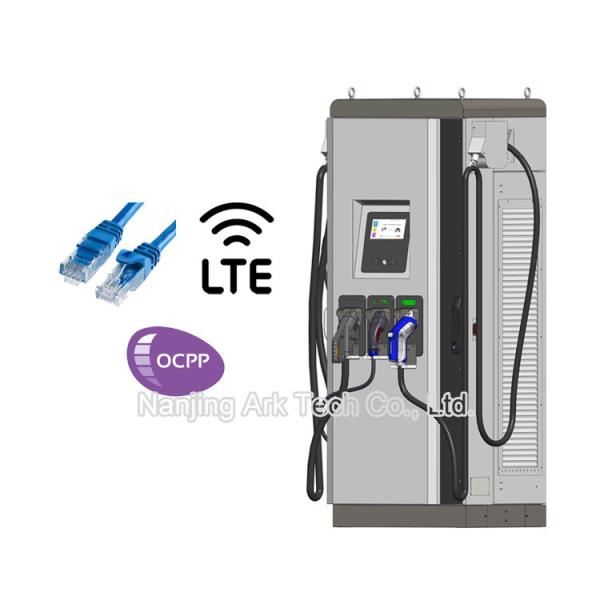

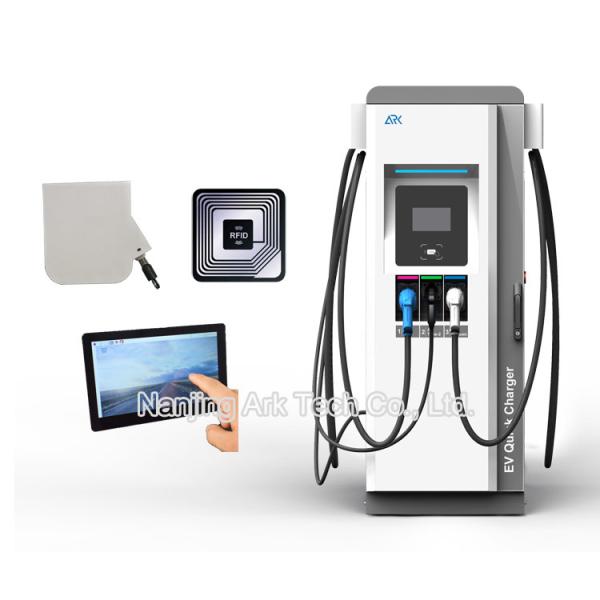

Fan cooling Mode 4 150-750V CE EV Fast Charging Stations
Fan cooling Mode 4 150-750V CE EV Fast Charging Stations
Fan cooling Mode 4 150-750V CE EV Fast Charging Stations
Fan cooling Mode 4 150-750V CE EV Fast Charging Stations
Specifications
Brand Name :
ARK or OEM
Model Number :
EF160CJ082
Certification :
CE
Place of Origin :
Jiangsu,China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 sets per month
Delivery Time :
45 days
Packaging Details :
wooden box
Warranty :
2 years
Input voltage range :
400Vac +/-10%, 3-phase
Housing material :
Metal
Output power :
CCS: 60kW, CHAdeMO: 60kW, AC: 22kW
Efficiency :
>94%
Charging standard :
CCS combo-1/2, CHAdeMO & AC IEC 61851
Description

Ark CCS CHAdeMO DC Fast EV Charging Station with 60KW DC Output 150-750V Voltage and CE

Product Introduction

The eFlex DC fast charging station adopts modern design, which conforms to the aesthetics of European and American customers.With big power, it is suitable for fast charging applications in highway and oil stations. It supports the OCPP1.6J protocol, which enables it to be connected and run with the global EV charging management platform.

Product Parameters

System
Housing material Metal enclosure
Dimension (H x W x D) 1900 x 700 x 700mm
Installation method Ground mount
Cable routing Bottom inlet, top outlet wiring
Weight 355kgs
Charging standard CCS combo-1/2, CHAdeMO & AC IEC 61851
Charging outlet CHAdeMO JEVS G105, CCS Combo-2, IEC 62196 Type-2
Outlet number 3
Input
Input voltage 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Power factor 0.99
Output
Rated output power CCS: 60kW, CHAdeMO: 60kW, AC: 22kW CCS: 120kW, CHAdeMO: 60kW, AC:22kW
Measuring accuracy Level 0.5
Output voltage range 150 – 750V DC constant output @ above 300V, 400V AC
Output current range 0 - 200A DC, 32A AC 0 - 400A DC, 32A AC
Efficiency > 94% at rated output
General
Charging type Mode 4
User Interface RFID, 7” touch screen, Emergency button
Ethernet 10/100 BaseTX (TCP-IP)
Cellular LTE modem, GPRS/3G/4G
Communication CAN, PLC, PWM, OCPP 1.6 JSON
Application place Indoor/Outdoor
Working temperature -20 °C – +70 °C
Working humidity 5% – 95% non-condensation
Altitude < 2000m
Protection grade IP54
Cooling Fan cooling
Security design Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection

Fan cooling Mode 4 150-750V CE EV Fast Charging StationsFan cooling Mode 4 150-750V CE EV Fast Charging Stations

Features

1. Smart Communication Protocol
- Communication protocol meets OCPP 1.6J, which has successfully connected with many European operators due to its good compatibility.

- The back office system is equipped with remote upgrading, message duplicating, fault diagnosis, intelligent charging and other functions.

2. Multiple Charging Mode
- Totally four charging modes of automatic charging, reservation charging, ration charging and SOC charging could be selected according to actual situation. Start methods of plug and charge, by RFID card, by APP and by pressing start button could also be set freely aims to meet different requests of various customers.

3. Easy-to-control HMI Interface
- English, Italian, Czech, French and Spanish version HMI interface adopted, various languages could be selected. Computer back office system, Mobile apps and HMI interface could be selected to monitor the charging state and related parameters could be supplied for effective judgment.

4. Perfect Security Protection
- Protect Functions: Overvoltage, over current, input/output default phase, residual current protection, inverse time limit when motor overload, etc

Company Details

The foresight of the Ark Technology team can provide you with stable and reliable DC charging solutions and services. With rich experience and knowledge in electrical and digital power supply, we provide you with the most professional and practical project implementation guide. Our products have passed various application scenarios and laboratory standard tests. You can purchase our charging station products without any worries and get our professional service support.

Fan cooling Mode 4 150-750V CE EV Fast Charging Stations

FAQ

Q: Do your charger support the OCPP function?

Yes, our charger support the OCPP 1.6, it can be connected to Internet via Ethernet, 3G/4G.

Q: How about the quality and warranty about the charger?

All of our chargers are CE certificated. We supply 24 months warranty for the charger, what'more, we supply whole life techinical support.

NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
