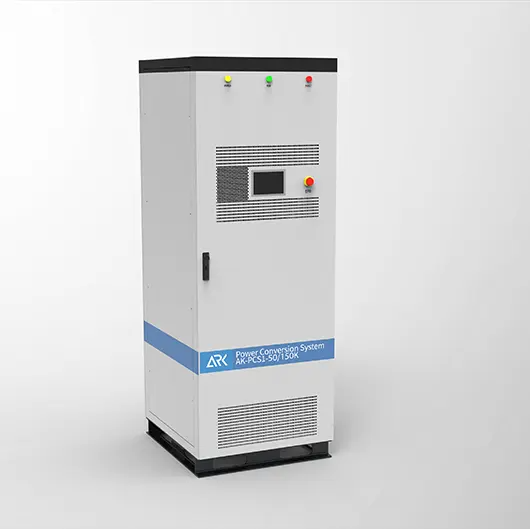

Solar PV Directly Connection Power Save AC/DC Converter PCS Power Conversion System
Solar PV Directly Connection Power Save AC/DC Converter PCS Power Conversion System
Specifications
Brand Name :
ARK
Model Number :
PCS
Certification :
CE
Place of Origin :
CHINA
MOQ :
1UNIT
Payment Terms :
L/C, T/T
Delivery Time :
15
Application :
Power Conversion
Communication Interface :
RS485/Ethernet
Control Method :
DSP
Cooling Method :
Air/Water
Efficiency :
95%
Frequency :
50/60Hz
Input Voltage :
AC/DC
Mounting Type :
Wall/Rack
Output Voltage :
DC
Power Rating :
10kW
Product Type :
Electronic Device
Protection Level :
IP65
Warranty :
2 years
Description

Solar PV Directly Connection Power Save AC/DC Converter PCS Power Conversion System

Products Description

Solar PV Directly Connection Power Save AC/DC Converter PCS Power Conversion System

Product Paramenters

Model type
AK-PCS1-50K
AK-PCS1-100K
AK-PCS1-150K
Utility-interactive Mode
Battery Voltage Range
600 – 900 V
Max. DC Current
110 A
220A
330A
Max. DC Power
55 kW
110 kW
165 kW
AC Voltage
400 V +/- 15%
AC Current
72 A
144 A
216 A
Nominal AC Output Power
50 kW
100 kW
150 kW
AC Frequency
50 Hz / 60 Hz +/-2.5 Hz
Output THDi
≤ 3%
AC PF
-1 to 1
Stand-alone Mode
Battery Voltage Range
600 – 900 V
Max. DC Current
110A
220A
330A
AC Output Voltage
400 V +/- 10%
AC Output Current
72 A (Max. 79 A)
144 A (Max. 158 A)
216 A (Max. 237 A)
Nominal AC Output Power
50 kW
100 kW
150 kW
Max. AC Power
55 kW
110 kW
165 kw
Output THDu
≤ 3% (Linear load)
AC Frequency
50 Hz / 60 Hz
Overload Capability
110%: 10 min
120%: 1 min
Physical
Peak Efficiency
≥ 97%
Cooling
Forced Air Cooling
Noise
≤ 70 dB
Enclosure
IP20 (IP54 optional with outdoor cabinet)
Max. Elevation
3000 m (> 2000 m derating)
Operation Ambient Temperature
-20°C – +50°C, derating over 45°C
Humidity
5% – 95% non-condensation
Dimension (H x W x D)
2100 mm X 800 mm x 1000 mm
Weight
700 KGS
1000 KGS
1100 KGS
Installation
Vertical Installation
Other
Isolation
Built-in Transformer
Protection
OTP, AC OVP / UVP, OFP / UFP, AC Phase Reverse, Fan/Relay Failure, OLP, GFDI, Anti-islanding
AC Connection
Grid connected: 3-phase + PE
Off-grid: 3-phase + N + PE
Display
10.1” Touch Screen
Support languages
English (other languages upon request)
Communication
RS 485, CAN, Ethernet
