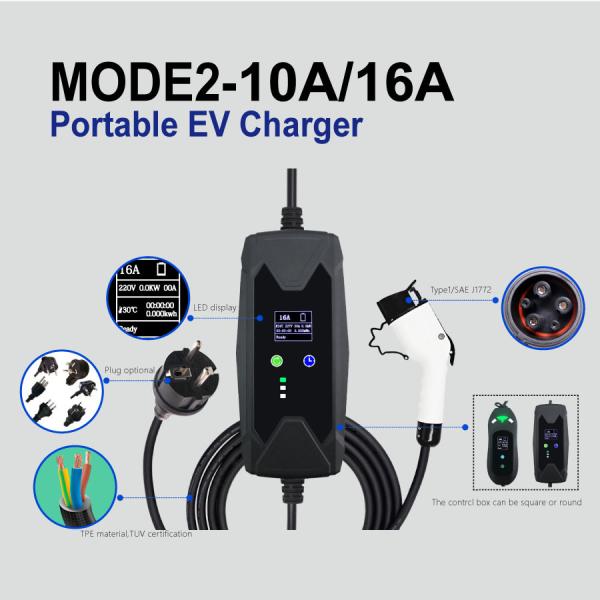

IP55 EV Car Charging Station 3 Pin Plug Ev Charger SAEJ1772 IEC62196
IP55 EV Car Charging Station 3 Pin Plug Ev Charger SAEJ1772 IEC62196
Specifications
Product Name :
AC EV Charger Station
Charging Port :
no USB port
RCD :
Type A
Charging Standard :
SAE J1772/IEC 62196
Start Mode :
Automatic/Card/APP
Enclosure Rating :
IP55
Communication Interface :
Ethernet/4G(Optional)
Function :
APP Control, screen display, Voltage Monitoring, Lighting-proof, overheat protection, overcurrent protection, overvoltage protection
Description

IEC62196 Waterproof IP65 Electric Car Charging Wallbox 32A 1 Phase AC EV Charger Station With APP

* Compact design
Attractive appearance, 7‘ LCD screen, simple but elegant.
* Full protection
Full electrical protection, over/under temperature protection, Protection
against lightning, leakage, short circuit, over current, etc.
* Stable
IP65 protection grade, capable for harsh environment, salt-mist condition.
* Intelligent
4G/ethernet/Wifi/ Background monitoring, RFID/QR payment support.
* European standard
OCPP v1.6 standard open communication protocol, IEC62196-2 type 2 connector.
* Easy to install and operation
Wall-mounting or pole-mounting optional.

Wallbox Product parameters
Product Name
7kw 11kw 22kw Wallbox
standrd
IEC standard
certificates
TUV,UKCA,CE,FCC
Product Type
FE-AM3-16
FE-AM3-16P3
FE-AM3-32
FE-AM3-32P3
AC Voltage Power Input
240v±10%
380V±10%
240v±10%
380V±10%
AC Power Output
16A/3.5kw
16A/11KW
32A/7KW
32A/22KW
Current Adjustable
8-16A
8-16A
8-32A
8-32A
Rated Frequency
50/60HZ
Charging Connector
IEC 62196-2 (Type 2/Mennekes) plug
Connector Type
SAE J1772 (Type 1)
IEC 62196-2 (Type 2)
Internet Connection
NFC/wifi
Insulation resistance:
>1000MΩ(DC500V)
Contact Resistance
0.5mΩMax
Operating temperature
-30℃~+50℃
Protection:Type B RCD
Over Voltage Protection
yes
Under Voltage Protection
yes
Over Load Protection
yes
Short Circuit Protection
yes
Earth Leakage Protection
yes
Ground Protection
yes
ver-temp Protection
yes
Surge Protection
yes
Charging Cable Length
5m or Customize Length
Application
AC Home Charging
IP Degree
IP55
Control:
Auto/Button/Card
Withstand voltage:
2000V
Contact Resistance
0.5mΩMax
Mechanical life
no-load plug in / pull out > 10000times


The charging pile is adopt the column-type or wall-mounted type. The frame is stable and the convenient
installation and construction . The friendly human-computer interaction interface makes the operation
easier and the modular design makes the long-term maintenance convenient, therefore, it is an efficient AC
charging device for new energy vehicles with AC chargers.
