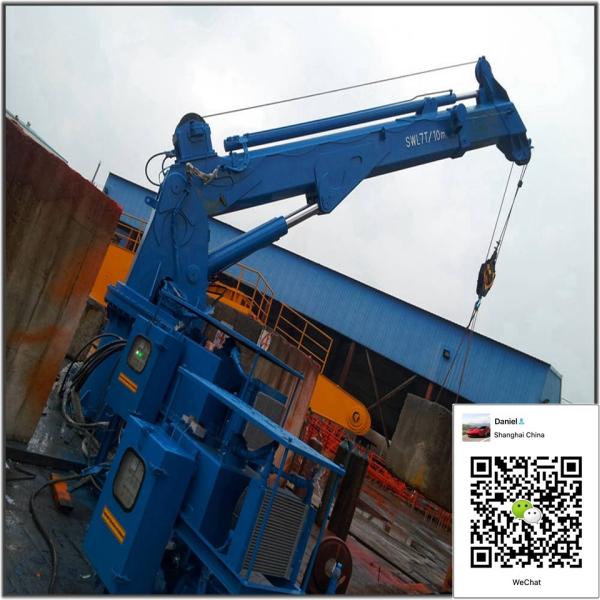

Manufacturer for Hydraulic Telescopic Boom Boat Deck Crane for sale
Manufacturer for Hydraulic Telescopic Boom Boat Deck Crane for sale
Manufacturer for Hydraulic Telescopic Boom Boat Deck Crane for sale
Manufacturer for Hydraulic Telescopic Boom Boat Deck Crane for sale
Manufacturer for Hydraulic Telescopic Boom Boat Deck Crane for sale
Manufacturer for Hydraulic Telescopic Boom Boat Deck Crane for sale
Specifications
Brand Name :
HAOYO
Model Number :
HAOYO
Certification :
BV,CCS,NK,ABS,LR,DNV
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T,L/C
Supply Ability :
300 UNITS
Delivery Time :
90days
Packaging Details :
NUDE
Price :
30000USD/SET
Color :
as required
Use Situation :
New
Operation formal :
Ground operation
Shipment Packaging :
According to The Export Standards
Trademark :
HAOYO
Origin :
Shanghai
Sling Type :
Wire Rope
Lifting Range :
140 UP TO 12000 KNM
Certificate :
ABS,BV,CCS, DNV,LR,NK,ISO
Description

Telescopic boom cranes can be hydraulic extended and retracted without a knuckle

function.These cranes should always be executed with a hoisting winch installation.

1.Telescopic Marine Crane is composed of base, arm frame, tower, hydraulic winch,

telescopic oil cylinder, Amplitude oil cylinder, hydraulic rotary mechanism, operating

platform, hydraulic transmission parts, electric controlling part and etc.

2.The base is cylinder structure, can be welded on the deck, also can connect with

deck by high strength bolts. Connection mode must to be marked.

3.Arm frame and tower are box structure. Hydraulic winch controls the goods rising

and drop. Telescopic oil cylinder controls level the telescopic crane boom. Amplitude

oil cylinder controls goods correct hook-on point and landing point.

4. Swing mechanism for controlling crane turning right or left turn. Operation platform

is used for operation and maintenance debugging. Hydraulic transmission parts for

the system to provide pressure oil; The electrical control system mainly control motor

stops, operation.

Manufacturer for Hydraulic Telescopic Boom Boat Deck Crane for sale

Drawing(Manufacturer for Hydraulic Telescopic Boom Boat Deck Crane for sale)

Manufacturer for Hydraulic Telescopic Boom Boat Deck Crane for sale

Technical Parameters(Manufacturer for Hydraulic Telescopic Boom Boat Deck Crane for sale)

MODEL Safety Load
(KN)		 Max Outreach
(m)

Lifting Speed

(m/min)

 Slewing Speed
(r/min)		 Luffing Time
(s)		 Hoisting Height
(m)		 Slewing Angle(°) Permissible Heeling(transverse/
longitudinal)(°)

Power

(kW)
10 10 6~20 15 1 60 30 360° 2° /5° 7.5
15 15 8~22 15 1 60 30 360° 2° /5° 11
20 20 5~24 15 1 60 30 360° 2° /5° 15
30 30 8~25 15 0.9 70 30 360° 2° /5° 22
50 50 12~25 15 0.75 80 30 360° 2° /5° 37
80 80 12~25 15 0.75 100 40 360° 2° /5° 55
100 100 12~25 15 0.75 110 40 360° 2° /5° 75
150 150 12~28 15 0.6 110 30 360° 2° /5° 90
200 200 16~30 15 0.6 120 35 270° 2° /5° 75*2
250 250 20~35 15 0.5 130 40 270° 2° /5° 90*2
300 300 35 15 0.4 140 40 270° 2° /5° 90*2
350 350 20~40 15 0.5 150 45 360° 2° /5° 110*2
400 400 20~40 15 0.5 150 45 360° 2° /5° 140*2
450 450 25~40 15 0.45 160 50 360° 2° /5° 140*2
500 500 20~40 15 0.45 170 50 360° 2° /5° 165*2

Processing Flow(Manufacturer for Hydraulic Telescopic Boom Boat Deck Crane for sale)

Manufacturer for Hydraulic Telescopic Boom Boat Deck Crane for sale

Certifications(Manufacturer for Hydraulic Telescopic Boom Boat Deck Crane for sale)

Manufacturer for Hydraulic Telescopic Boom Boat Deck Crane for sale

Packing & Delivery(Manufacturer for Hydraulic Telescopic Boom Boat Deck Crane for sale)

Manufacturer for Hydraulic Telescopic Boom Boat Deck Crane for sale

About us(Manufacturer for Hydraulic Telescopic Boom Boat Deck Crane for sale)

Manufacturer for Hydraulic Telescopic Boom Boat Deck Crane for sale

Contact Us

Mr Daniel ---Foregin trademan

Mb: 0086-15656005075

Email: daniel@haoyogroup.com

OFFICE ADD: NO. 500, JIANYUNRD,PUDONG,SHANGHAI

FACTORY ADD: INDUSTRIAL PARK, CHANGSHU, JIANGSU

Web: www.haoyogroup.com
