Fully Enclosed Post Type Current Transformer For GIS 10kV 20kV And 35kV
Fully Enclosed Post Type Current Transformer For GIS 10kV 20kV And 35kV
Specifications
Rated Primary Current (A) :
5-3150
Place of Origin :
China
Rated Output (VA) 10P :
24.5
Rated Output (VA) 0.2/0.2S :
20~30
Brand Name :
EUE Power
Payment Terms :
L/C, T/T, DDP, DDU
Rated Output (VA) 0.5/0.5S :
20~30
Price :
Negotiable
Accuracy Limit Factor :
10 or 15
Packaging Details :
Different packaging methods are adopted according to different modes of transportation
Rated Secondary Current (A) :
5 or 1
Accuracy Class Combination :
0.5(S)/10P10, 0.2(S)/10P10, 0.5(S)/10P15, 0.2(S)/10P15, 0.5(S)/10P20, 0.2(S)/10P20, 0.2(S)/0.5(S)/10P10, 0.2(S)//10P10/10P10, 0.5(S)/10P10/10P10
Product Name :
Post-type Current Transformer
Description

LZZBJ Post-type Current Transformer for GIS

The LZZBJ Post-type Current Transformer for GIS is a fully enclosed, epoxy resin cast-insulated pillar-type current transformer. Engineered for high performance in AC power systems (50Hz or 60Hz) with rated voltages up to 10kV, 20kV, and 35kV.

Core Advantages & Applications

Versatile Utility: Ideal for current measurement, electrical energy metering, and relay protection.
Robust Design: Features high output capacity for demanding electrical environments.
Reliability: Excellent dynamic and thermal withstand capability for system safety.

Overview

The LZZBJ Post-type Current Transformer for GIS is a fully enclosed, epoxy resin cast-insulated pillar-type current transformer, suitable for AC power systems with a rated frequency of 50Hz or 60Hz and rated voltages up to 10kV, 20kV, and 35kV. It is designed for current measurement, electrical energy metering, and relay protection applications.

Fully Enclosed Post Type Current Transformer For GIS 10kV 20kV And 35kV

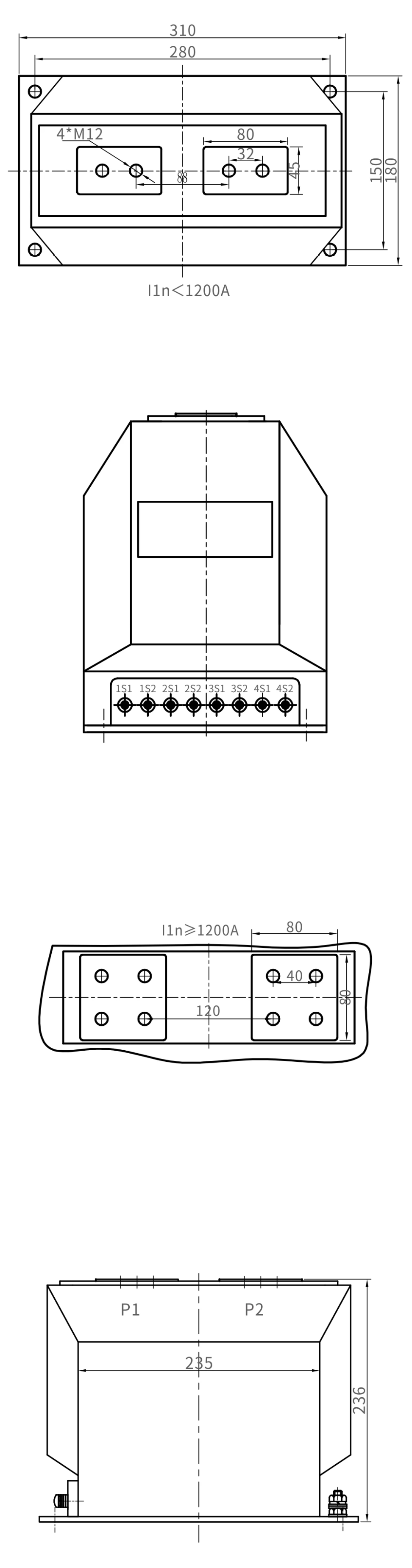

Structural Features

Fully Enclosed Post Type Current Transformer For GIS 10kV 20kV And 35kV

Performance Advantages

This current transformer is a fully enclosed pillar-type current transformer with epoxy resin cast insulation. It is suitable for AC power systems with rated frequencies of 50/60 Hz and rated voltages of 10 kV and below.

The product is used for current measurement, energy metering and relay protection. With high output capacity and excellent dynamic and thermal withstand capability, it is an ideal choice for customers with advanced technical requirements.

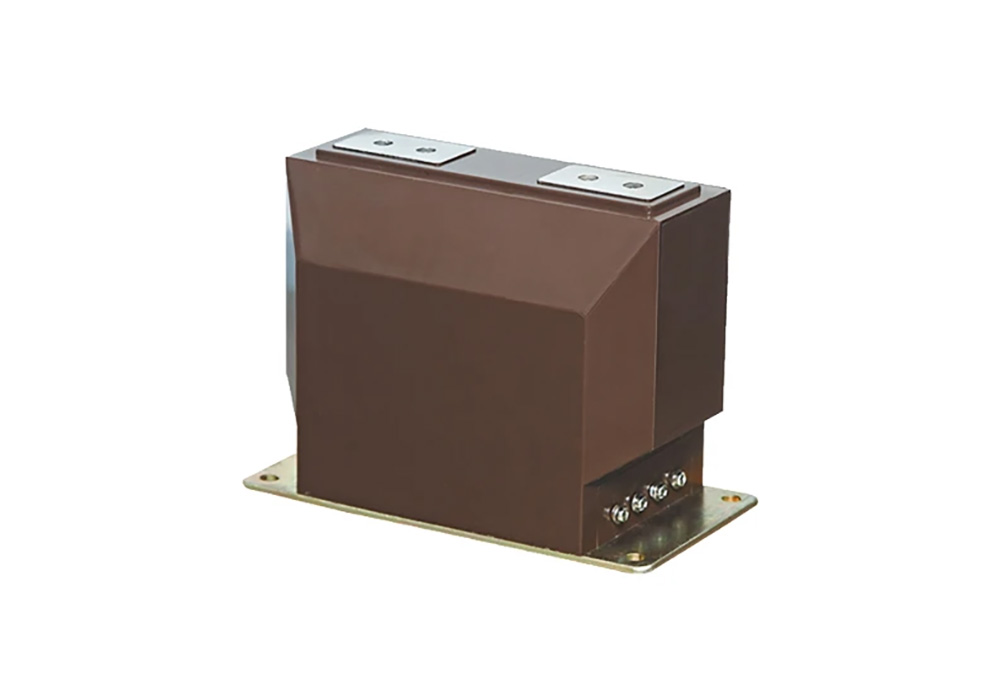

Product Photos

Fully Enclosed Post Type Current Transformer For GIS 10kV 20kV And 35kV

Technical Parameters

Rated Primary Current (A) Rated Secondary Current (A) Accuracy Class Combination Rated Output at Corresponding Accuracy Class (VA) Accuracy Limit Factor Rated Short-Time Thermal Current (kA) (rms) Rated Dynamic Stable Current (kA) (Peak)
0.2 / 0.2S 0.5 / 0.5S 10P
5~200 5 or 1 0.5(S)/10P10
0.2(S)/10P10
0.5(S)/10P15
0.2(S)/10P15
0.5(S)/10P20
0.2(S)/10P20
0.2(S)/0.5(S)/10P10
0.2(S)//10P10/10P10
0.5(S)/10P10/10P10		 10 20 20 10 or 15 90I1n 225I1n
300 20~30 24.5 61.25
400
500 32 80
600
800 15 20
1000 50 125
1200
1500 20 30 63 157.5
2000
2500
3000
3150
Note: If the parameters required by the user exceed the range specified in the above table, please consult with our customer care team.
