Specifications
Nominal Capacity :
200Ah
MOQ :
10
Price :
Negotiable
Cell Type :
LFP
Payment Terms :
L/C, T/T, DDP, DDU
Packaging Details :
Different packaging methods are adopted according to different modes of transportation
Product Model :
ES‑BOX12 MAX+
Place of Origin :
China
Brand Name :
EUE Power
Nominal Energy :
16.08kWh
Nominal Voltage :
51.2V
Product Name :
51.2V 10.24kWh Wall Mounted Energy Storage
Description

ES-BOX12 Series 51.2V 10.24kWh Energy Storage System

The ES-BOX12 series provides high-performance, safe, and stable energy storage solutions. Featuring an intelligent Smart BMS that identifies master-slave battery addresses automatically, this series is designed for flexibility, low internal resistance, and long-term reliability.

  • Smart Management: Intelligent master-slave identification with remote O&M capabilities.
  • Easy Maintenance: Compact, lightweight design for rapid installation.
  • Deep Cycle Performance: ≥8000 Cycles (25℃±2℃, 0.5C, 80% DOD @65% EOL).
  • Reliable Warranty: Up to 5 years of manufacturer coverage.

Product Advantages

  • Smart BMS

    Intelligently identify the master-slave batteries auto DIP address

  • Easy maintenance

    Compact and lightweight for easy installation

  • Deep Cycle

    ≥8000 Cycles (25℃±2℃, 0.5C, 80% DOD @65% EOL)

  • Warranty

    Up to 5 years

Performance Advantages

Safe & stable

Built-in BMS provides multiple protection functions. Communication functions enable real-time data monitoring for safer and more stable operation.

Flexible & convenient

Simple design enables fast commissioning. Multiple installation options are supported for easy installation, with compatibility for multi-brand inverters.

Smart operation & management

Remote O&M improves operation efficiency, while remote diagnosis and OTA upgrades make system management more intelligent and convenient.

High performance

High cell consistency and low internal resistance ensure stable battery discharge. The system supports high-capacity charge and discharge performance.

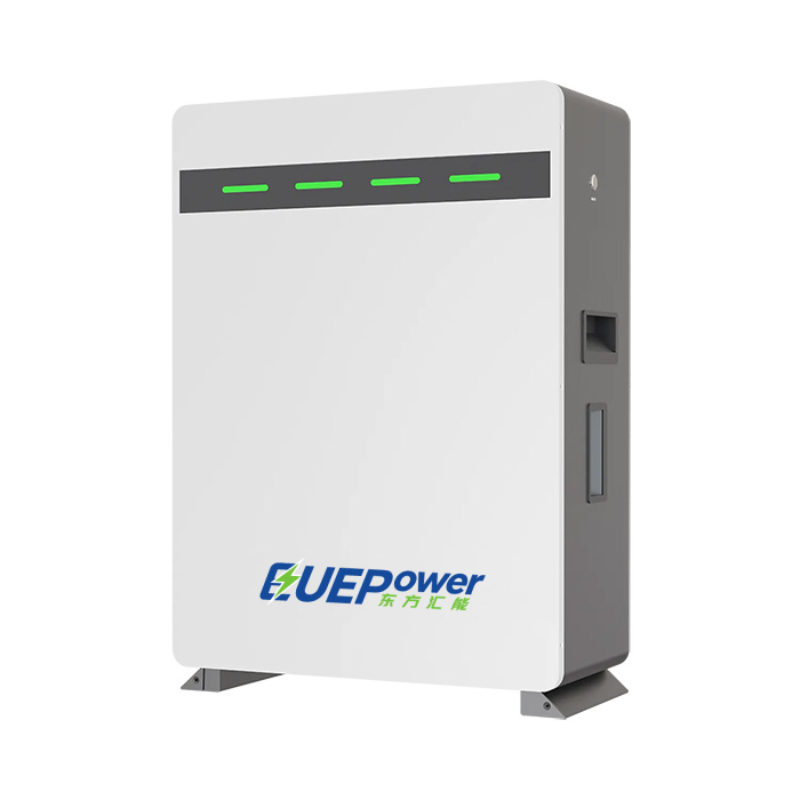

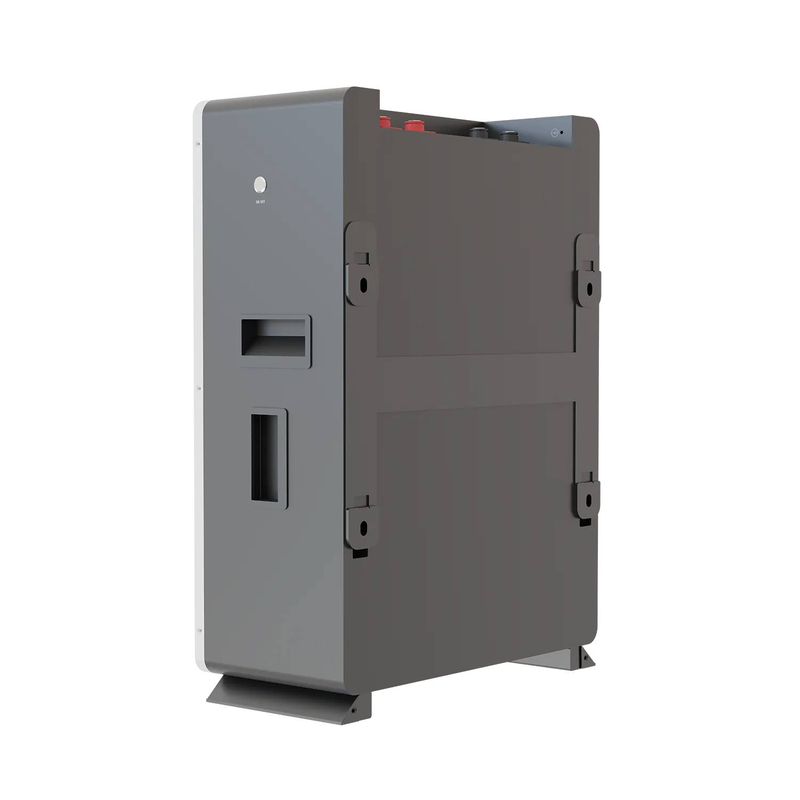

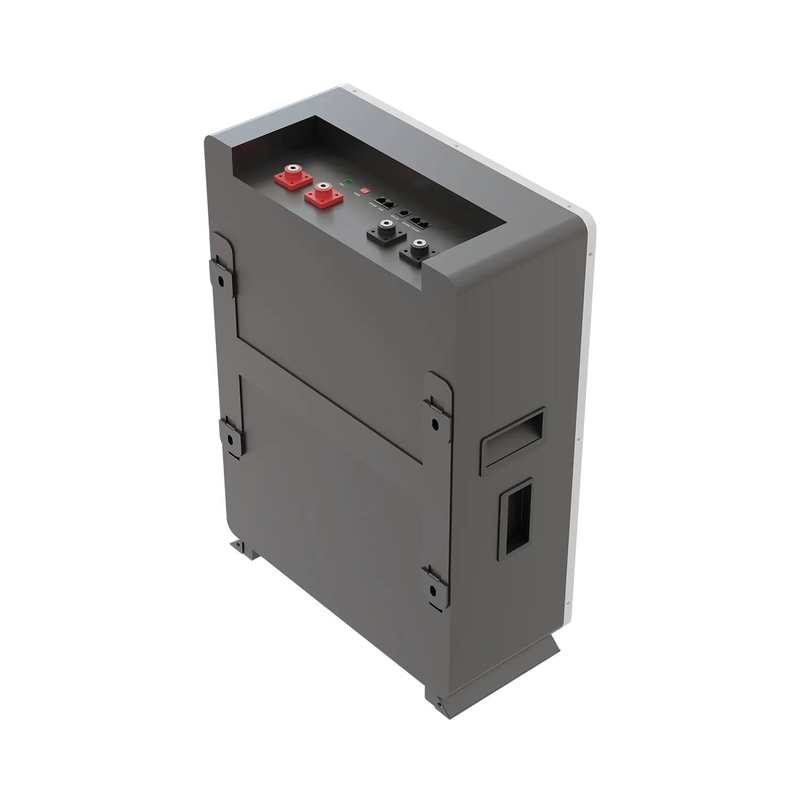

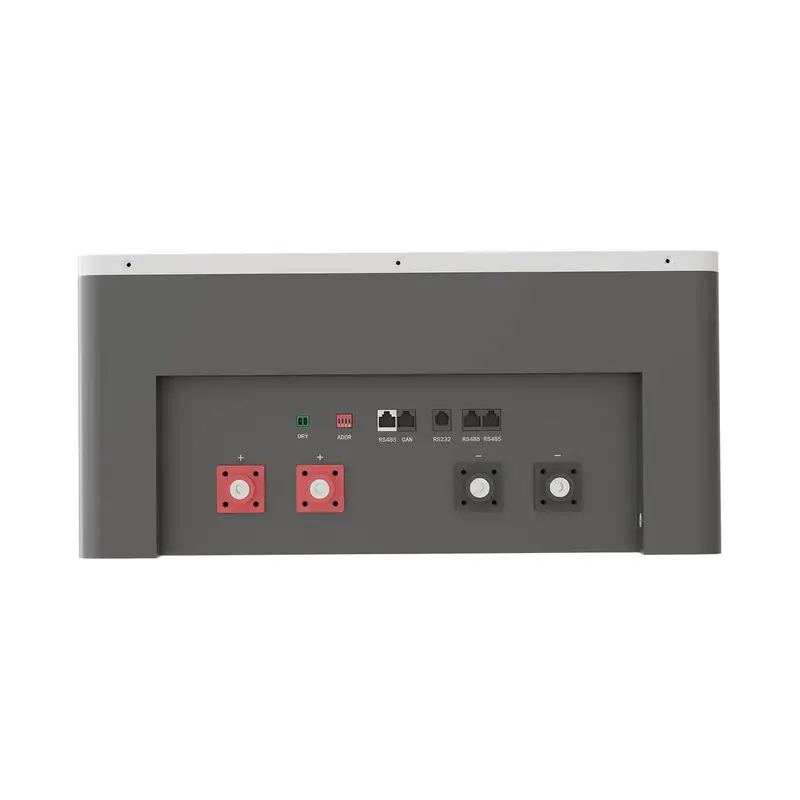

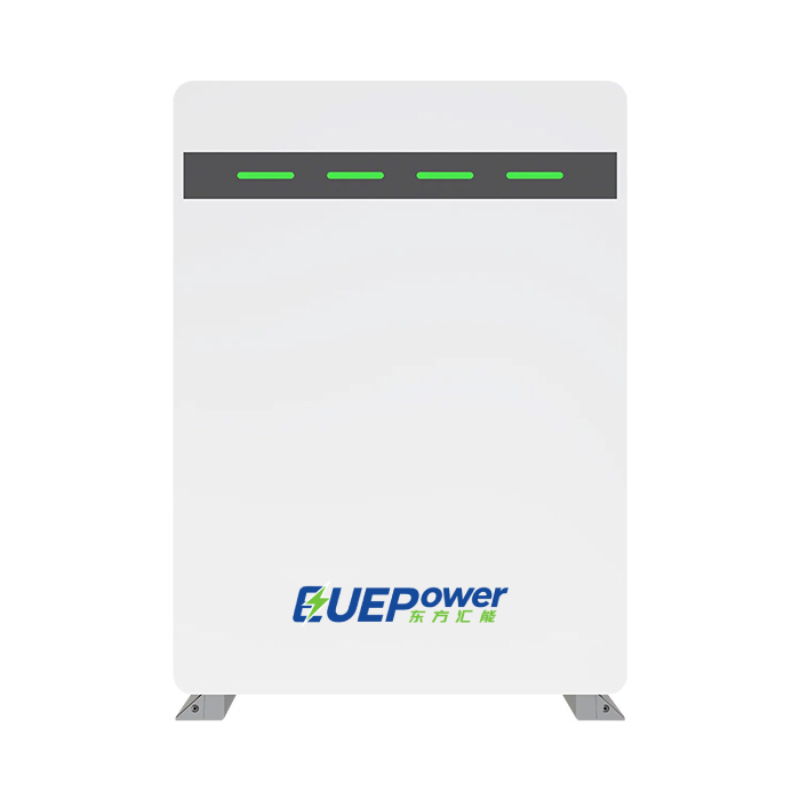

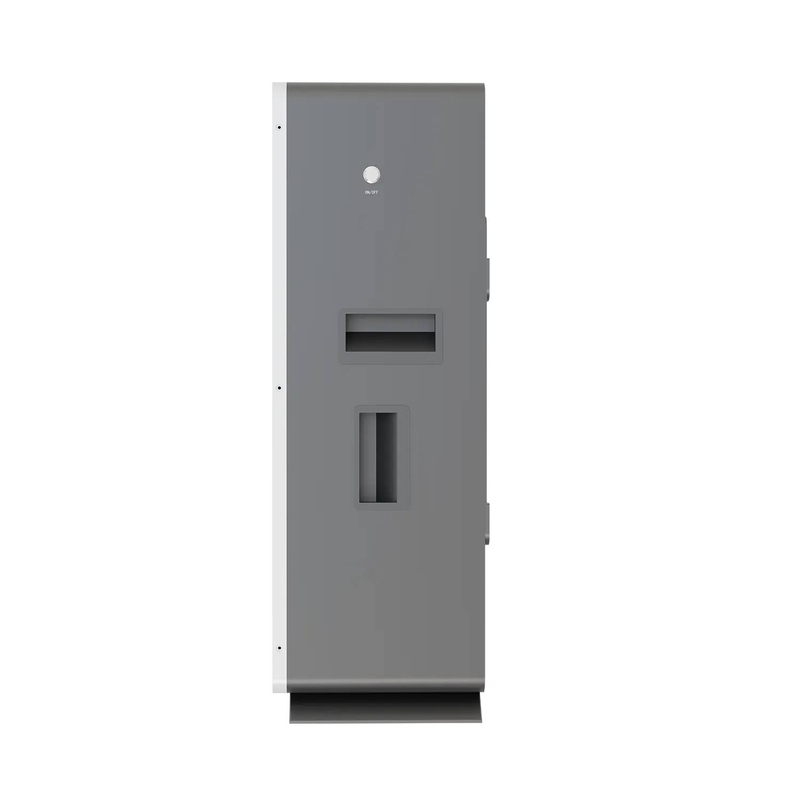

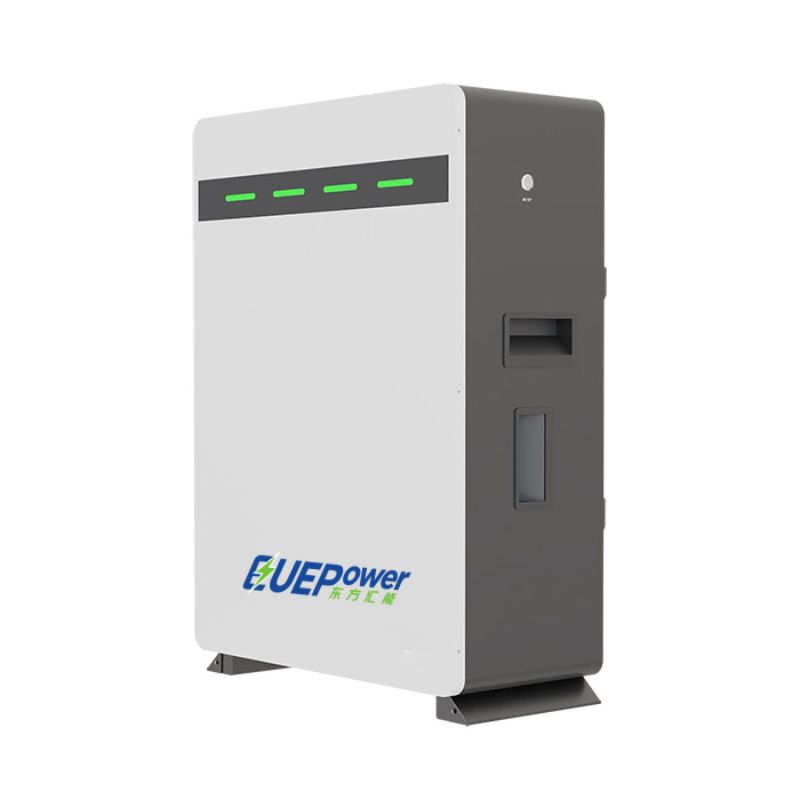

Product Photos

10.24kWh 51.2V Wall Mounted Energy Storage Residential ESS10.24kWh 51.2V Wall Mounted Energy Storage Residential ESS10.24kWh 51.2V Wall Mounted Energy Storage Residential ESS10.24kWh 51.2V Wall Mounted Energy Storage Residential ESS10.24kWh 51.2V Wall Mounted Energy Storage Residential ESS10.24kWh 51.2V Wall Mounted Energy Storage Residential ESS

Technical Parameters

Product Model ES‑BOX12 ES‑BOX12 PRO ES‑BOX12 Plus ES‑BOX12 MAX ES‑BOX12 MAX+
Nominal Energy 5.12kWh 7.68kWh 10.24kWh 14.34kWh 16.08kWh
Nominal Voltage 51.2V 51.2V 51.2V 51.2V 51.2V
Nominal Capacity 100Ah 150Ah 200Ah 280Ah 314Ah
Cell Type LFP LFP LFP LFP LFP
Standard Charge Voltage 56.8V 56.8V 56.8V 56.8V 56.8V
Max Discharge Current 100A 150A 150A 200A 200A
Discharge Cut‑Off Voltage 44.8V 44.8V 44.8V 44.8V 44.8V
Parallels Function Support 16 Units In Parallels (All Models)
Communication Interface RS485/USB/RS232/CAN (All Models)
Cycle Life ≥8000 Cycles(25°C±2°C,0.5C,80%DOD@65%EOL) ≥10000 Cycles(25°C±2°C,0.35C,80%DOD@65%EOL)
Charge temperature range 0‑55℃ 0‑55℃ 0‑55℃ 0‑55℃ 0‑55℃
Discharge temperature range -20‑55℃ -20‑55℃ -20‑55℃ -20‑55℃ -20‑55℃
Certification Pack: CEI 0‑21/CE/IEC 62619/UL1973 by Intertek/MSDS/UN38.3 Cell: UL 1642/IEC 62619/CE/EMC/ROHS/MSDS/UN38.3 (All Models)
Dimensions 480600150mm 480650180mm 480650225mm 490840242mm 490840242mm
Weight 52Kg 69Kg 89Kg 123Kg 127Kg
Installation method Wall Mounted/Floor Standing (All Models)
Warranty 5 Years(Under Warranty Terms) (All Models)
Energy Throughput 1 11MWh 16MWh 22MWh 31MWh 35MWh
Optional WiFi Remote Monitoring (All Models)
