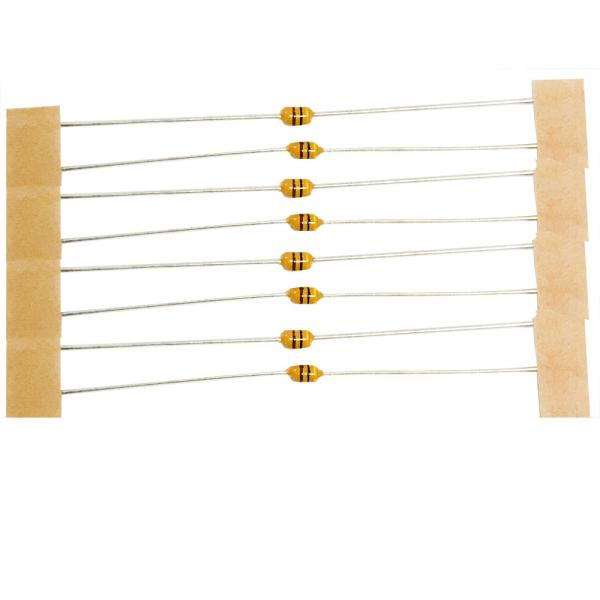

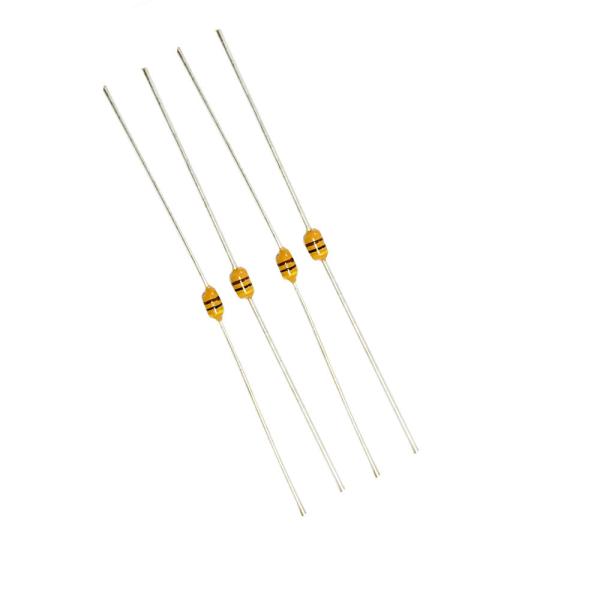

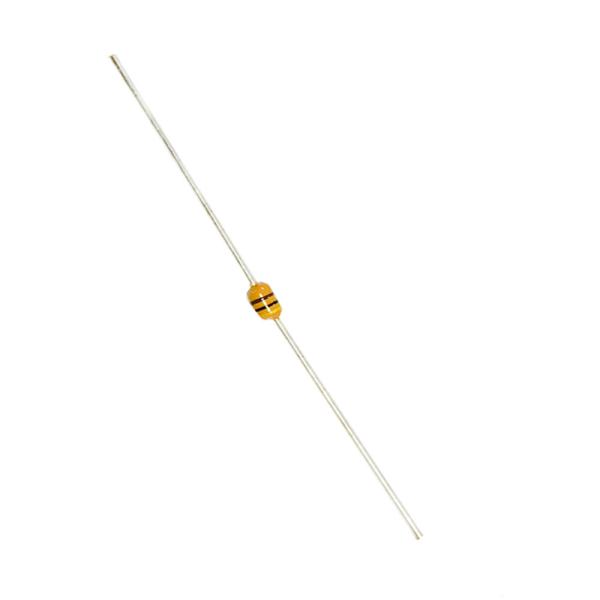

Axial Leaded Multilayer Ceramic Capacitors Mono 100nF 50V 0805 X7R
Axial Leaded Multilayer Ceramic Capacitors Mono 100nF 50V 0805 X7R
Axial Leaded Multilayer Ceramic Capacitors Mono 100nF 50V 0805 X7R
Axial Leaded Multilayer Ceramic Capacitors Mono 100nF 50V 0805 X7R
Axial Leaded Multilayer Ceramic Capacitors Mono 100nF 50V 0805 X7R
Axial Leaded Multilayer Ceramic Capacitors Mono 100nF 50V 0805 X7R
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCC06
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
10000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
10~12working days after payment
Packaging Details :
Bulk, Tape
Capacitance :
100nF
Rated Voltage :
50V
Tolerance :
+/-10%
Material :
X7R
Package Type :
Axial Leaded
Temp. Range :
-55℃~+125℃
Description

Axial Leaded Multilayer Ceramic Capacitor Color Code Mono Capacitor 100nF 50V 0805 X7R

Feature

  • Large capacitance, small volume
  • High reliability, stable capacitance
  • High temperature and moisture resistance

Application: Widely used in electronic precision instruments. All kinds of small electronic equipment for resonance, coupling, filtering, bypass.

General Specification

A

Product Type

 B

Nominal Body Size(Length ×Width±0.05)
TMCC06

Class 1 Color Code Axial lead ceramic capacitor

 0805 2.0×1.25mm
C

Temperature Characteristic

 D

Nominal Capacitance C
X7R ±15% -55～+125℃ 104 100nF
E

Tolerance

 F

Rated Voltage
K ±10% 50V
G

Packaging Style

 H

Lead length(Unit:mm)
Blank

5000pcs/ Taped Box

 P52 52mm
I

Wire material

Specifications

Wire diameter

Line conductivity

Tin plated copper clad steel wire

 Φ0.45~0.5mm 16.6% (±0.5)

Tin plated copper wire

Dielectric Charateristics

ITEM TEST STANDARD
NPO ( N ) X7R ( B ) Y5U , Y5V ( Y )
Capacitance WITHIN THE TOLERANCE WITHIN THE TOLERANCE WITHIN THE TOLERANCE
Dissipation Factor
≤0.15%
≤3.5%
≤7%(less than 220nF )
≤10% ( 220~470nF )
≤15% ( 470~1000nF )
Insulation Resistance C≤10NF IR>10000MΩ
C>10NF R .C>100S		 C≤25NF IR>4000MΩ
C>25 NF R.C>100S

Voltage Test		 Test voltage:2.5.rated voltage
The charging current may not exceed 50 mA. Duration of test:5 seconds
TEST CONDITION
FREQUENCY 1M HZ
(C>1000PF,1KHZ)		 1KHZ
T EST VOLTAGE 1VDC 0.5 VDC
TEST VOLTAGE OF IR The measuring voltage is equal to the rated voltage.
The charging current may not exceed 50 mA
Standard atmospheres conditions Unless otherwise specified, the standard range of atmospheric conditions for measuring and testing is as follows:
Ambient temperature 15 °C ~35 °C
Relative humidity 45%~75%
Air pressure 86Kpa~106Kpa (860-1060mbar)
If there may be any doubt on the results, measurements shall be made within the following limits:
Ambient temperature 25 °C ±1 °C
Relative humidity 48%~52%
Air pressure 86Kpa~106Kpa (860-1060mbar)
Operating temperature range The operating temperature range is the range of ambient temperatures at which the capacitor can be operated continuously at rated voltage.
Temperature compensation use:
NPO -55 °C ~+125 °C
X7R -55 °C ~+125 °C
Y5V -25 °C ~+85 °C
Z5U +10 °C ~+85 °C

Color Code

Black 0, brown 1, red 2, orange 3, yellow 4, green 5, blue 6, purple 7, gray 8, white 9.

The color ring value is readed in the same way as resistor. The first two digits are the number, and the the last digit is multiple of 10.

For example, if the colour ring is red, red and yellow, then 224=22×10⁴=0.22μF

Color Code
Axial Leaded Multilayer Ceramic Capacitors Mono 100nF 50V 0805 X7R

Packing

Bulk or Tape

Axial Leaded Multilayer Ceramic Capacitors Mono 100nF 50V 0805 X7R

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

More details, kindly contact us freely!
