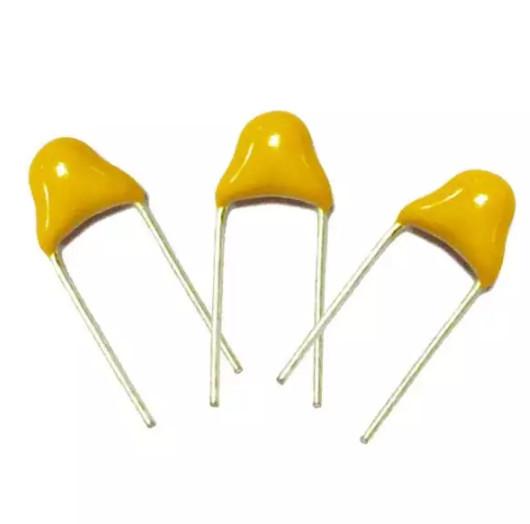

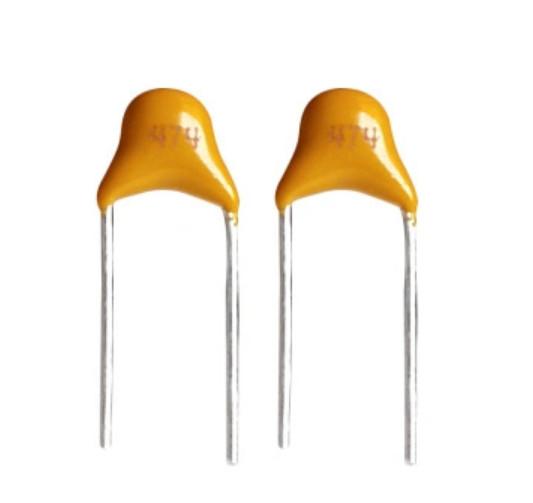

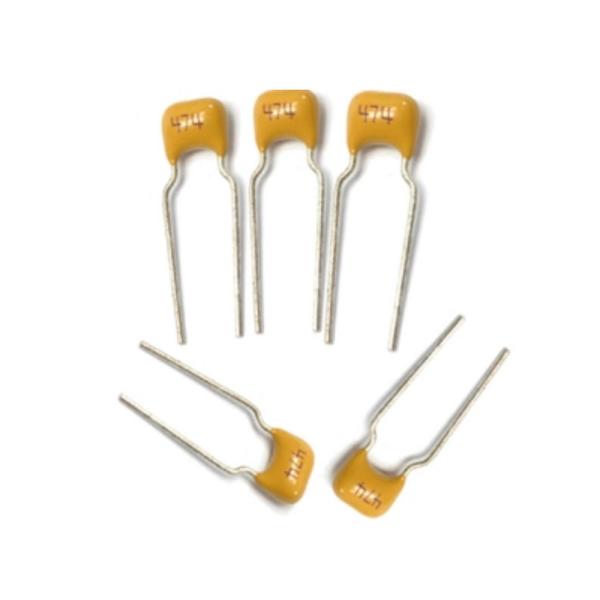

474 470nF Multilayer Ceramic Capacitors 50V 10% Pitch 5.08mm MLCC
474 470nF Multilayer Ceramic Capacitors 50V 10% Pitch 5.08mm MLCC
474 470nF Multilayer Ceramic Capacitors 50V 10% Pitch 5.08mm MLCC
474 470nF Multilayer Ceramic Capacitors 50V 10% Pitch 5.08mm MLCC
474 470nF Multilayer Ceramic Capacitors 50V 10% Pitch 5.08mm MLCC
474 470nF Multilayer Ceramic Capacitors 50V 10% Pitch 5.08mm MLCC
474 470nF Multilayer Ceramic Capacitors 50V 10% Pitch 5.08mm MLCC
474 470nF Multilayer Ceramic Capacitors 50V 10% Pitch 5.08mm MLCC
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCC03
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
10000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
10~12working days after payment
Packaging Details :
Bulk, Tape
Capacitance :
470nF
Rated Voltage :
50V
Tolerance :
+/-10%
Material :
X7R
Package Type :
Radial
Pitch :
5.08mm
Operating Temperature :
-55～+125℃
Inner Chip Size :
0603, 0805, 1206
Description

474 470nF 50V 10% Pitch 5.08mm MLCC Multilayer Ceramic Capacitor

Feature

  • Miniature size, wide capacitance, tape and reel packing available for auto-placement.
  • Coating with epoxy resin, creates the excellent humidity resistance and prevents body from damage during soldering and washing.
  • Industry standard size and various lead spacing available

General Specification

Product Name Radil Multilayer Ceramic Capacitor
Part Number TMCC03-474K50VP5.08B
Temperature Characteristic X7R ±15% -55～+125℃
Capacitance 470NF(474)
Rated Voltage 50V
Lead Space 5.08mm
Lead material Tin plated copper clad steel wire
Package 1000pcs/ bag

Other Parameters

TEM TEST STANDARD
NPO(N) X7R(B) Y5U,Y5V(Y)
Capacitance WITHIN THE TOLERANCE WITHIN THE TOLERANCE WITHIN THE TOLERANCE
Dissipation Factor
≤0.15%
≤3.5%
≤7%(less than 220nF)
≤10%(220~470nF)
≤15%(470~1000nF)
Insulation Resistance C≤10NF IR>10000MΩ
C>10NF R .C>100S		 C≤25NF IR>4000MΩ
C>25 NF R.C>100S

Voltage Test		 Test voltage:2.5.rated voltage
The charging current may not exceed 50 mA. Duration of test:5 seconds
TEST CONDITION
FREQUENCY 1M HZ
(C>1000PF,1KHZ)		 1KHZ
TEST VOLTAGE 1VDC 0.5 VDC
TEST VOLTAGE OF IR The measuring voltage is equal to the rated voltage.
The charging current may not exceed 50 mA
Standard atmospheres conditions Unless otherwise specified, the standard range of atmospheric conditions for measuring and testing is as follows:
Ambient temperature 15°C~35 °C
Relative humidity 45%~75%
Air pressure 86Kpa~106Kpa (860-1060mbar)
If there may be any doubt on the results, measurements shall be made within the following limits:
Ambient temperature 25°C±1 °C
Relative humidity 48%~52%
Air pressure 86Kpa~106Kpa (860-1060mbar)
Operating temperature range The operating temperature range is the range of ambient temperatures at which the capacitor can be operated continuously at rated voltage.
Temperature compensation use:
NPO -55°C~+125°C
X7R -55°C~+125°C

Packing

Bulk or Tape

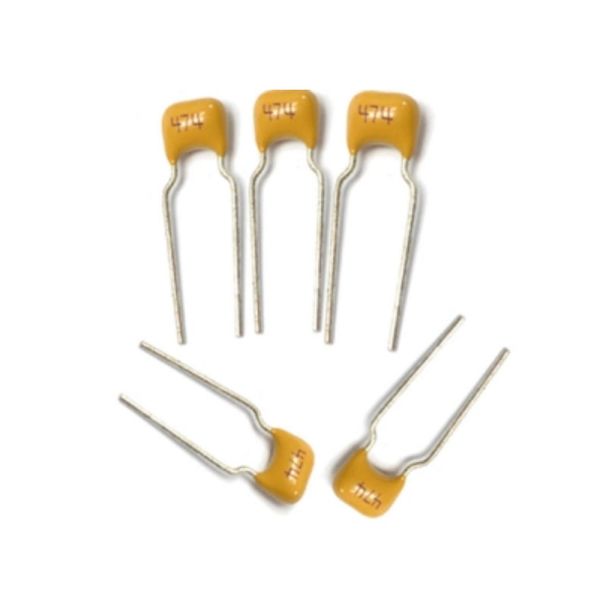

474 470nF Multilayer Ceramic Capacitors 50V 10% Pitch 5.08mm MLCC

Applications

Multilayer ceramic capacitors are widely used in electronic precision instruments. Various small electronic devices are used for resonance, coupling, filtering, and bypassing.

474 470nF Multilayer Ceramic Capacitors 50V 10% Pitch 5.08mm MLCC474 470nF Multilayer Ceramic Capacitors 50V 10% Pitch 5.08mm MLCC

474 470nF Multilayer Ceramic Capacitors 50V 10% Pitch 5.08mm MLCC

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

474 470nF Multilayer Ceramic Capacitors 50V 10% Pitch 5.08mm MLCC

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

More details, kindly contact us freely!
