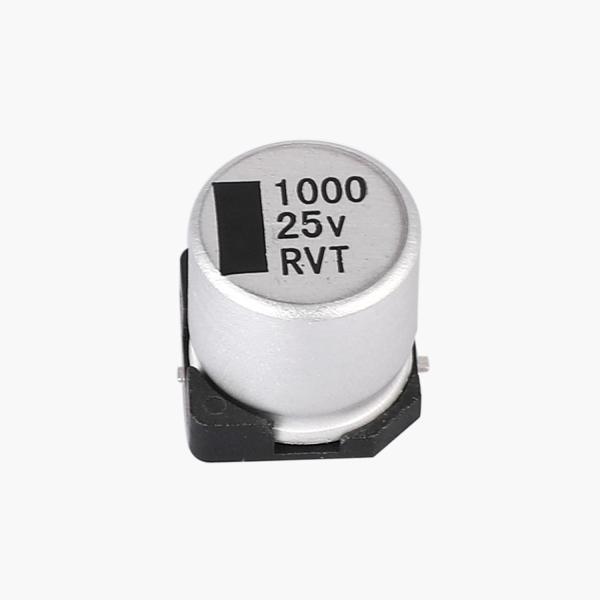

SMD Aluminum Electrolytic Capacitor SMT 1000uF 25V 20% 12.5*13.5
SMD Aluminum Electrolytic Capacitor SMT 1000uF 25V 20% 12.5*13.5
SMD Aluminum Electrolytic Capacitor SMT 1000uF 25V 20% 12.5*13.5
SMD Aluminum Electrolytic Capacitor SMT 1000uF 25V 20% 12.5*13.5
SMD Aluminum Electrolytic Capacitor SMT 1000uF 25V 20% 12.5*13.5
SMD Aluminum Electrolytic Capacitor SMT 1000uF 25V 20% 12.5*13.5
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCE27
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
2000pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
15~20 working days
Packaging Details :
Tape&Reel
Capacitance :
1000uF
Voltage :
25V
Size :
12.5(D)*13.5(H)mm
Working Temperature :
-55 +105℃
Ripple Current :
580mArms
D.F. :
0.3
Description

SMD Aluminum Electrolytic Capacitor SMT 1000uF 25V 20% 12.5*13.5

Features

Operating over wide temperature range( -55 +105℃)

High Stability and reliability

Suitable for Reflow soldering

Suitable for High density PCB surface mounting

Adapted to the RoHS, REACH directive

Applications

  • Communication equipment
  • Computer and peripheral accessories
  • Multimedia player
  • Vehicle industry
  • Security industry
  • Digital products
  • Smart homes

Specifications

Specifications
Category temperature range (℃) -55 +105℃
Capacitance tolerance (%) ±20％( 120Hz/+20℃)
Leakage Current 1≤ 0.01CV or 3uA which bigger (charge for 5 minutes at 20℃) CR: Nominal Capacitance(uF) UR: Rated voltages (V)
Dissipation Factor (tanδ) See table of Characteristics
Low Temperature Characteristics Rated voltage (V) 6.3 10 16 25 35 50 63 100
Z(-25℃)/Z(+20℃) 4 4 3 2 2 2 2 3
Z(-40℃)/Z(+20℃) 12 8 6 4 3 3 3 4
Load Life

After application of rated voltage for the specified period of time 2000Hours/3000hrs/5000hrs at +105℃, returning to 20℃, the following specification shall be satisfied.
Promise load life: DxL≤6.3*5.7mm:2000H, 6.3x7.7., 8x6.5, 10x7.7:3000H, D≥8mm:5000H
Capacitance Change Within ±30% of the initial value
Dissipation Factor N o t more than 300% of the initial specified value
Leakage Current N o t more than the initial specified value
Shelf Life

After storage for 1000 hours 105 ℃±2 ℃, return to 20 ℃, the capacitors shall meet

the requirement of load life above
Resistance to Soldering Heat

After reflow soldering according to Reflow Soldering Temperature,

restored at room temperature, they meet the following requirement.
Capacitance Change Within ±10% of the initial value
Dissipation Factor Not more than the initial specified value
Leakage Current Not more than the initial specified value
Frequency coefficient of ripple current Frequency 50Hz 120Hz 1KHz 10KHz≤
C≤1000uF 0.7 1.0 1.2 1.3
C>1000uF 0.8 1.0 1.11 1.2

Dimensions

SMD Aluminum Electrolytic Capacitor SMT 1000uF 25V 20% 12.5*13.5

Nominal capacitance, rated voltage, rated ripple current and

case size table

Rated voltage (V) Capacitance(uF) ±20％ Diameter (mm) Height(mm) Ripple Current(mArms) tanδ Part Number
25 1000 12.5 13.5 580 0.3 TMCE24-108M25VT

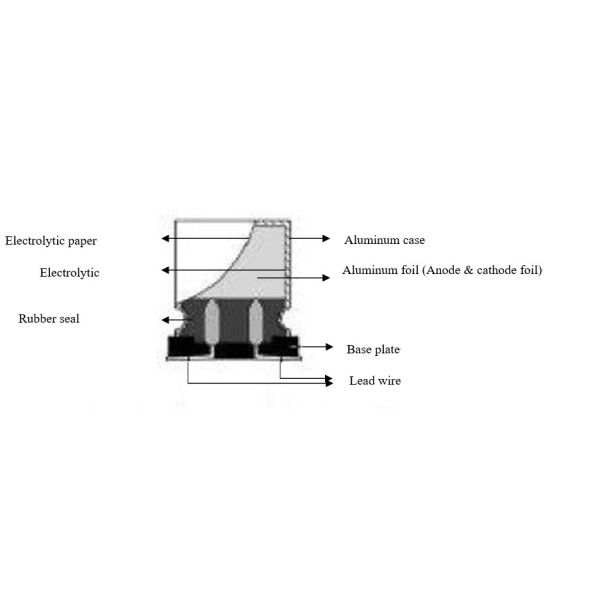

Contructions

SMD Aluminum Electrolytic Capacitor SMT 1000uF 25V 20% 12.5*13.5

SMD Aluminum Electrolytic Capacitor SMT 1000uF 25V 20% 12.5*13.5
