PEF220 20KV 2500pF 150KVA Ceramic Capacitor High Frequency For Welding Machine

Features:

• Low loss Class 1 ceramic dielectric materials
• Noble metal electrodes with low self heating
• Very low capacitance-temperature characteristics available
• Correspondingly low tuned frequency drift
• Low Inductance construction, higher frequency use
• High withstand voltage, large reactive power ratings
• Low magnetic susceptibility

Applications:

These producrs are used in oscillators, coupling circuits or bypass capacitors in industrial or medical high frequency equipment. They are suitable to use as coupling capacitors for transmission line and carrier frequency equipment. X-ray equipment, broadcast equipment, induction heating power supplies (tube and solid state), cable fault finders, plasma generators, RF power supplies, dielectric heating, lasers and more.

Basic Parameter:

Specifications:

Main technical parameters:

1. medium loss <=0.0008;
2. insulation resistance >=10000 MΩ;
3. nominal capacity allowable deviation: K(+/-10%);
4. Climate category: -40/ +85℃
5. rated temperature: +85℃;
6. the test voltage: rated voltage <=15KV is twice the rated voltage; 1.5 times rated voltage when rated voltage >15KV;
7. relative humidity: 75%

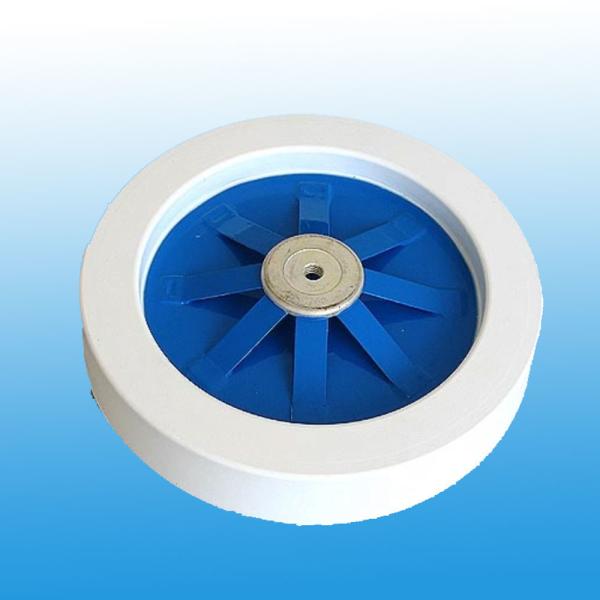

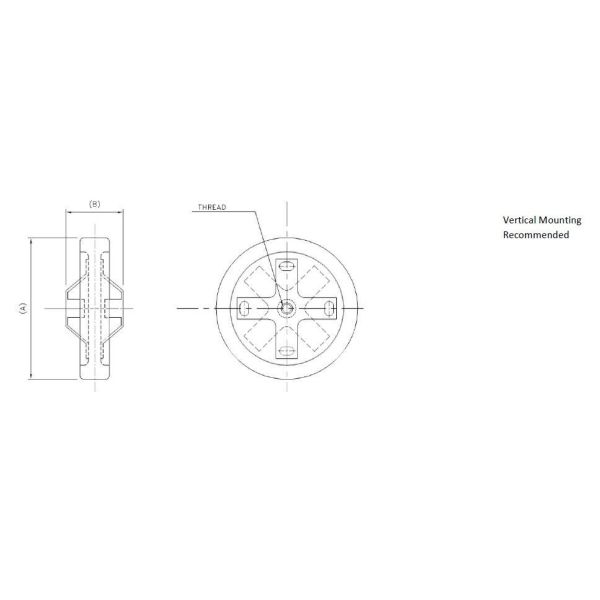

Product Outdrawing and Photos

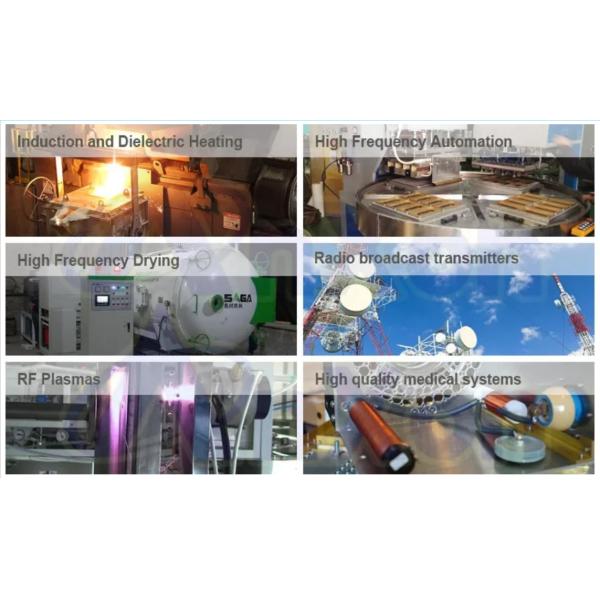

High Frequency High power RF Plate Ceramic Capacitors Applications
