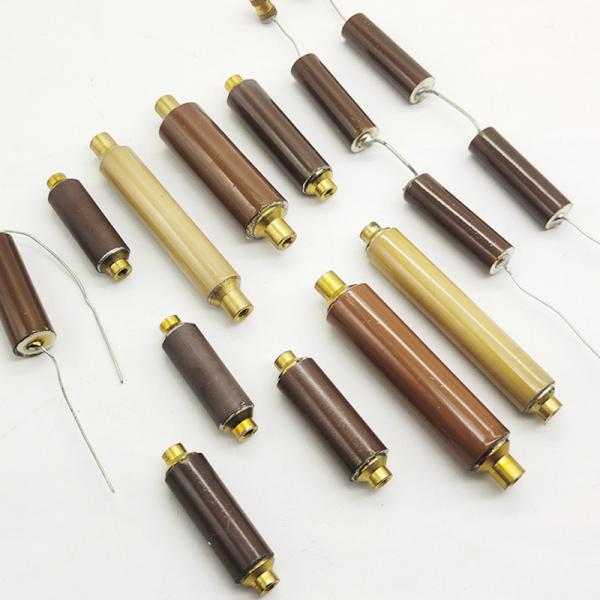

50pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor Suitable for APG Process
50pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor Suitable for APG Process
50pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor Suitable for APG Process
50pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor Suitable for APG Process
50pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor Suitable for APG Process
50pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor Suitable for APG Process
50pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor Suitable for APG Process
50pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor Suitable for APG Process
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCC02
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
12~15 working days
Packaging Details :
Bulk, Tape
Capacitance :
50pF
Voltage :
24KVDC
Tolerance :
±20%
Operating Temperature :
-25~+85℃
Specification :
TMCC02-500K24KVB
Applications :
Capacitor Suitable for APG Process
Package :
Bulk
Description

50pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor Suitable for APG Process​

Performance Characteristics
1. Made of SrTiO3 ceramic material.
2. High product life.
3. Low bias characteristics.
4. Low dielectric loss.
5. High withstand voltage.
6. Capacity accuracy 10%

Applications

This series of products are high-voltage capacitors for high-voltage live display sensors, suitable for APG process and vacuum casting process.

Basic Parameters

Ceramic Dielectric Properties
NO.
Ceramic
Dielectric
Operating
temperature
Range(℃)
Insulation
Resistance
( MΩ)
Dissipation
factor
Temperature
characteristics
1
Y5T
-25~+85℃
≥100000
≤0.5%
+22%,-33%

50pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor Suitable for APG Process

Product code
Tolerance
Withstand voltage
(AC:kv/1min)
Partial discharge
(kv﹤10pc)
Size By M4 nut(mm)
D
L1
L2
7KV-20PF
±10%
50
8
12
32.5
44.5
7KV-50PF
±10%
50
8
12
30
42
7KV-100PF
±10%
50
8
12
31
43
7KV-220PF
±10%
50
8
15.3
34
46
12KV-150PF
±10%
75
14.4
15.3
50
62
12KV-200PF
±10%
75
14.4
16.5
45
65
24KV-10PF
±10%
95
39.6
14
60
72
24KV-15PF
±10%
95
39.6
14
60
72
24KV-20PF
±10%
95
39.6
14
60
72
24KV-50PF
±10%
95
39.6
14
60
72
24KV-75PF
±10%
95
39.6
14
60
72
24KV-150PF
±10%
95
39.6
16.5
61
80
36KV-16PF
±10%
15.5
70
84
36KV-40PF
±10%
12
78
90

50pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor Suitable for APG Process

Packing & Delivery

Precautions

(1) During transportation and storage • Do not transport or store where the capacitor will be exposed to high temperature or high humidity. • Do not expose to poisonous gases such as H2SO4, HCL or HNO3. • Avoid excessive impact such as that caused by falling.
(2) During operation • Avoid contact with electrolytes such as perspiration. Do not touch with bare hands. • Avoid excessive impact such as that caused by falling. • Do not apply solder to stud terminals. • Do not re-machine the terminals. (3) Usage • When the capacitor is used for high-speed pulses such as with a laser, make sure that the impressed voltage (peak-to-peak volt-age) is within the capacitor’s rated specifications. • Make sure that the capacitor is not exposed to radiant heat from cham.
Company Profile
Shenzhen Topmay Electronic Co.Ltd's headquarter is located in Shenzhen, a flourishing southern city that is recognized as one of the economic centers of China. Since established in 1998, Topmay deal globally based on the most competitive price and excellent service. Through many years’ hard work, it has gradually grown up to be an outstanding enterprise in the field of capacitors and resistors.

By closely following the latest market trends, we provide “one-stop” capacitors and resistors solution, which are applied in
almost all kinds of PCB, communications, lighting, home appliance, industrial control, green energy, etc.

All the time, Topmay holds an idea that the products quality is the life of a company. We have passed ISO9001 quality system authentication and process strong research and development center and experienced service team. In order to serve our customers better, we have made investments so that our products can meet quality standards of UL, CE, SGS, CQC, etc. With these advantages, we have good reputation among global customers.
Topmay thanks for all trusts and supports from every customer. We are willing to cooperate with domestic and foreign customers to meet prosperity together, generations by generations.
Our series of capacitors and resistors can be divided into below types:

Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
Multilayer Ceramic Capacitor( radial, axial and SMD )
Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
Tantalum Capacitor(SMD, Radial , Axial )
Super Capacitor( Coin Type, Cylindrical Type, Module Type)
Mica Capacitor
Trimmer Capacitor

SMD Resistors
DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
Cement Resistors
Leadless Resistors( MLEF)
Power Resisto
FAQ
FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?
Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
