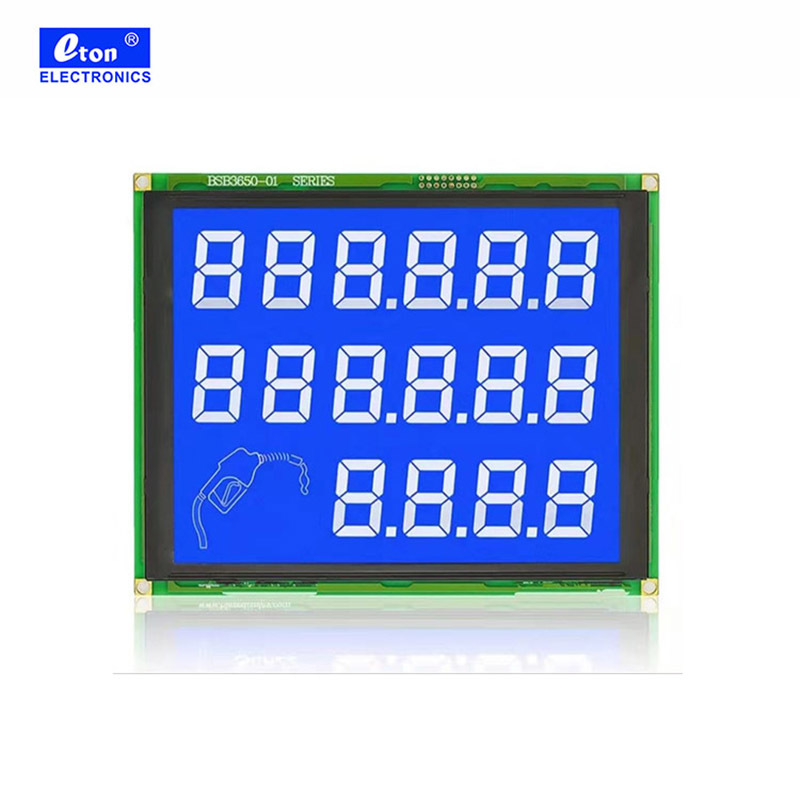

Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Specifications
Top Temp :
-25℃ ~ 75℃
Tst Temp :
-30℃ ~ 80℃
Display Size :
151*120.2mm
Place of Origin :
Guangdong, China
Driver IC :
HT1621
Viewing Angle :
6 O'clock
Connector :
Zebra
Price :
$25.00
Driving Method :
1/4duty 1/3Bias
Brand Name :
ETON
Product Name :
fuel dispenser lcd
Display mode :
HTN/TRANSFLECTIVE/POSITIVE
MOQ :
1
Model Number :
HHB88128-259
Type :
hTN
Description
Product Description

Brand Name
ETON
Product Name
fuel dispenser lcd
Model No
HHB88128-259
Outline Dimension
179*144.2mm
Active Area
151*120.2mm
Display Color
WHITE
Drive Method
1/4 duty 1/3 bias
Drive IC
HT1621
VDD
5.0V
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Packing&Shipping
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Company Introduction
Dongguan Eton electronics Co.LTD Is a professional development, manufacture , sale of liquid crystal display (LCD) and supporting modules (LCM) production enterprises. Product types include : TN, HTN, STN, FSTN, black mold LCD and complement the COB, COG, COF, TAB modules. The company has a full set of advanced automatic production lines and precision production equipment , focus on a number of high-tech , high-quality talent , with a strong R & D capabilities and production capacity. Extensive R & D and manufacturing...
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Custom 886 776 664 Segment Fuel Pump Screen Display Lcd Module for Fuel Dispenser
Related Products

FAQ

1.Q: Are you manufactory or trade company?
We are factory located in Dongguan and Jiangxi .

2.Q: How can I get the samples?
A: Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling &
samples -- Samples finished -- Delivery via freight or sea collect

3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days

4.Q:Will you offer free sample?
A: Yes, we usually provide 1-3 pcs free samples, you just need to pay the tooling charge.

5.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.

6.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit
payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.

7.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
