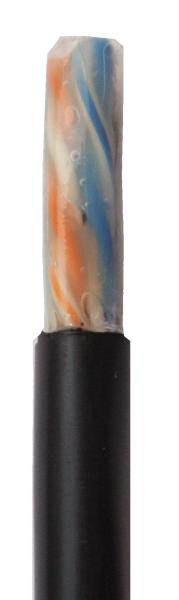

Gel filling Waterproof Cat6 Lan Cable 23AWG 4Pair CMX
Gel filling Waterproof Cat6 Lan Cable 23AWG 4Pair CMX
Specifications
Brand Name :
YYS-CABLE
Model Number :
CAT6 U/UTP
Certification :
ETL,CE,CPR
Place of Origin :
FOSHAN,CHINA
MOQ :
10 KF
Supply Ability :
1000 KF/WEEK
Delivery Time :
3~4WEEKS
Packaging Details :
WOOD-DRUM
CAT6 :
test to 600MHZ
FTP :
GEL
TEST :
100% PASS FLUKE-1800 TEST
Description

Waterproof Cat6 U/Utp 23awg/4pair CMX Hdpe 600mhz 0.57mm Can Pass Fluke-1800 Test Gel

  • High-performance data communications cable
  • Suitable for 600MHz high speed data applications,Gigabit Ethernet, fast Ethernet and 155Mbps TP-PMD/CDDI
  • Designed for outdoor installations, UV rated jacket (CMX)
  • Category-6 unshielded twisted pair (UTP) cable
  • 4-Pair – easily identified color-striped pairs
  • 23AWG solid bare copper conductors
  • Excellent attenuation and crosstalk characteristics
  • Exceeds EIA/TIA 568 B.2-1, CSA and ISO/IEC 11801 specifications
  • ETL Listed
  • RoHs Compliant
  • Supplied in 1000' wooden spools

ELECTRICAL PERFORMANCE

1.0-250.0MHz Impedance (ohms) 100 ± 15
Pair-to-Ground Capacitance Unbalance (pF/100m) <=330
Max. Conductor DC Resistance 20oC (ohms/km) 95
Resistance Unbalance (%) <=5
Delay SKEW: 45ns/100M (MAX)
Max. Propagation Delay: 534+36 ns/100m
Velocity of propagation 72%
Mutual Capacitance: 46pF/m

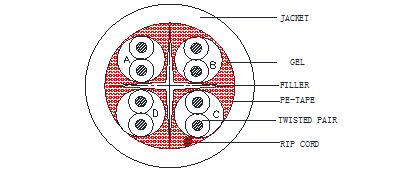

PHYSICAL PROPERTIES

Conductor Solid Bare Copper
AWG 23
Conductor Dia. (+/-0.008mm) 0.57
Insulation HDPE
Outer Dia.(±0.20mm)

6.5±0.2 mm

MECHANICAL CHARACTERISTICS

Test Object Jacket
Test Material HDPE
Before Tensile Strength (Mpa) >=13.8
Aging Elongation (%) >=300
Aging Condition (oCxhrs) 100x168
After Tensile Strength (Mpa) >=75% of unaged
Aging Elongation (%) >=75% of unaged
Cold Bend(-20±2oCx4hrs) No crack


TRANSMISSION PROPERTIES

Transmission properties
Frequency Return loss Attenuation NEXT ELFEXT
(MHz) (Min dB) Max (dB/100m) (Min dB) Min (dB/100m)
1 20.0 2.0 74.3 67.8
4 23.0 3.8 65.3 55.8
8 24.5 5.3 60.8 49.7
10 25.0 6.0 59.3 47.8
16 25.0 7.6 56.2 43.7
20 25.0 8.5 54.8 41.8
25 24.3 9.5 53.3 39.8
31.25 23.6 10.7 51.9 37.9
62.5 21.5 15.4 47.4 31.9
100 20.1 19.8 44.3 27.8
200 18.0 29.0 39.8 21.8
250 17.3 32.8 38.3 19.8
300 14.9 34.3 38 18.5
500 13 45.3 34.8 14
600 12.3 48.5 33.6 12
Frequency PSNEXT PSELFEXT ACR Delay
(MHz) Min (dB) Min (dB) Min (dB) Max (ns/100m)
1 72.3 64.8 72.3 570.0
4 63.3 52.8 61.5 552.0
8 58.8 46.7 55.5 546.0
10 57.3 44.8 53.3 545.0
16 54.2 40.7 48.6 543.0
20 52.8 38.8 46.3 542.0
25 51.3 36.8 43.8 541.0
31.25 49.9 34.9 41.2 540.0
62.5 45.4 28.9 32.0 538.0
100 42.3 24.8 24.5 537.0
200 37.8 18.8 10.8 536.0
250 36.3 16.8 5.5 536.0
300 35.1 15.3 -- 535.0
500 31.8 10.8 -- 534.0
600 30.6 9.2 -- 534.0
