Unshielded CCA UTP Cat5e Lan Cable For Structured Cabling Systems 0.50mm
Unshielded CCA UTP Cat5e Lan Cable For Structured Cabling Systems 0.50mm
Unshielded CCA UTP Cat5e Lan Cable For Structured Cabling Systems 0.50mm
Unshielded CCA UTP Cat5e Lan Cable For Structured Cabling Systems 0.50mm
Unshielded CCA UTP Cat5e Lan Cable For Structured Cabling Systems 0.50mm
Unshielded CCA UTP Cat5e Lan Cable For Structured Cabling Systems 0.50mm
Unshielded CCA UTP Cat5e Lan Cable For Structured Cabling Systems 0.50mm
Unshielded CCA UTP Cat5e Lan Cable For Structured Cabling Systems 0.50mm
Specifications
Brand Name :
BLG/OEM/ODM
Model Number :
CAT5E UTP
Certification :
CE/ROHS/ISO
Place of Origin :
CHINA
MOQ :
50 Rolls
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
3000 Rolls per Week
Delivery Time :
10-15 Work Days
Packaging Details :
305M/Roll/Easy Pull Box, 2 Boxes/Carton
Item :
UTP Cat5e LAN Cable
Conductor Material :
Copper-clad Aluminum
Insulation :
HDPE
Pair :
4 Pairs
Jacket :
PVC
Color :
Optional
Description

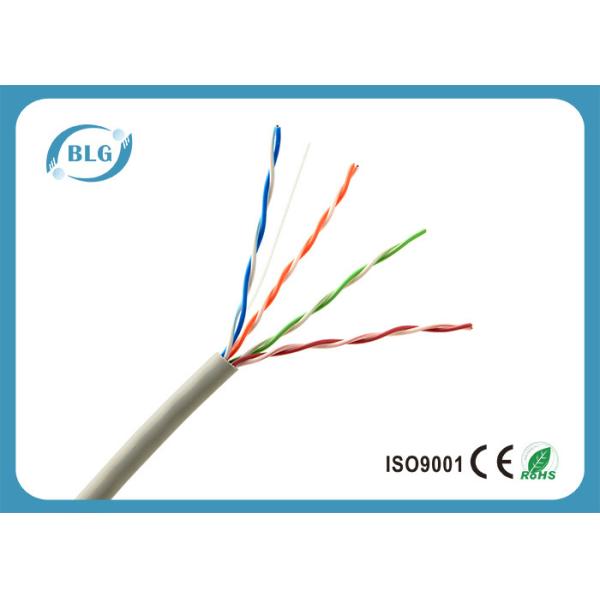

Unshielded Cat5e Lan Cable 0.50mm CCA UTP Ethernet Cable 4 Pairs

High performance ANSI/TIA/EIA 568B.2 compliance Category 5e UTP cables for mission critical LAN applications or Structured Cabling Systems at affordable prices.

Product Description:

Item Indoor Cat5e UTP Cable
Conductor Conductor Diameter 0.50±0.01
Conductor Material Copper-clad Aluminum
Type of Conductor Solid
Insulation Dielectric(Insulation) Diameter 0.90±0.01
Dielectric(Insulation) Material HDPE
Jacket Jacket(sheath) Diameter 5.1±0.1
Jacket(sheath) Material PVC
Paired Number of Pair 4 Pairs
Pair Identification Pair 1: Blue,White / Blue
Pair 2: Orange,White / Orange
Pair 3: Green,White / Green
Pair 4: Brown,White / Brown
Weight (KGS/305M) 6
Attenuation(10MHz dB/100m) 6.5
NEXT (100MHz dB/100m) ≥35.3
ELFEXT (100MHz dB/100m) ≥23.8
RL (100MHz dB/100m) ≥20.1
Impedance (ohms ) 100
Operating Temperature Range(°C) -20 to 75

Applications:

  • 10 Base-T
  • 100 Base-TX
  • 100VG-AnyLan
  • 1000 Base-T (gigabit Ethernet)
  • 155Mbps ATM
  • 622Mbps ATM

Competitive Advantage:

  • We are a leading manufacturer specialized in the field of network cable for more than 8 years.
  • We obtain the profession team in cable development & advanced, matured technology in production and quality control.
  • Guaranteed with the reliable quality and aftersale services, you will be delighted to find that imported directly from us is so easy and simple as you buy from you local suppliers but with very competitive prices and more choice.
  • Our Policy is Competitive price, Fast delivery, First-class service.
