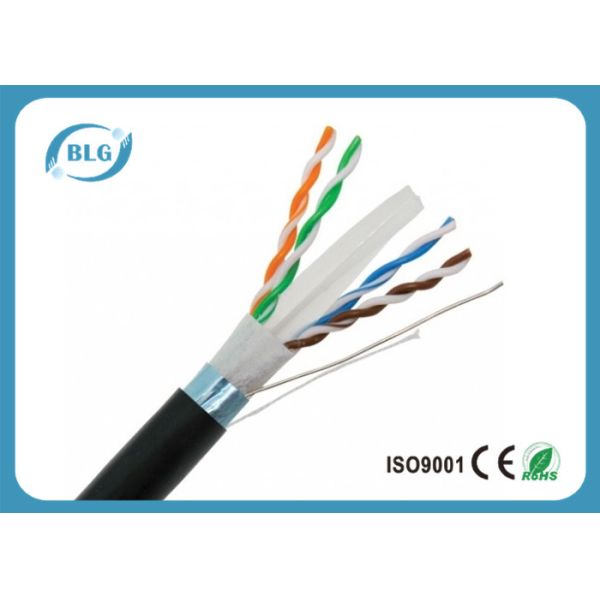

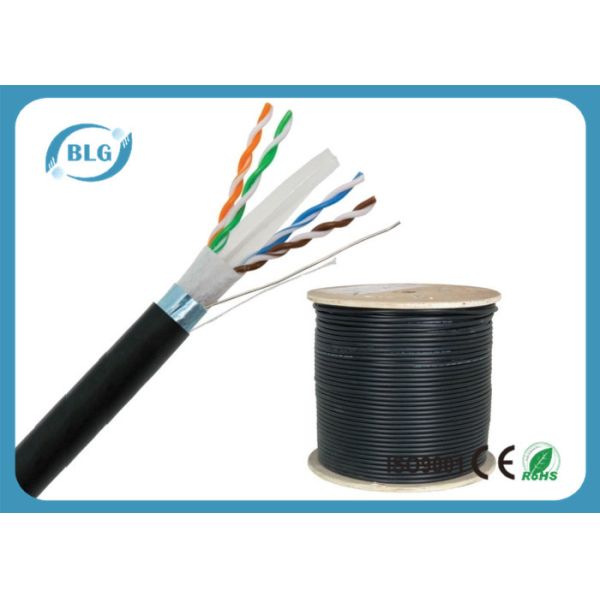

Outdoor FTP Cat6 LAN Cable Heavy-Duty Al Foil Shielding Double Jacket Cables

Outdoor-rated cables are differentiated by their UV-resistant jackets. These types of cables are designed to be used outside, but not buried. Outdoor-rated cables are made to withstand heat and UV rays, and their UV-resistant jackets are either made out of PE or a UV-resistant PVC material.

Application:

* 100Base-TX

* 100VG-AnyLAN

* 1000Base-T(Gigabit Ethernet)

* ATM

* Noisy Environments

Industry Standards:

• Rated Temperature: 60°C, 75°C, 90°C
• RoHS Complied PVC or PE or LSZH Jacket
• Complies to ANSI / TIA-568-C.2, ISO / IEC 11801
• Installation Temperature: -30°C ~ +50°C
• Minimum Bending Radius: 8D

Specification of Cat6 Outdoor Cable

1) CONDUCTOR

• Raw material of the conductor: CU / CCC / CCA
• Conductor Diameter: 0.50mm / 0.57mm

2) INSULATION

• Raw material of the conductor: HDPE
• Paired: 4 twisted pairs

Blue / white-blue; Green / white-green;

Orange / white-green; Brown / white-brown;

• Insulation Diameter: 1.024±0.005mm
• Average thickness: 0.02245 mm
• Minimum point thickness: 0.2220mm

3) CENTER CROSS SEPARATOR

4) PET

5) DRAIN WIRE: O.D. 0.4mm CCA / CCS

6) SHIELDEDING: Aluminum foil

7) RIP CORD

8) JACKET

• Jacket material: PVC + PE
• Nominal Diameter: 6.80 ± 0.2mm
• Average thickness: 0.55mm
• Minimum point thickness: 0.5mm

Packaging details:

1. Inner Packing: 305 meters / roll / box, 2 boxes / carton

2. Outer Packing: 2 boxes / carton

3. Other Packing: as customer's request

Delivery time:

As for one 4'HQ container, we can finish them 15 - 20 days after receiving the deposit and we usually complete the order within 10-15 days. It also depends on the items and the order quantities.

Payment terms:

1) L/C at sight

2)T/T: 30% deposit by T/T, 70% balance by T/T before shipment

3)Western Union: 30% deposit, 70% balance before shipment
