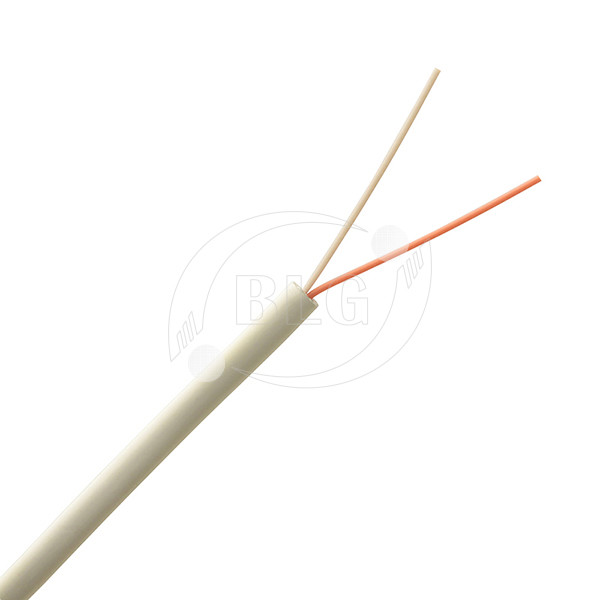

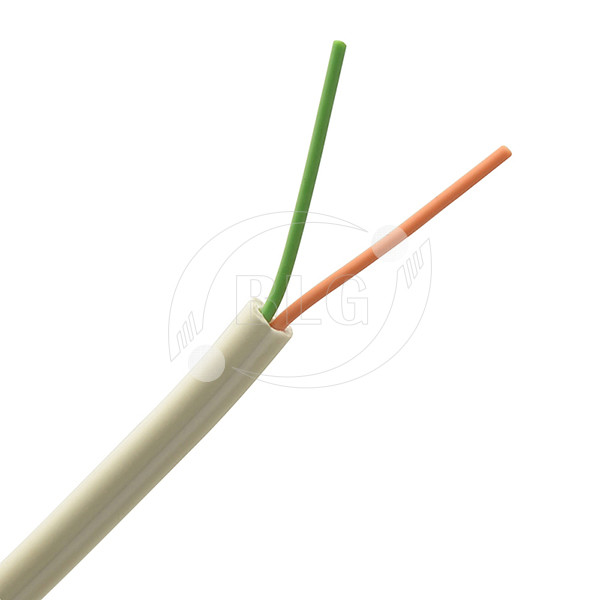

White 100m Rj11 Telephone Cable / HDPE Insulation Extra Long Telephone Cable
White 100m Rj11 Telephone Cable / HDPE Insulation Extra Long Telephone Cable
White 100m Rj11 Telephone Cable / HDPE Insulation Extra Long Telephone Cable
White 100m Rj11 Telephone Cable / HDPE Insulation Extra Long Telephone Cable
Specifications
Brand Name :
BLG / OEM
Model Number :
Telephone cable
Certification :
ISO / CE/ROSH
Place of Origin :
China
MOQ :
10000 Meters
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2 containers per week
Delivery Time :
7~10 working days
Packaging Details :
100m / Box, etc.
Type :
Flat telephone cable
Application :
Telecommunication
Conduct diameter :
Stranded 7/0.16mm
Insulation :
HDPE
Certificate :
CE,RoHS, ISO9001
OEM :
Accept
Description

Stranded 7 / 0.16 mm Copper Flat Telephone Cable 2

Core 100m Per Box

Product Parameters:

Model Flat Telephone cable
Insulation .Diameter 0.9mmPE
O.D 2.4mmx3.6mm PVC
Specification 4x7/0.10mm
Application Telecommunication
Standard AWG or according to customer’ request
Conductor OFC/TCU/CCA/TCCA/CCA
Rated Voltage Low voltage
Jacket Transparent PVC & Colored PVC
Jacket Color

White/Black/As required

Appliacation


1. Exceeds requirements of ANSI/TIA-568-C. 2 Category 5/ Category 3 and ISO 11801 2nd Edition Class C channel standards.
2. Exceed requirements of ANSI/TIA-568-C. 2 Category 5/ Category 3 Component standards;
3. Descending length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.
4. Color Availability: Additional cable colors available.


Mechanical Characteristics


Cable under the minimum tension ≥ 400N
Conductor elongation: ≥ 15%
Jacket before Aging
Tensile strength ≥ 13.5Mpa
Elongation≥ 150%
Jacket after Aging
Tensile strength ≥ 12.5Mpa
Elongation≥ 125%

Electronic Characteristics


Impedance: 1-16MHz 100± 15(ohms).
Max. Mutual Capacitance: 6.6nF/100m
Max. Unbalanced DC resistance: 2.5%
Max. Differential phase delay: 45nF/100m
Permitted bend radius: 10 times diameter of the cable
Min. Dielectric Strength Between Conductors: 1.0kV/min
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S
Operating temperature: -20°C~+60°C
