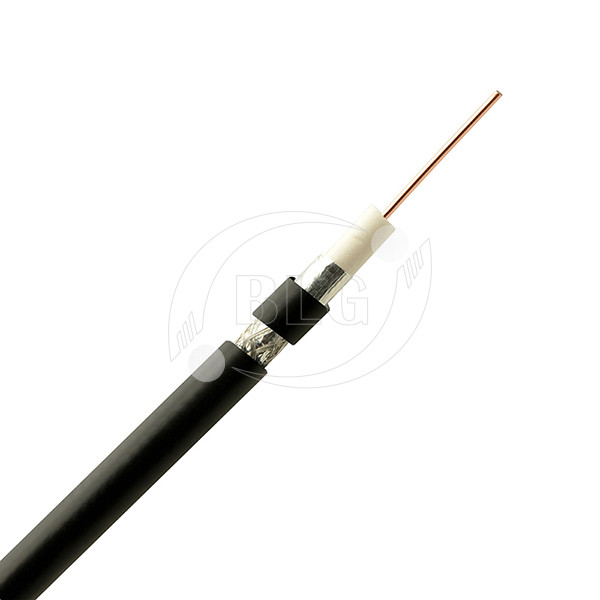

Braiding Shield RG6 Coaxial Cable / Black Low Loss Microwave Coaxial Cable
Braiding Shield RG6 Coaxial Cable / Black Low Loss Microwave Coaxial Cable
Braiding Shield RG6 Coaxial Cable / Black Low Loss Microwave Coaxial Cable
Braiding Shield RG6 Coaxial Cable / Black Low Loss Microwave Coaxial Cable
Specifications
Brand Name :
BLG / OEM
Model Number :
RG6 Coaxial Cable
Certification :
CE / ROHS / ISO
Place of Origin :
China
MOQ :
10000 Meters
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2 container
Delivery Time :
7~10 working days
Packaging Details :
100m/ roll, 305m/reel .
Number of Conductor :
1* 18AWG
Condcutor Material :
CCA/ CCS
Packing :
Wooden roller
Shield :
Al foil/braiding
Jacket :
PVC White
Application :
CCTV&CATV
Description

75 Ohm 18 AWG CCS RG6 Satellite Coaxial Cable For TV /

CATV / Satellite / Antenna / CCTV

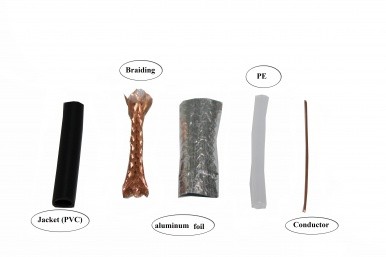

Inner Conductoring Net CCS, CCA, CU
Dielectric Foam PE or Solid PE
Al Foil Bonded, Non-bonded, Single, Double
Braiding Wire Material Cu, Al-Mg, TC
Braiding Wire Diameter 0.12mm, 0.15mm, 0.16mm
Braiding Net 48, 64, 72, 80, 96, 128 and more
Coverage 40%, 50%, 60%, 80%, 90% and more
PVC Degree 60, 65, 68, 70,75
Jacket PE or PVC
Construction 1.02mm CCS + 4.6mm FPE + AL Foil Bonded + 96*0.12mm Al Braiding 60% coverage + 6.91mm PVC

Characteristics:

SRL(dB)

Nom.Impedance(ohm)

Max.Attenuation.(Mhz dB/100m)

15

75

1

0.85

700

18.36

50

4.79

1000

21.61

100

6.72

1450

26.36

200

9.28

1800

28.98

400

13.28

2200

32.03

Application:

Coaxial Cable RG6 75ohm (For CCTV)

Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable

for satellite systems where lower attenuation required

Braiding Shield RG6 Coaxial Cable / Black Low Loss Microwave Coaxial Cable

Braiding Shield RG6 Coaxial Cable / Black Low Loss Microwave Coaxial Cable
