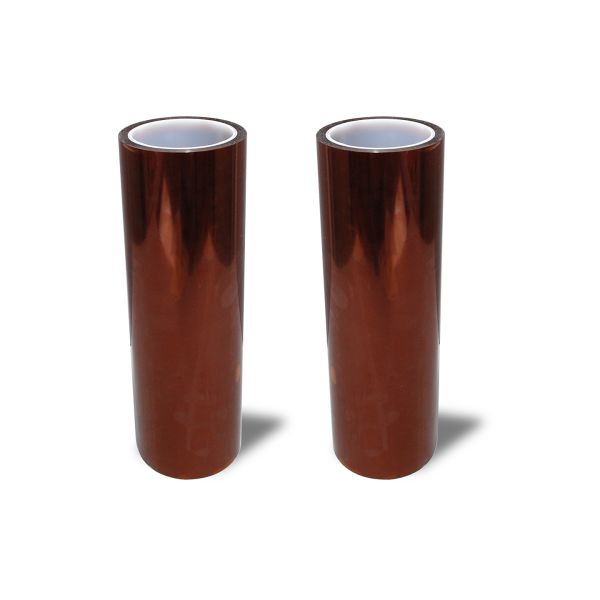

Double-Side Polyimide Film Tape-KD776A-B
Double-Side Polyimide Film Tape-KD776A-B
Specifications
Model Number :
KD776A-B
Brand Name :
KHJ
Certification :
ISO
Place of Origin :
China
Description
Description
KD776A-B is a polyimide film-backed tape with two sides coated silicone adhesive, which has excellent properties of high temperature resistance and low static discharge.

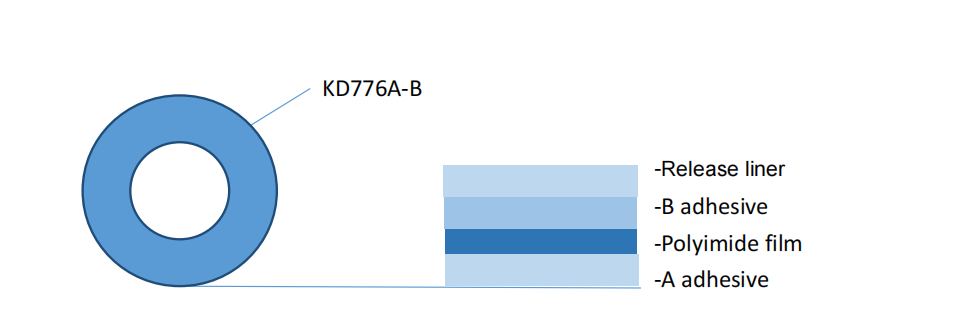

Construction

Double-Side Polyimide Film Tape-KD776A-B

Features
● Low electrostatic discharge at unwind and removal.
● Excellent tensile strength & Elongation
● Resistant high temperature up to 500℉；
● Both-Face with different adhesion ,No any residue after removal
Application
● Mask for printed circuit boards during wave solder or solder dip process.
● Masking contacts during spray painting, powder coating & solder coating.
● Bundling of transformer, motor, battery & electronic components for insulation purpose.
Properties
Item Typical Value Test Method
Imperial Metric
Backing 3.32mil 0.083±0.003mm /
Total Thickness 8.2mil 0.205±0.01mm /
Adhesion to Steel A adhesive >0.62lbs/in >6.5N/25mm

GBT 2792-201
B adhesive <0.096lbs/in <1N/25mm
Tensile Strength ≥45.7lbs/in ≥8(KN/M) G BT 30776-201
Elongation ≥50% ≥50% G BT 30776-201
Static Discharge (Removal from roll) <200V <200V /
Maximum Operating Temperature 500℉ 260℃ /

Storage

● Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

● Shelf life: 12 months from the date of manufacture when stored in initial packing.

Precaution Reminder

● Surface should be clean, dry, free of dust, oil or other contaminants.

● Proper pressure required by roller, hand or press when applying.

● Avoid repeat sticking to prevent adhesion decrease.

Notes

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
