Polyimide Tapes
Polyimide Tapes
Polyimide Tapes
Polyimide Tapes
Specifications
Brand Name :
khj
Model Number :
KD8016M
Certification :
TDS
Place of Origin :
China
MOQ :
100
Price :
38USD/1pcs
Payment Terms :
D/A, L/C, D/P, T/T
Delivery Time :
7 day
Packaging Details :
Thin film cardboard box
Description

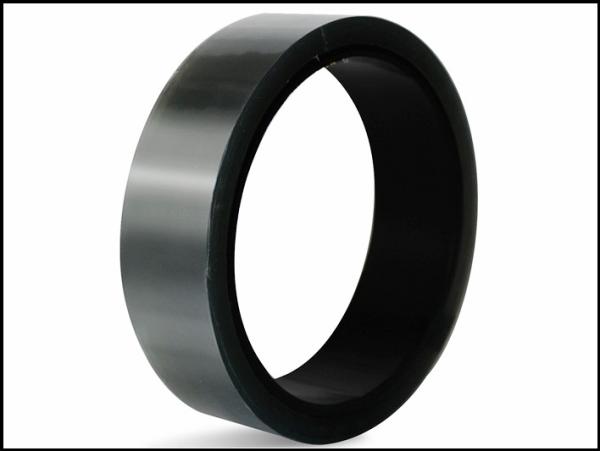

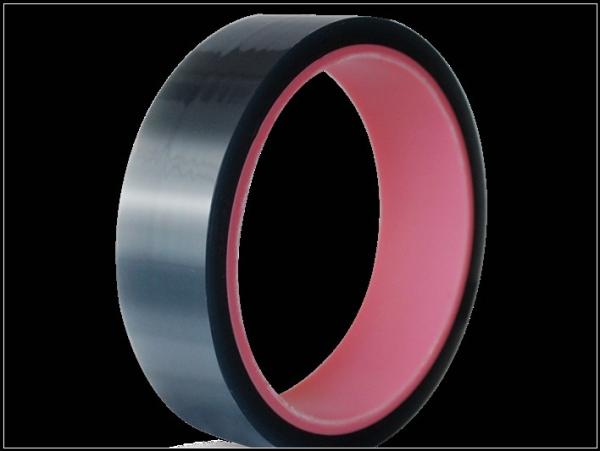

KD8016M is a polyimide film-backed Polyimide Tapes featuring superior heat resistance and extremely low electrostatic discharge properties, along with insulation Resistance on either side. Insulation Resistance of Adhesive Side can also be measured.

Polyimide Tapes

Features

Low Electrostatic Discharge during Unwind & Removal; Heat Resistant up to 290; Excellent Tensile Strength & Elongation properties are provided with this fabric.

Application


RoHS Compliant Solder Mask for Print Circuit Boards in Wave Sold or Reflow Soldering Process with no residue build up at high temperature.

Polyimide Tapes

Item Typical Value Test Method
Backing 0.025mm /
Total Thickness 0.045±0.005mm /
Adhesion to Steel 3N/25mm GBT 2792-2014
Tensile Strength ≥3.5 (KN/M) GBT 30776-2014
Elongation ≥45%
Surface Resistance 105-1010ohms /
Static Discharge <100V /
Operating Temperature 290℃

5min

Testing to Stainless steel plate

Storage

Store between 10- 30% relative humidity for optimal storage conditions (R.H). Avoid direct sunlight. Shelf Life of Initial Packaging When Stored Correctly is 12 months from Date of Manufacture.

Precaution Reminder
Packing surfaces must be free from dust, oil or any other contaminants before application by roller, hand or press. Adhesion reduction must also be prevented through repeated sticking processes by using roller, hand or press pressure and not repeat stickings.

Notes

Please be aware that this Technical Data Sheet was written based solely on our laboratory tests and experience, not your specific application requirements. Before considering use for any intended application requirements. It remains your responsibility as customer to evaluate this product based on intended application needs before authorizing use for such product.
