CTS Off-highway Equipment Electric Loader Agricultural Machinery 614.4V 282KWh Lifepo4 Battery
CTS Off-highway Equipment Electric Loader Agricultural Machinery 614.4V 282KWh Lifepo4 Battery
CTS Off-highway Equipment Electric Loader Agricultural Machinery 614.4V 282KWh Lifepo4 Battery
CTS Off-highway Equipment Electric Loader Agricultural Machinery 614.4V 282KWh Lifepo4 Battery
CTS Off-highway Equipment Electric Loader Agricultural Machinery 614.4V 282KWh Lifepo4 Battery
CTS Off-highway Equipment Electric Loader Agricultural Machinery 614.4V 282KWh Lifepo4 Battery
CTS Off-highway Equipment Electric Loader Agricultural Machinery 614.4V 282KWh Lifepo4 Battery
CTS Off-highway Equipment Electric Loader Agricultural Machinery 614.4V 282KWh Lifepo4 Battery
Specifications
Brand Name :
CTS Battery
Model Number :
CTS-LFP614105
Certification :
CE, UN38.3, MSDS
Place of Origin :
China
MOQ :
2 SETS
Price :
USD120-USD200/KWH
Payment Terms :
T/T,Western Union,L/C
Supply Ability :
6000 SETS/YEAR
Delivery Time :
60-70 DAYS
Packaging Details :
Plywood case
Battery Product :
614.4V 460Ah 282.6kWh
Application :
Electric Farm Tractor Agricultural BEVs Vehicle PEV, Electric tractor
Array Mode :
8 battery modules+ a PDU box
PDU Box :
Including EVCC, relays, master BMS, precharge resistor and fuses and other conponents
Charge Power :
Max 200kW cont. with liquid cooling
Charge Standard :
CCS1/CCS2 DC fast charging
Discharge Power :
282kW cont. 560kW peak for 30 sec
Description
CTS Off-highway Equipment Electric Loader Agricultural Machinery 614.4V 282KWh Lifepo4 Battery

NO.

Specification of 614.4V 460Ah 282.6KWh Lifepo4 Battery

1

Rated Voltage

614.4v

2

Rated Capacity

460Ah

3

Array Mode

2P 192S

4

Total Energy

282.6kWh

5

Continous Discharge Current

400A Max at 25℃

6

Peak Discharge Current

800A within 5s

7

Recommend Charge Current

Max 100A

8

Communicate Peotocol

CAN BUS

9

Dimension

8 modules in total

+a PDU box

10

Estimated Weight

about 1830kg

(without installation brackets)

11

IP Proetction

IP67

12

Cooling Method

Liquid Cooling

13

Heating Method

Charge PI Heating

14

Dimension with brackets

8*(L1060*W630*H240mm)

+a PDU (L500*W400*H300mm)

CTS Off-highway Equipment Electric Loader Agricultural Machinery 614.4V 282KWh Lifepo4 Battery
CTS Off-highway Equipment Electric Loader Agricultural Machinery 614.4V 282KWh Lifepo4 Battery

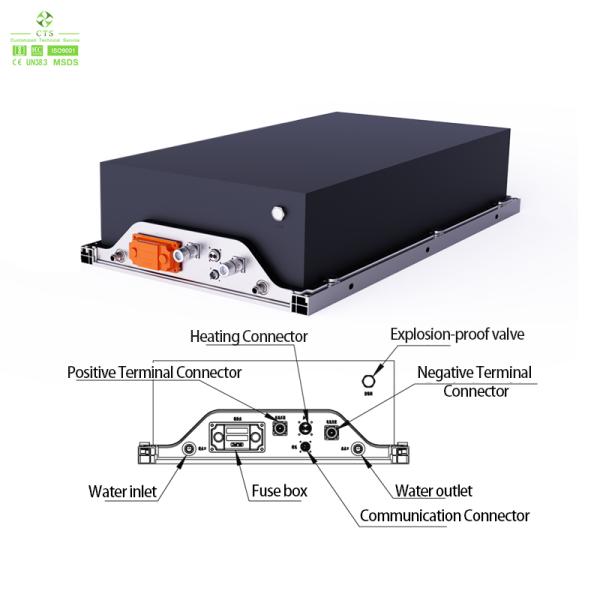

Standard EV Battery Module facts:

uD83DuDC77PACK System Core Technology uD83DuDC77Compact + Lightweight Design uD83DuDC77Patented Smart Thermal Liquid Technology uD83DuDC77Modular Design + Single Module Drivable uD83DuDC77The all parts in the module is standard parts which are molded parts uD83DuDC77Cell Core Technology uD83DuDC77Power type Li-ion battery has long cycle life and fast charging-discharging. It can keep the mobility of electric vehicles.

Why choose this Standard EV Battery Module?

✅SOC Calculation: Real time dynamic calibration Vehicle operation condition wasconsidered Multi-method combination High accuracy measurement of thecell Voltage /temperature/pack current Amount of data from experiment
✅Faults Diagnosis: Insulation & water leakage Cell voltage out of range High/low temperature Communication faults Contactor weld Power connection Temperature sensor faults
Electric vehicle lithium-ion battery - CTS battery
Electrical diagram of lithium battery system in standard box Two way high voltage input, doublegun charging Two way hight voltage output-water cooling compressor output; motor driving output;Single way low voltage output ,communicate with the whole vehicle!
