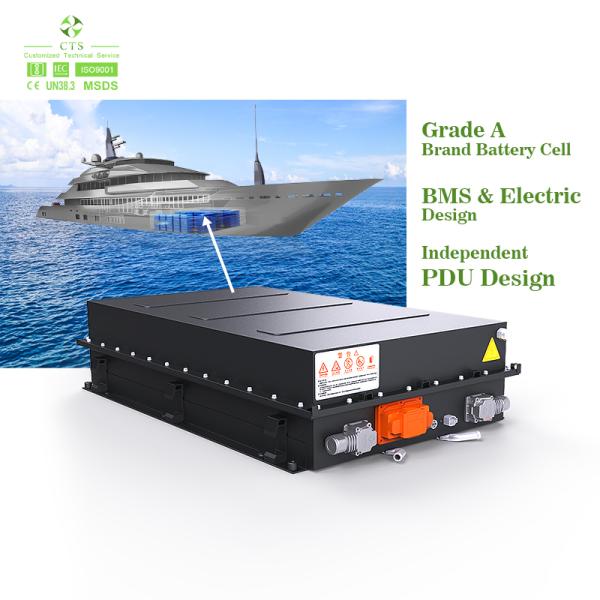

CTS Standard 614.4V 230Ah 141KWh Lifepo4 Marine Passenger Boat Lithium ion Battery
CTS Standard 614.4V 230Ah 141KWh Lifepo4 Marine Passenger Boat Lithium ion Battery
CTS Standard 614.4V 230Ah 141KWh Lifepo4 Marine Passenger Boat Lithium ion Battery
CTS Standard 614.4V 230Ah 141KWh Lifepo4 Marine Passenger Boat Lithium ion Battery
CTS Standard 614.4V 230Ah 141KWh Lifepo4 Marine Passenger Boat Lithium ion Battery
CTS Standard 614.4V 230Ah 141KWh Lifepo4 Marine Passenger Boat Lithium ion Battery
CTS Standard 614.4V 230Ah 141KWh Lifepo4 Marine Passenger Boat Lithium ion Battery
CTS Standard 614.4V 230Ah 141KWh Lifepo4 Marine Passenger Boat Lithium ion Battery
Specifications
Brand Name :
CTS Battery
Model Number :
CTS-LFP614105
Certification :
CE, UN38.3, MSDS
Place of Origin :
China
MOQ :
2 SETS
Price :
USD120-USD200/KWH
Payment Terms :
T/T,Western Union,L/C
Supply Ability :
6000 SETS/YEAR
Delivery Time :
60-70 DAYS
Packaging Details :
Plywood case
Battery Product :
614.4V 230Ah 141.3kWh

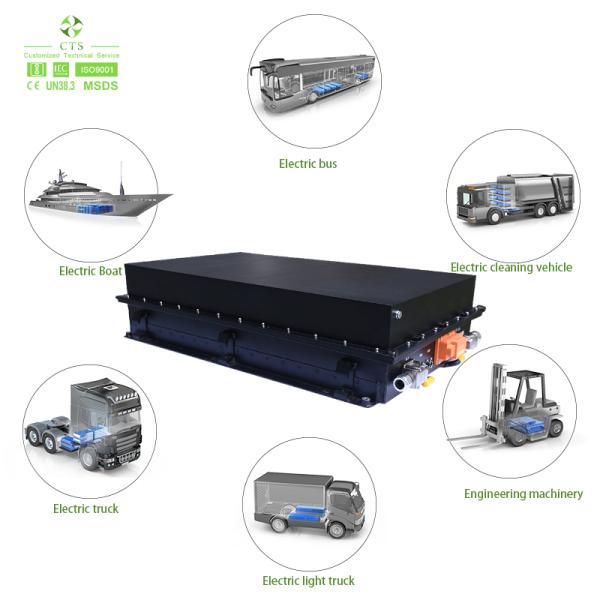

Application :
Battery-swapping Excavator, Ground support equipment, Vehicle and machinery electrification

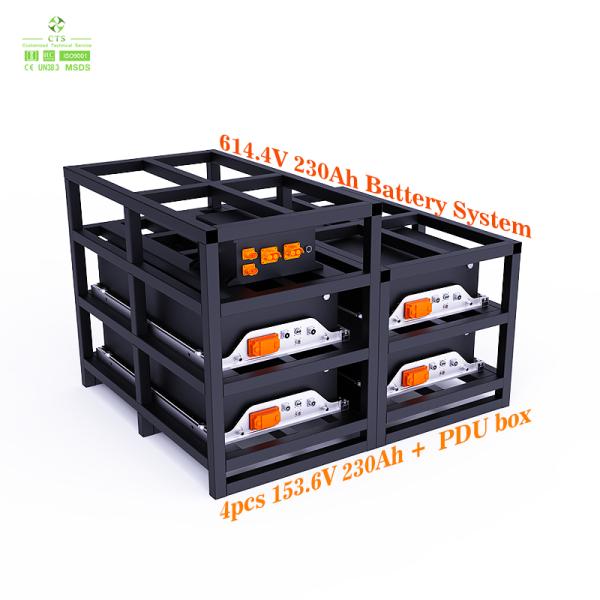

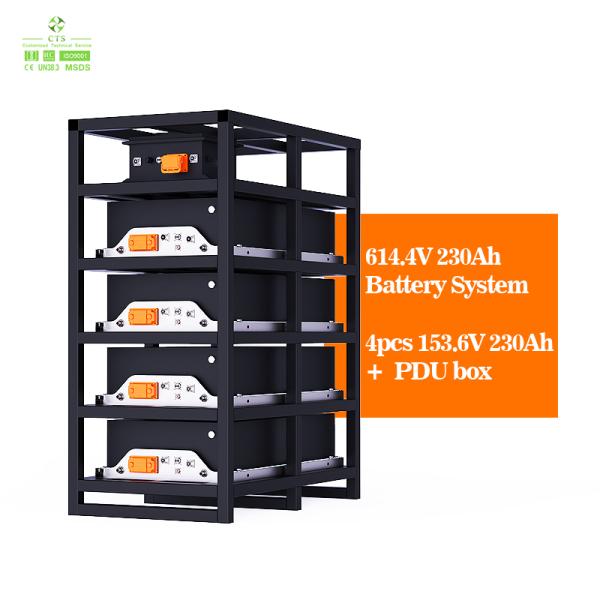

Array Mode :
4 battery modules+ a PDU box
PDU Box :
Including EVCC, relays, master BMS, precharge resistor and fuses and other conponents
Charge Power :
Max 140kW cont. with liquid cooling
Charge Standard :
CCS1/CCS2 DC fast charging
Discharge Power :
141kW cont. 282kW peak for 30 sec
Description
CTS Standard 614.4V 230Ah 141KWh Lifepo4 Marine Passenger Boat Lithium ion Battery

NO.

Specification

1

Rated Voltage

614.4v

2

Rated Capacity

230Ah

3

Array Mode

1P 192S

4

Total Energy

141.3kWh

5

Continous Discharge Current

230A Max at 25℃

6

Peak Discharge Current

500A within 5s

7

Recommend Charge Current

Max 100A

8

Communicate Peotocol

CAN BUS

9

Dimension

4 modules in total

+a PDU box

10

Estimated Weight

about 950kg

(without installation brackets)

11

IP Proetction

IP67

12

Cooling Method

Liquid Cooling

13

Heating Method

Charge PI Heating

14

Dimension with brackets

4*(L1060*W630*H240mm)

+a PDU (L500*W400*H300mm)

Standard EV Battery Module facts:

uD83DuDC77PACK System Core Technology uD83DuDC77Compact + Lightweight Design uD83DuDC77Patented Smart Thermal Liquid Technology uD83DuDC77Modular Design + Single Module Drivable uD83DuDC77The all parts in the module is standard parts which are molded parts uD83DuDC77Cell Core Technology uD83DuDC77Power type Li-ion battery has long cycle life and fast charging-discharging. It can keep the mobility of electric vehicles.

Why choose this Standard EV Battery Module?

✅SOC Calculation: Real time dynamic calibration Vehicle operation condition wasconsidered Multi-method combination High accuracy measurement of thecell Voltage /temperature/pack current Amount of data from experiment
✅Faults Diagnosis: Insulation & water leakage Cell voltage out of range High/low temperature Communication faults Contactor weld Power connection Temperature sensor faults
Electric vehicle lithium-ion battery - CTS battery
Electrical diagram of lithium battery system in standard box Two way high voltage input, doublegun charging Two way hight voltage output-water cooling compressor output; motor driving output;Single way low voltage output ,communicate with the whole vehicle!
