120kwh 150kwh 180kwh 500V 600V lithium ion lifepo4 battery pack with PDU for hybrid electric boat
120kwh 150kwh 180kwh 500V 600V lithium ion lifepo4 battery pack with PDU for hybrid electric boat
120kwh 150kwh 180kwh 500V 600V lithium ion lifepo4 battery pack with PDU for hybrid electric boat
120kwh 150kwh 180kwh 500V 600V lithium ion lifepo4 battery pack with PDU for hybrid electric boat
120kwh 150kwh 180kwh 500V 600V lithium ion lifepo4 battery pack with PDU for hybrid electric boat
120kwh 150kwh 180kwh 500V 600V lithium ion lifepo4 battery pack with PDU for hybrid electric boat
120kwh 150kwh 180kwh 500V 600V lithium ion lifepo4 battery pack with PDU for hybrid electric boat
120kwh 150kwh 180kwh 500V 600V lithium ion lifepo4 battery pack with PDU for hybrid electric boat
120kwh 150kwh 180kwh 500V 600V lithium ion lifepo4 battery pack with PDU for hybrid electric boat
120kwh 150kwh 180kwh 500V 600V lithium ion lifepo4 battery pack with PDU for hybrid electric boat
120kwh 150kwh 180kwh 500V 600V lithium ion lifepo4 battery pack with PDU for hybrid electric boat
120kwh 150kwh 180kwh 500V 600V lithium ion lifepo4 battery pack with PDU for hybrid electric boat
Specifications
Brand Name :
CTS
Model Number :
CTS523230
Certification :
CE/IEC/UL/MSDS/UN38.3/Rohs/R100
Place of Origin :
China
MOQ :
1
Price :
3800-7000
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS
Delivery Time :
40-50 working days
Packaging Details :
foam and wooden box by sea, UN box by air
Product name :
CTS 523V 230ah lifepo4 battery pack
Nominal voltage :
523V
Nominal capacity :
230ah
Dimension :
L1800*W500*H380mm
Color :
Black/white
Charging C rate :
0.5C
Count discharging rate :
2C
Peak discharging C rate :
3C/5S
Housing material :
304 stainless steel
Certificate :
CE/IEC/UL/MSDS/UN38.3/Rohs/R100
Description
120kwh 150kwh 180kwh 500V 600V lithium ion lifepo4 battery pack with PDU for hybrid electric boat

OEM/ODM

100% After-Sales Gurantee 100% Free Technical Support Fast Delivery
◆ Longer cycle life, more Powerful
◆ Built-in smart BMS monitor battery state
◆ Extremely safe, no explosion, no fire under collision
◆ Cooling and heating system optional
◆ Customized battery solutions base on yours requirements
◆ Excellent large current discharge performance
◆ Low self-discharge and good discharge performance at low temperatures
Compact and highly integrated PDU
including 12V, 24V, and 540V outputs, supporting up to 120kw CCS2 fast charging and 22kw OBC slow charging. The stainless steel 316 IP67 protection battery housing meet the ECER100.2 safety testing standard.
The Paramerters of 530V 230AH NMC battery pack
MODEL
CTS530230
Cell Type - Chemistry
Prismatic- NMC
Rated Capacity
230Ah
Rated Voltage
525.6V
Energy
120KWh
Resistance
30mΩ
Self Discharge
<3% per month
PDU
BMS, 400A relays, fuses, COM socket
Dimensions (L x W x H)
L1800*W500*H380mm
(Can make it smaller if you want)
Weight
600Kg
Enclosure Protection
IP67 stainless steel case
Discharge Cut-off Voltage
432V
Max Continuous Discharging Current
200A
Peak Discharge Current
400A for 60 seconds
Recommended Discharge Current
300A
Charging Limited Voltage
604V
Max Charging Current
200A
Recommended Charge Current
100A
Charge Temperature Range
0~50℃
Discharge Temperature Range
-20~60℃
Recommended Operating Temperature
15~35℃
Available on request
Size, C rate, Communication protocol

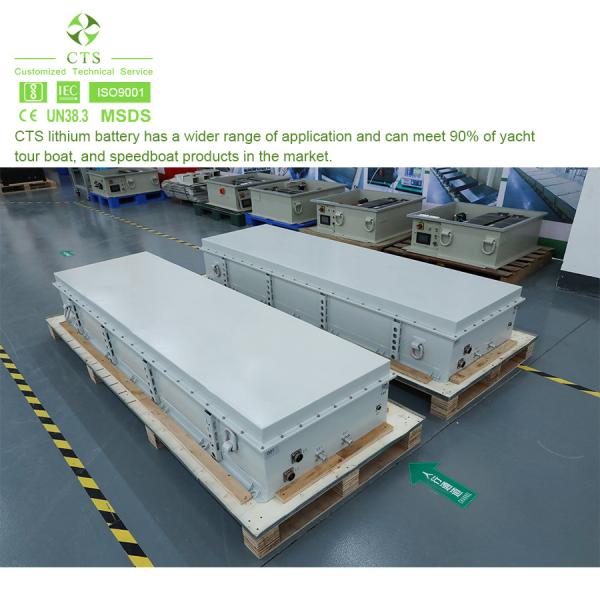

CTS lithium battery has a wider range of application and can meet 90% of yacht , tour boat, and speedboat products in the market,According to the size requirements of the ship, we can design and customize the matched
lithium battery system. CTS provides one-stop battery service. we also can provide OBC , charge piles etc
