Specifications
Brand Name :
CTS
Model Number :
Lifepo4 battery
Certification :
CE, UN38.3, MSDS
Place of Origin :
China
MOQ :
2
Price :
40000
Payment Terms :
T/T
Supply Ability :
60000unit/Year
Delivery Time :
50-60 days
Packaging Details :
Wooden case
Model NO. :
lithium ion battery
Voltage :
250~1500V
Cycle Life :
8000
Storage Temperature :
-30℃~55℃
Cooling Method :
Air Cooling/Liquid Cooling
Screen :
Touch Screen
Operating Temperature :
-20℃~50℃
Trademark :
OEM
Description
CTS 100kwh 215kWh LiFePO4 Battery Energy Storage System for Solar High Voltage Lithium Battery Pack
CTS 100kwh 215kWh LiFePO4 Battery Energy Storage System for Solar High Voltage Lithium Battery Pack CTS 100kwh 215kWh LiFePO4 Battery Energy Storage System for Solar High Voltage Lithium Battery Pack
Battery system parameters
Cell type LFP 3.2V280Ah LFP(3.2V314Ah)
Battery Pack Configuration 1P48S/43kWh 1P52S/52.25kWF
Battery system configuration P240S(5*1P48S) P416S(8*1P52S)
Rated voltage of the battery 768V 1331.2V
Battery voltage range 672V~864V 1164.8V~1497.6V
Nominal Energy (BOL) 215.04kWh 418kWh
Recommended Discharge depth 90% 90%
AC parameters
Rated power 100kW 200kW
Maximum output power 110kW 220kW
Rated grid voltage 400V 690V
Allow grid voltage -15%~10% -15%~15%
Rated grid frequency 50Hz/60Hz
AC current harmonics <3%
Communication access method three-phase and three-wire
Charge discharge conversion time <100ms
system parameters
System efficiency >88%
Charge discharge rate ≤0.5P
life cycles 8000
Protection iP54
Overvoltage protection DC Type 2 /AC Type 2
Thermal management Liquid cooling/Air cooling
Fire protection system Heptafluoropropane/Aerosol/Perfluorohexane/Water Firefighting (optional)
Working temperature range -20ºC~50ºC
Working humidity range 0~95%
Storage temperature range -30ºC~60ºC
Allowable altitude ≤3000m ≤3000m
noise ≤75dB ≤80dB
weight 2500kg 3500kg

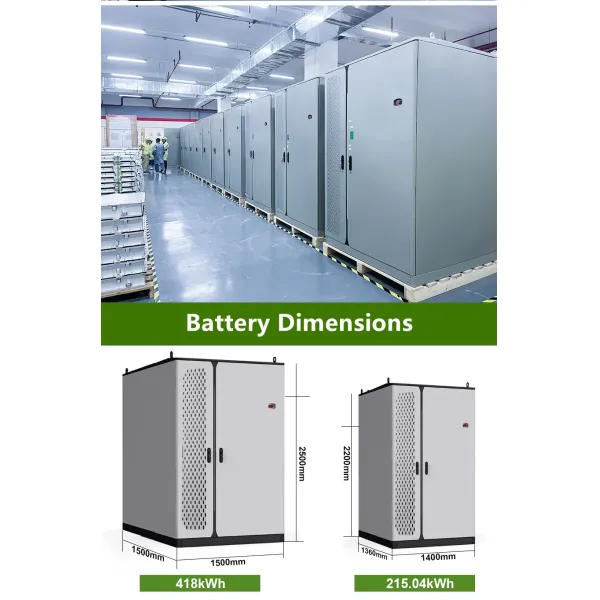

Dimensions (width * depth * height) 1400*1360*2200mm 1500*1500*2500mm
communication interface RS485/Ethernet/CAN
Communication protocol EC61850/Modbus RTU/Modbus TCP
CTS 100kwh 215kWh LiFePO4 Battery Energy Storage System for Solar High Voltage Lithium Battery Pack
Product Description
  1. High-Security

    Lithium iron phosphate batteries, module-level fire protection unit; system-level fire protection unit.

  2. Efficient and Balanced BMS Technology

    High-efficiency equalization technology to eliminate series loss; sampling chips are the lowest in the industry

  3. The Long Life cycle times

    The cycle time of the battery cell is more than 8000 times, and the service of the system can reach more than 15 years

  4. Efficient Thermal Management System

    Internally integrates a high-efficiency liquid cooling and liquid heating system, which can effectively ensure the consistency of the single cells.

  5. Easy Installation

    Standardized product design and installation are extremely simplified, and user deployment is convenient.

CTS 100kwh 215kWh LiFePO4 Battery Energy Storage System for Solar High Voltage Lithium Battery Pack CTS 100kwh 215kWh LiFePO4 Battery Energy Storage System for Solar High Voltage Lithium Battery Pack CTS 100kwh 215kWh LiFePO4 Battery Energy Storage System for Solar High Voltage Lithium Battery Pack

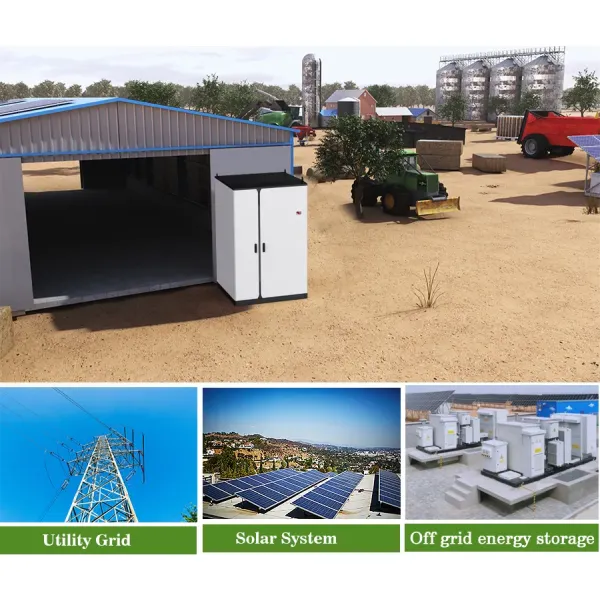

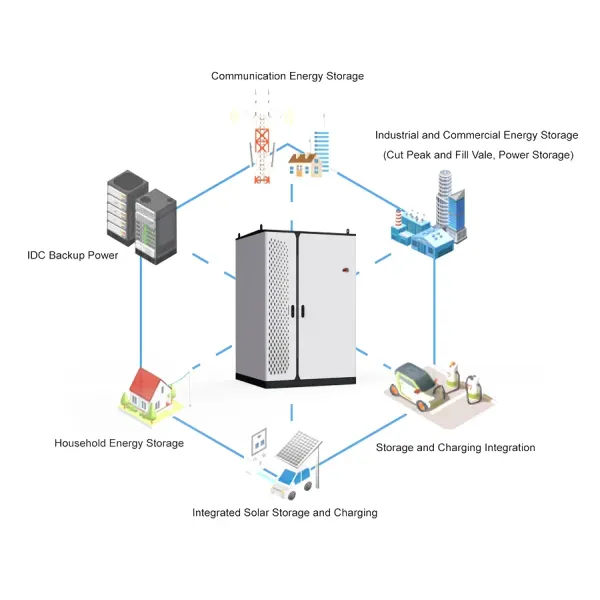

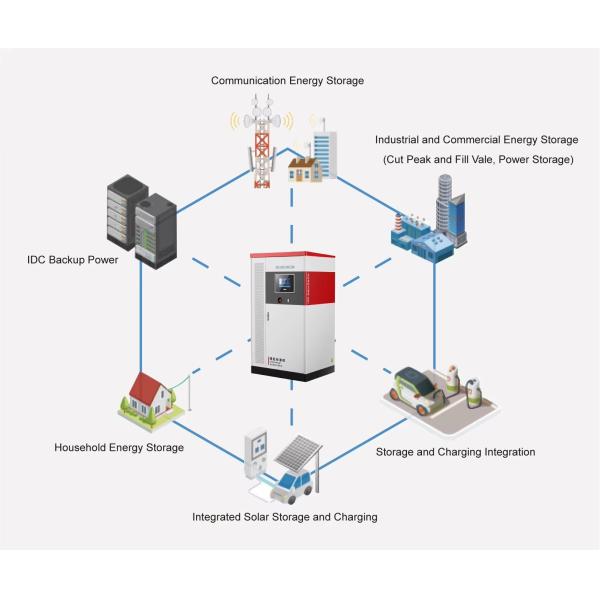

Application

Compared with traditional batteries, the CTS high-voltage lithium battery energy storage system has a wide range of performance and application advantages. The leading lithium battery technology, BMS technology, and system design capabilities will bring excellent performance and reliability, while also providing the best solution for industrial applications.

  1. Government departments, banks, finance, and other important departments need an uninterrupted power supply.
  2. Colleges and universities, scientific research institutes, etc.
  3. Stations, docks, airports, etc.
  4. Enterprises and business centers with an unstable power supply.
  5. Outlying islands and remote mountainous areas, pastoral areas, etc.
  6. Solar energy and wind energy are complementary systems.
  7. Electric vehicle charging and changing power stations, various parking lots, residential areas, commercial centers, and other places.
CTS 100kwh 215kWh LiFePO4 Battery Energy Storage System for Solar High Voltage Lithium Battery Pack CTS 100kwh 215kWh LiFePO4 Battery Energy Storage System for Solar High Voltage Lithium Battery Pack CTS 100kwh 215kWh LiFePO4 Battery Energy Storage System for Solar High Voltage Lithium Battery Pack
Company Profile

Hunan CTS, established in 2011, is a manufacturer specializing in the R & D, production, sales, and service of lithium battery cells and lithium battery packs, focusing on one-stop customized lithium battery products, such as electric vehicle batteries, electric truck batteries, electric boat batteries, energy storage battery systems, mobile charging station etc...

With a Twenty-People R& D team that has rich experience, CTS focuses on power battery customization for middle and high-end markets by selecting first-grade lithium cells with high energy density. We always followed Strict quality control to ensure the higher quality of products. With the concept of "customers the first, quality the life", we strictly follow the I S O 9 0 0 1 and IATF 16949 management system through the production of every detail, each battery must be strictly tested before its delivery. Our battery products sell well in all cities and provinces around China, also exported to multiple countries around the world, such as America, Australia, Canada, Italy, U K, Germany, South Korea, Thailand, etc. Our battery products are approved for MSDS, UN38.3, CE, and IEC 62619 certifications...

Adhering to the business principle of mutual benefits, we have had a reliable reputation among our customers because of our professional services, quality products, and competitive prices. If you have any battery inquiries, please feel free to contact us. We are glad to work together with you and finally bring you satisfactory products.
