CTS 36V 48V 72V 100Ah 105Ah 200Ah LiFePO4 Lithium golf cart battery with Smart Bluetooth BMS For LSV NEV Off-road Golf Cart
CTS 36V 48V 72V 100Ah 105Ah 200Ah LiFePO4 Lithium golf cart battery with Smart Bluetooth BMS For LSV NEV Off-road Golf Cart
CTS 36V 48V 72V 100Ah 105Ah 200Ah LiFePO4 Lithium golf cart battery with Smart Bluetooth BMS For LSV NEV Off-road Golf Cart
CTS 36V 48V 72V 100Ah 105Ah 200Ah LiFePO4 Lithium golf cart battery with Smart Bluetooth BMS For LSV NEV Off-road Golf Cart
Specifications
Brand Name :
CTS
Model Number :
CTS-LR51100
Certification :
UN 38.3 & CE (Battery)/ UL1642 (Cells) (FILE# MH64443)/IEC62133 (Cells)
Place of Origin :
Hunan,China
MOQ :
2
Payment Terms :
L/C,T/T,D/P,D/A
Delivery Time :
35 days
Packaging Details :
Wooden case and Carton case
Cell Type - Chemistry :
lifepo4
Rated Capacity :
105Ah
Rated Voltage :
36V/48V
Energy :
3.7kWh/5.04kWh
Weight :
about 35Kg
Max Continuous Discharging Current(@25℃) :
100 (25℃)
Max Charging Current(@25℃) :
100
Discharge Temperature Range :
-20~60℃
Peak Discharge Current(@25℃) :
560A for 30 seconds
Cooling Method :
Build in Pi heating film, Build in liquid cooling plate
Cycle life :
>3000cycles(90%DOD, 0.5C)
IP Proetction :
IP65
Recommended Charge Voltage (V) :
41~42
Recommended Charge Currentt (A) :
50
Max. Pulse Discharge Current (A) :
150 (30s)
Max. Instantaneous Discharge Current (A) :
350 (3s)
Charge Range :
0℃~55℃
Discharge Range :
-20℃~60℃ Storage Range -5℃~35℃
Storage Range :
-5℃~35℃
Communication :
RS485/Bluetooth
Cycle Life :
>4000 times, 0.5C, 80% DOD 25°C
Oem/odm :
Available
Warranty :
5 years
Description
Product Description

CTS LiFePO4 lithium golf cart battery offers 36V/48V/72V voltage options and 100Ah/105Ah/200Ah capacity configurations, specifically designed for LSV, NEV, and off-road golf carts. Equipped with a smart Bluetooth BMS, it combines long cycle life, high safety, and convenient monitoring—making it the ideal replacement for traditional lead-acid batteries for golf cart electrification upgrades.

CTS 36V 48V 72V 100Ah 105Ah 200Ah LiFePO4 Lithium golf cart battery with Smart Bluetooth BMS For LSV NEV Off-road Golf Cart
Key Benefits

  1. Long Cycle Life & Durability
    LiFePO4 cells deliver 2000+ cycles (80% capacity retention), 5-8 times longer than lead-acid batteries, reducing long-term operating costs.

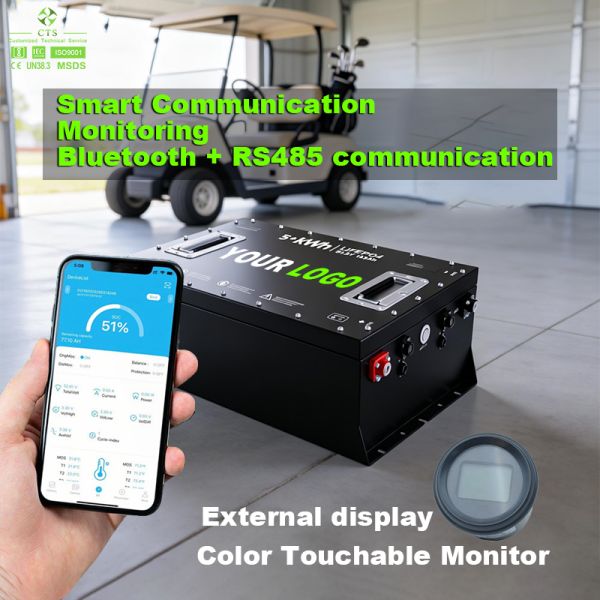

  2. Smart Bluetooth BMS Monitoring
    Built-in Bluetooth-connected BMS supports real-time tracking of voltage, current, remaining capacity, and temperature via mobile APP. It prevents overcharge/over-discharge/short-circuit risks for remote battery management.

  3. Multi-Voltage & Capacity Compatibility
    Available in 36V/48V/72V and 100Ah-200Ah, compatible with 3kW-10kW golf cart motors. Customizable dimensions fit original battery compartments.

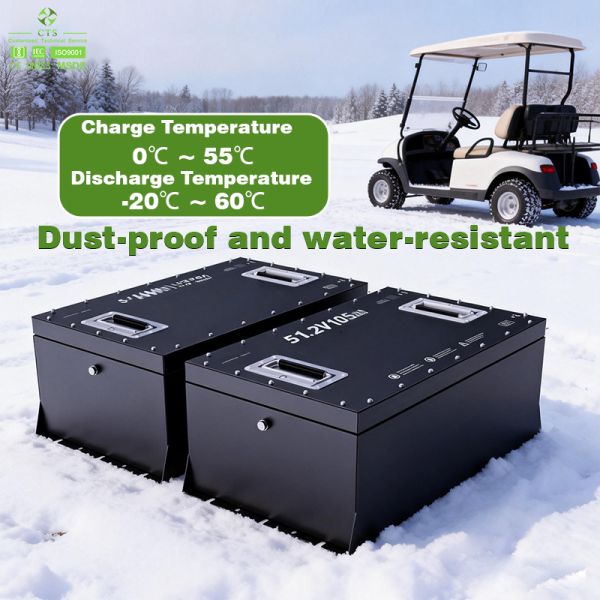

  4. High Safety & Environmental Adaptability
    UL/UN38.3 certified, operating in -20℃ to 60℃ temperatures with IP65 waterproof rating—suitable for off-road golf cart scenarios.

  5. Lightweight & Easy Installation
    1/3 the weight of lead-acid batteries of the same capacity. Plug-and-play design fits most golf cart frames without modification.

Applications
  • Standard Golf Carts
  • Low Speed Vehicles (LSV)
  • New Energy Vehicles (NEV)
  • Off-road Golf Carts
  • Golf Course Patrol/Sightseeing Vehicles
Battery Type LiFePO4
Rated Capacity 105Ah/others
Rated Voltage 36V/48V/60V/72V/others
Dimensions (L x W x H) L460*W320*H245mm
Recommended Charge Current (A) 50
Max. Continuous Discharge Current (A) 100 (25℃)
Communication RS485/Bluetooth
Cycle Life >4000 times, 0.5C, 80% DOD 25°C
Protection Level IP65
Certification UN 38.3 & CE (Battery)/UL1642 (Cells) (FILE# MH64443)/IEC62133 (Cells)
Available on request Size, C rate, Communication protocol
