LOW VOLTAGE PLATFORM VEHICL 15kw ELECTRIC DRIVE SYSTEM
LOW VOLTAGE PLATFORM VEHICL 15kw ELECTRIC DRIVE SYSTEM
LOW VOLTAGE PLATFORM VEHICL 15kw ELECTRIC DRIVE SYSTEM
LOW VOLTAGE PLATFORM VEHICL 15kw ELECTRIC DRIVE SYSTEM
LOW VOLTAGE PLATFORM VEHICL 15kw ELECTRIC DRIVE SYSTEM
LOW VOLTAGE PLATFORM VEHICL 15kw ELECTRIC DRIVE SYSTEM
LOW VOLTAGE PLATFORM VEHICL 15kw ELECTRIC DRIVE SYSTEM
LOW VOLTAGE PLATFORM VEHICL 15kw ELECTRIC DRIVE SYSTEM
LOW VOLTAGE PLATFORM VEHICL 15kw ELECTRIC DRIVE SYSTEM
LOW VOLTAGE PLATFORM VEHICL 15kw ELECTRIC DRIVE SYSTEM
LOW VOLTAGE PLATFORM VEHICL 15kw ELECTRIC DRIVE SYSTEM
LOW VOLTAGE PLATFORM VEHICL 15kw ELECTRIC DRIVE SYSTEM
Specifications
Brand Name :
CTS
Model Number :
CTS1530
Place of Origin :
CHINA
MOQ :
2
Price :
3000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500 units per month
Delivery Time :
60 working days
Packaging Details :
wooden box
Motor type :
Permanent Magnet Synchronous Motor
Rated/peak power :
15/30kw
Rated/peak torque :
36/140Nm
Rated/peak speed :
4000/7000rpm
Weight :
30.5kg

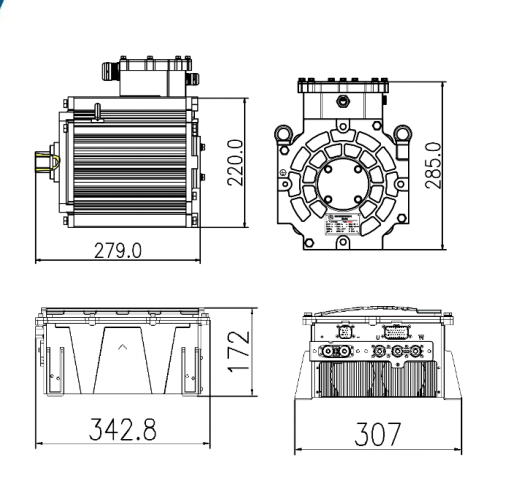

Outline dimension :
279x220x285mm
Motor controller input voltage range :
80~180VDC

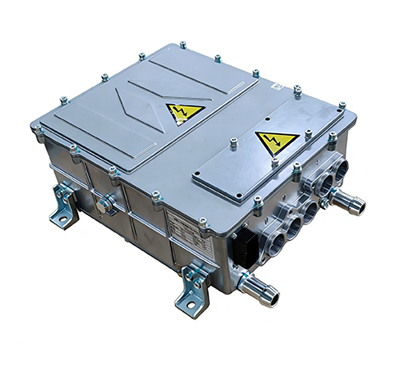

Controller weight :
9kg
ControllerOutline dimension :
343x307x172mm
Efficiency :
95%
Cooling method :
Air cooled
IP Rating :
IP68
Ambient temperature :
-40~+85℃
Description

LOW VOLTAGE PLATFORM VEHICL 15kw ELECTRIC DRIVE SYSTEM

High-Efficiency Integration · Powerful Performance · Lifetime Reliability

This product is a high-performance permanent magnet synchronous electric drive system specifically designed for low-voltage electric platforms (48V–96V), featuring a rated power of 15 kW. Integrating an advanced motor with an intelligent controller, the system distinguishes itself through core advantages such as high power density, a wide high-efficiency operating range, and robust environmental adaptability. It is widely applied in electric logistics vehicles, site sightseeing vehicles, sanitation trucks, forklifts, and various types of specialized engineering vehicles.


1, Advanced mechanical stress, thermo, insulation, protection check design of electrical drive system.
2, High efficiency, green-energy, environmentally friendly, system efficiency up to 95%.
3, The permanent magnet synchronous motor is small in size, light weight and high power density.
4, Product reliability and durability meet the needs of whole life cycle of vehicle.
5, Direct drive motor design low noise, good ride.
LOW VOLTAGE PLATFORM VEHICL 15kw ELECTRIC DRIVE SYSTEM
LOW VOLTAGE PLATFORM VEHICL 15kw ELECTRIC DRIVE SYSTEM
LOW VOLTAGE PLATFORM VEHICL 15kw ELECTRIC DRIVE SYSTEM
LOW VOLTAGE PLATFORM VEHICL 15kw ELECTRIC DRIVE SYSTEM

Application Areas
Electric Mini-Trucks / Logistics Vehicles

Scenic Area Sightseeing Vehicles / Patrol Vehicles

Electric Forklifts / Tow Tractors

Sanitation and Cleaning Equipment

Auxiliary Drives for Construction Machinery
