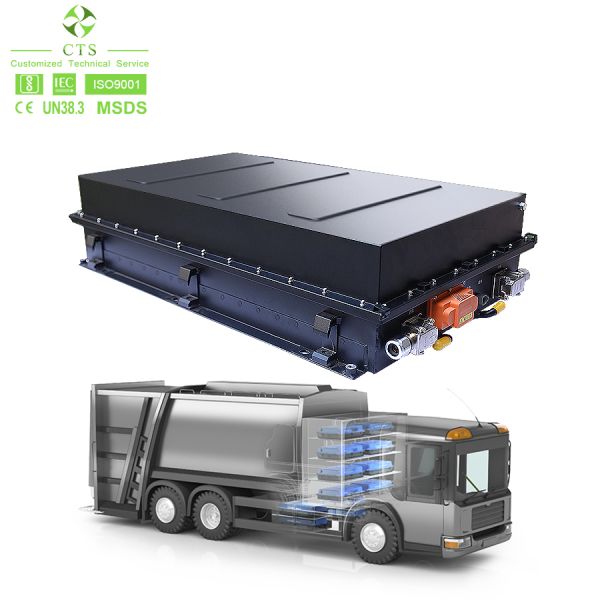

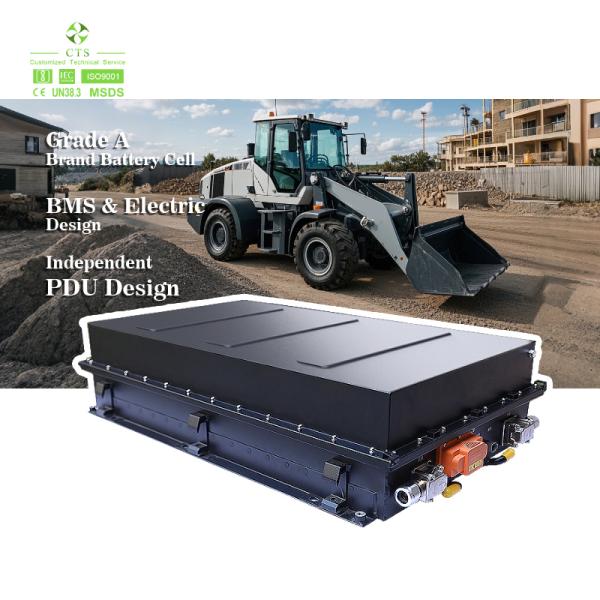

High Voltage LFP EV Battery Pack 100KWH 614V with IP67 Waterproof for Electric Tractors
High Voltage LFP EV Battery Pack 100KWH 614V with IP67 Waterproof for Electric Tractors
High Voltage LFP EV Battery Pack 100KWH 614V with IP67 Waterproof for Electric Tractors
High Voltage LFP EV Battery Pack 100KWH 614V with IP67 Waterproof for Electric Tractors
High Voltage LFP EV Battery Pack 100KWH 614V with IP67 Waterproof for Electric Tractors
High Voltage LFP EV Battery Pack 100KWH 614V with IP67 Waterproof for Electric Tractors
High Voltage LFP EV Battery Pack 100KWH 614V with IP67 Waterproof for Electric Tractors
High Voltage LFP EV Battery Pack 100KWH 614V with IP67 Waterproof for Electric Tractors
Specifications
Brand Name :
CTS
Model Number :
CTS153230
Certification :
UN38.3, MSDS, CE
Place of Origin :
China
MOQ :
2
Price :
5000-10000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000 unit per month
Delivery Time :
45 working days
Packaging Details :
wooden box
Battery Energy :
100KWH
Customized :
Acceptable
Battery Voltage :
614
Oem :
Acceptble
Water Proof :
IP67
Warranty_Period :
3 years
Cell Brand :
EVE/GOTION
Insulation Resistance :
≥50MΩ
Safety_Features :
Overcharge protection, thermal management, short circuit protection
Working Temperature Range :
-20~55℃
Battery :
Lifepo4
Description

High Voltage Electeric Tractor LFP 400V 500V 100KWH Battery Pack for EV


Standard electric vehicle battery modules for buses and heavy-duty trucks support systems up to 600 kWh.

✅ Multiple voltage and capacity options:

Supports up to 12 modules (4S3P) connected in one system.

The following modules are available for flexible connection, up to 656V, 600 kWh.

✅ Longer lifespan: A redesigned liquid cooling system improves thermal consistency and extends lifespan.

✅ Safer electric vehicle battery modules:

Reliable LifePO4 batteries with a multi-level safety system.


A detailed battery soltuion for 614V 230AH battery as following


Using a standard 153.6V 230AH C-type battery box, 4S2P=614V 460AH=282.4kWh, the battery system consists of two parallel battery clusters, each cluster being 614V 230AH. It supports 0.5C charging, 20kW diesel generator charging, continuous 280kW discharge at 25℃, peak 560kW/10s, PI charging heating, liquid cooling plate, and supports both liquid cooling and liquid heating. It features an external PDU (304 stainless steel casing), BMS + 600A relay, and supports national standard fast charging. The PDU dimensions are 550*500*240mm, and it weighs 22kg. The price includes 2 meters of series wiring between batteries and 2 meters of external battery wiring (3 charging, 2 discharging, 1 DC-DC, 1 liquid cooling, and 1 communication harness), along with one CAN card.
