Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm
Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm
Specifications
Brand Name :
TengTian
Model Number :
HG219
Certification :
BV,CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
$100000 to $1 million
Payment Terms :
L/C,T/T
Supply Ability :
21 sets per year
Delivery Time :
150 days
Packaging Details :
plastic film winding, wooded case for electric components
Product Name :
Q235 Carbon Steel Pipe Making Machine For Round Pipes
Coild :
Q235
Diameter :
219mm(max.)
Thickness :
6mm
Length :
6-9M
Weight :
8 Tons
cutter :
hot saw
Runout Table :
18M
Key Word :
Carbon Steel Pipe Making Machine For Round Pipes
Description
Q235 Carbon Steel Pipe Making Machine For Round Pipes
Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm
Product Specifications
Attribute Value
Product Name Q235 Carbon Steel Pipe Making Machine for Round Pipe Various Size
Coil Q235
Diameter 219mm (max.)
Thickness 6mm
Length 6-9M
Weight 8 Tons
Cutter Hot saw
Runout Table 18M
Product Description

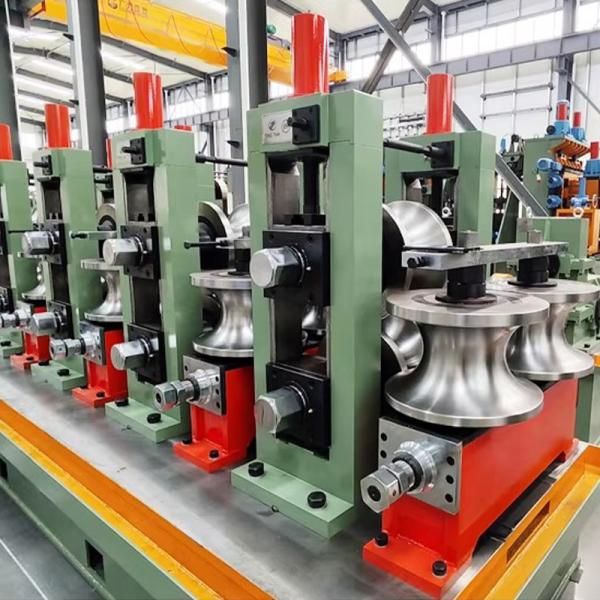

This Q235 Carbon Steel Pipe Making Machine is designed to produce high-quality welded steel pipes, including round, square, and rectangular pipes. Featuring advanced roll pass design, the production line ensures precise machining and high-quality assembly.

Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm

Material Specifications
  • Standard: Conforming to YB189-64 standard
  • Material: Low carbon steel and low alloy steel, Q235
  • Strip Width: 320-700mm
  • Strip Thickness: 1.5-6.0mm
  • Inner Diameter of Coils: φ470～φ510mm
  • Outer Diameter of Coils: Φ1000～φ1800mm
  • Coil Weight: ≤8T
Pipe Specifications
  • Pipe Size:
    • Round Pipe: ø89-219mm
    • Square Pipe: 80x80 - 175x175mm
    • Thickness: 1.5-6.0mm
  • Length: 6m
  • Forming Speed: 20-50 m/min
  • Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm
Buyer-Supplied Requirements
  • Total capacity: Around 850 kw
  • Circulation Cooling Water (whole system):
    • Flow: 20T/h～30 T/h
    • Pool Volume: 30m³
  • Compressed Air (whole system):
    • Flow: 5m³/min
    • Pressure: 5-7kg/㎡
  • Cable: All cables outside of the machine must be purchased after machine installation

Note: We typically send 2-3 engineers to perform installation and commissioning. The buyer is responsible for providing round-trip tickets, food & accommodation, local transportation, and a technical service fee of $150 per day per engineer.

Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm

Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm

Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm

Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mmQ235 Carbon Steel Pipe Making Machine for Round Pipes 219mm

Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm

Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm

FAQ :

Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.

Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm

Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.

Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system

Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
