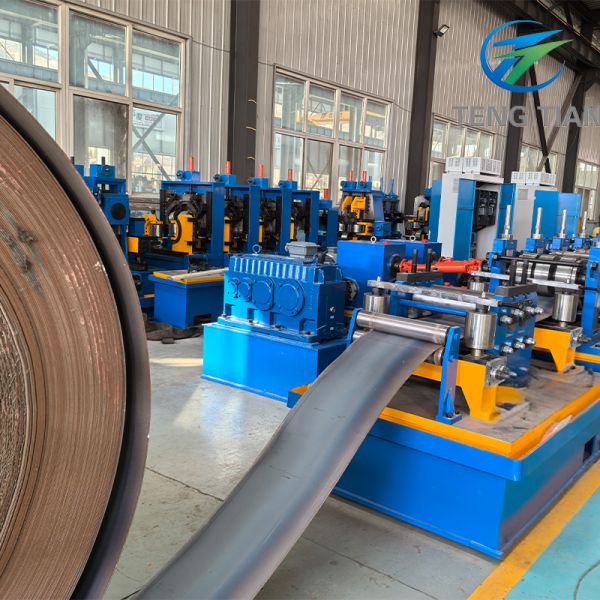

This production line manufactures welded steel pipes of Φ32mm-Φ140mm with 1.0mm-5.0mm wall thickness, capable of producing square pipes from 25*25mm to 110*110mm. Incorporating advanced pipe-making technology from domestic and international sources, our innovative design offers both economic and practical advantages.

• Produces longitudinal weld seam tubes and pipes from steel strips of specific widths
• Process begins with uncoiling and flattening slitted steel coils into strips
• Forming machine with roller tooling shapes strips into round pipes
• High frequency solid state welder joins the seams in the weld box
• Sizing machine forms tubes to final dimensions before cutting and bundling

• High precision: Level roller jumps 0.01, frame/slide clearance ≤0.02, frame verticality ≤0.05, frame parallelism ≤0.1, diameter/roundness error ≤0.08
• Japanese technology meets high accuracy requirements for international clients
• Worm gear adjustment provides precise, energy-efficient operation
• 3D adjustable scraping system with ±20° rotation capability
• Turkish head push square forming reduces mold weight while maintaining stability and uniform R angles
• Nylon damping blocks minimize impact on shafts and bearings

• Scroll up

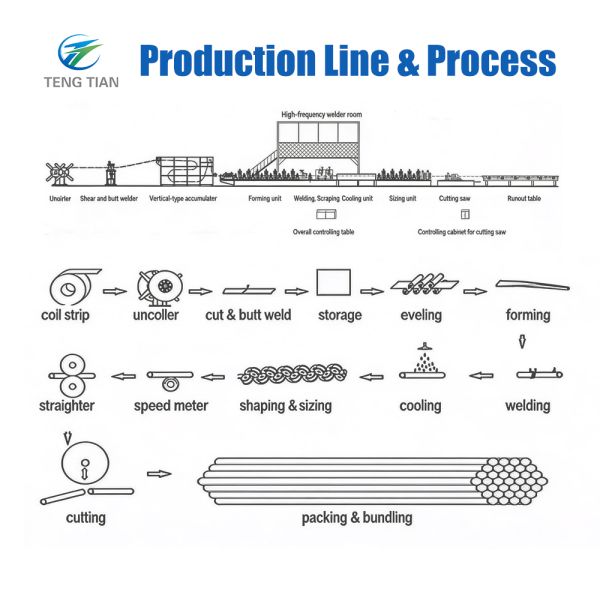

• Uncoil
• Flattening
• End Shear & Butt Welding
• Accumulator
• Forming
• High-frequency induction welding
• Removing external burr
• Cooling
• Sizing
• Cutting
• Checking & Collecting
• Accessing Warehouse

• On-site engineer support for installation and operator training
• One year quality guarantee with lifetime repair support
• Comprehensive pre-sales and after-sales service including workshop design and production output planning
• Option for extended engineer support (several months to 1 year) to optimize output and reduce waste
• Complete project design services for stainless steel and carbon steel pipe production
• Full responsibility for loading and shipping arrangements
