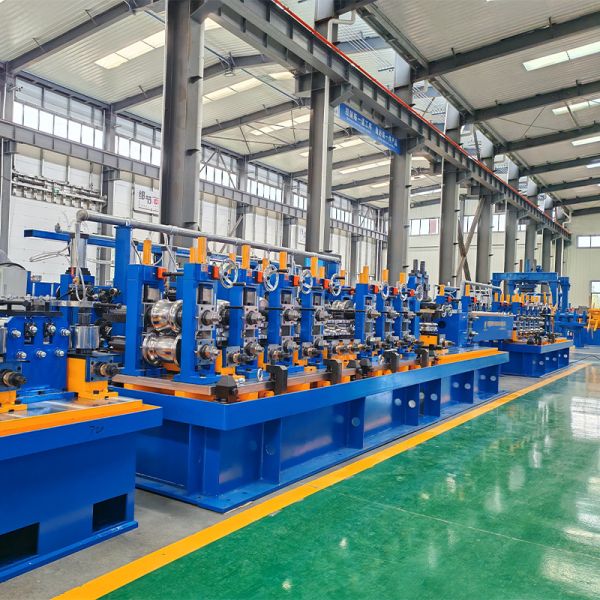

High Frequency Welding Automatic Tube Mill
High Frequency Welding Automatic Tube Mill
Specifications
Brand Name :
TengTian
Model Number :
HG600
Certification :
CE, ISO9001, BV
Place of Origin :
Hebei
MOQ :
1 Set
Price :
$100000 to $1 million
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Year
Delivery Time :
120 work days
Packaging Details :
Export waterproof and Seaworthy packing.
Product name :
High Frequency Welding Automatic Tube Mill
Tube shape :
square and rectangular
Equipment Specification :
customer specified
Forming method :
Roller Squeeze
Welding method :
High frequency induction welding
speed :
80 m/min
Warranty :
One year
Material :
Low carbon HRC
Forming type :
direct forming
Work shop :
120 x 10 m, H＞7m ( crane to ground )
key words :
Automatic Tube Mill
Description
High Frequency Welding Automatic Tube Mill
Product Specifications
Attribute Value
Tube shape Square and rectangular
Equipment Specification Customer specified
Forming method Roller Squeeze
Welding method High frequency induction welding
Speed 80 m/min
Warranty One year
Material Low carbon HRC
Forming type Direct forming
Work shop 120 x 10 m, H＞7m (crane to ground)
Product Overview

This high frequency straight seam welded pipe production line processes steel belt through a roll system to form tube billets. Using high frequency proximity and skin effects, it instantaneously heats strip edges to welding temperature, completing the weld through squeezing rollers. The process includes water cooling, sizing, and straightening to produce precision steel pipes.

The equipment combines domestic and international technology with innovative design for convenient operation and maintenance. With high machining quality and assembly precision, it produces electric welded steel pipes with exceptional accuracy.

Equipment Components
  • Loading car
  • Uncoiler
  • Straightener unit
  • Flattener unit
  • Automatic Shear & Welder
  • Accumulator
  • Forming & Sizing
  • Cold saw / Milling saw / Flying saw
  • Transit roller + Unloading Rack
  • Automatic palletizing machine
  • Roller
  • High frequency welder
High Frequency Welding Automatic Tube Mill
Technical Specifications
Model Side Length Range Thickness Production Speed (m/min) Motor Power (KW) Mechanical Area (m³)
HG20 6×6 - 16×16 mm 0.3-1 mm 30-120 55 7×50
HG32 9×9 - 25×25 mm 0.3-2.0 mm 30-120 75 7×50
HG50 12×12 - 40×40 mm 0.8-2.5 mm 30-110 110 7×60
HG60 15×15 - 47×47 mm 0.8-3 mm 30-100 132 7×65
HG76 9×9 - 60×60 mm 1-3 mm 30-100 320 8×80
HG89 25×25 - 70×70 mm 1-4 mm 30-80 350 8×80
HG114 35×35 - 89×89 mm 1.5-5.0 mm 30-60 400 10×100
HG165 47×47 - 129×129 mm 3-7 mm 30-50 600 10×110
HG219 89×89 - 172×172 mm 4-8 mm 20-40 800 12×150
HG273 89×89 - 214×214 mm 4-10 mm 15-30 1000 18×160
HG325 129×129 - 255×255 mm 4-12 mm 10-30 1200 18×180
HG426 129×129 - 335×335 mm 4-16 mm 8-25 1400 18×180
HG508 172×172 - 400×400 mm 4-20 mm 8-20 2000 21×180
Recent expansion projects: HG600 for square pipes (max 600×600mm) and HG765 for round pipes (max 765mm diameter).
Quality Assurance & Service

Pre-sales service: We provide equipment photos before shipment and offer remote guidance for installation if travel restrictions apply. When possible, we send engineers for on-site commissioning (1 month duration).

After-sales service: 12-month warranty covering parts replacement for manufacturing defects under normal operation conditions. Technical support includes equipment commissioning, maintenance training, and operational guidance.
